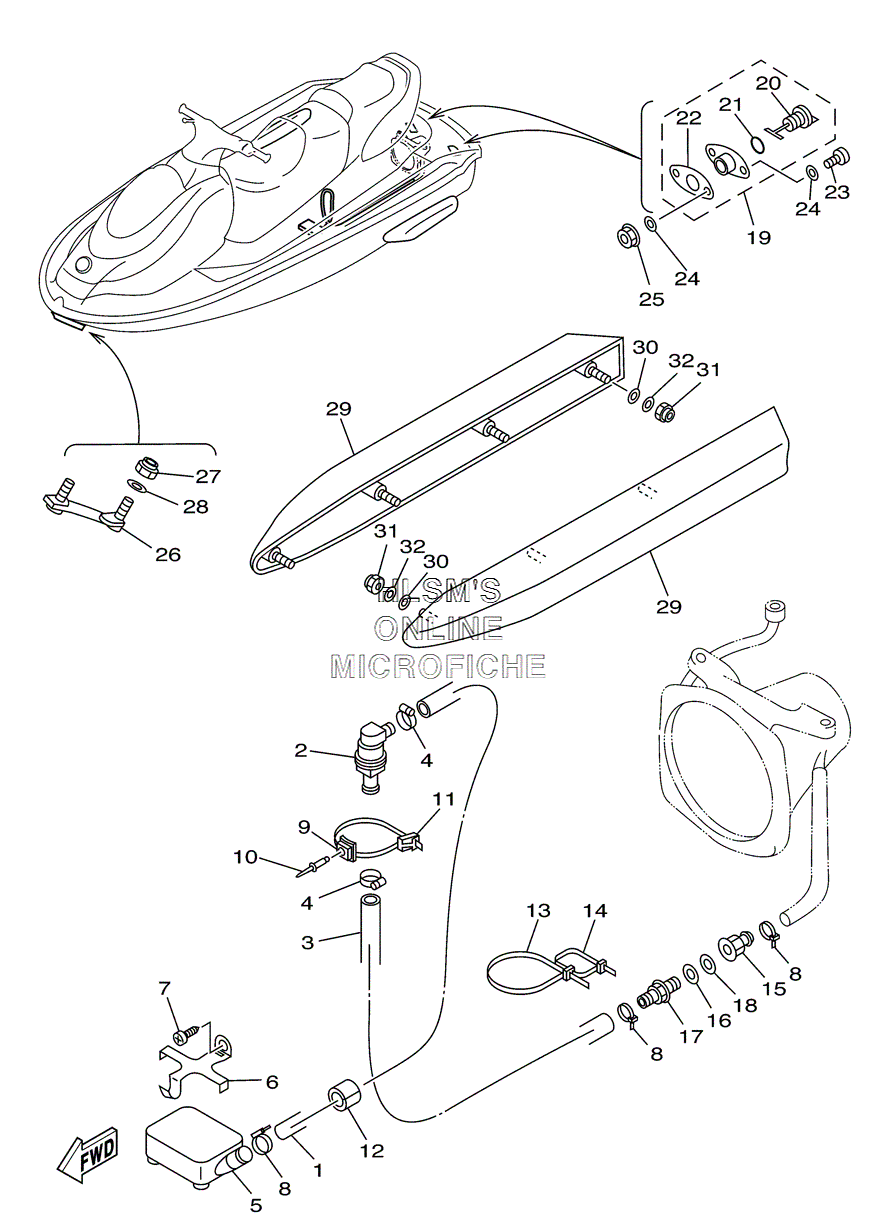

HULL FITTINGS W/ SPONSONS для Yamaha XL700 WAVERUNNER - 2004 года выпуска`
-
№АртикулНазвание
-
190445-19895-00 HOSE (L720)HOSE (L720)
-
268N-5112T-00-00 JOINT, HOSEJOINT, HOSE
-
390445-19896-00 HOSE (L500)HOSE (L500)
-
490601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
5GD0-U761D-00-00 STRAINER, BILGESTRAINER, BILGE
-
6EW2-67618-00-00 BASE, STRAINER BLIGEBASE, STRAINER BLIGE
-
79778R-50112-00 SCREW, TAPPINGSCREW, TAPPING
-
890601-200U1-00 BANDBAND
-
990600-91736-00 CLAMP COMP.CLAMP COMP.
-
1090267-489U7-00 RIVET, BLINDRIVET, BLIND
-
1190464-32801-00 CLAMPCLAMP
-
12GJ1-U7578-11-00 PACKING, HOSE 2PACKING, HOSE 2
-
1390601-20016-00 BANDBAND
-
1490601-200U4-00 BANDBAND
-
1590604-80759-00 CONNECTION, THRU-HULL 1/4CONNECTION, THRU-HULL 1/4
-
1690430-13909-00 GASKETGASKET
-
1790604-80775-00 THROUGH, HULL CONNECTIONTHROUGH, HULL CONNECTION
-
1890430-13909-00 GASKETGASKET
-
19EU0-62280-00-00 DRAIN PLUG ASSYDRAIN PLUG ASSY
-
20EU0-62282-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
21EU0-62283-00-00 ...O-RING...O-RING
-
22EU0-62285-01-00 ...PACKING DRAIN (EU0)...PACKING DRAIN (EU0)
-
239788R-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
249299R-05200-00 WASHERWASHER
-
259572R-05300-00 NUT, FLANGENUT, FLANGE
-
26FN8-U1624-00-00 BOWEYE 1 (S)BOWEYE 1 (S)
-
279572R-08300-00 NUT, FLANGENUT, FLANGE
-
289299R-08200-00 WASHERWASHER
-
29GH3-U883M-30-00 STABILIZER (YB - YAMAHA BLACK)STABILIZER (YB - YAMAHA BLACK)
-
30GT3-U883U-00-00 PACKING, STABILIZERPACKING, STABILIZER
-
319572R-06300-00 NUT, NYLONNUT, NYLON
-
329299R-06200-00 WASHERWASHER
