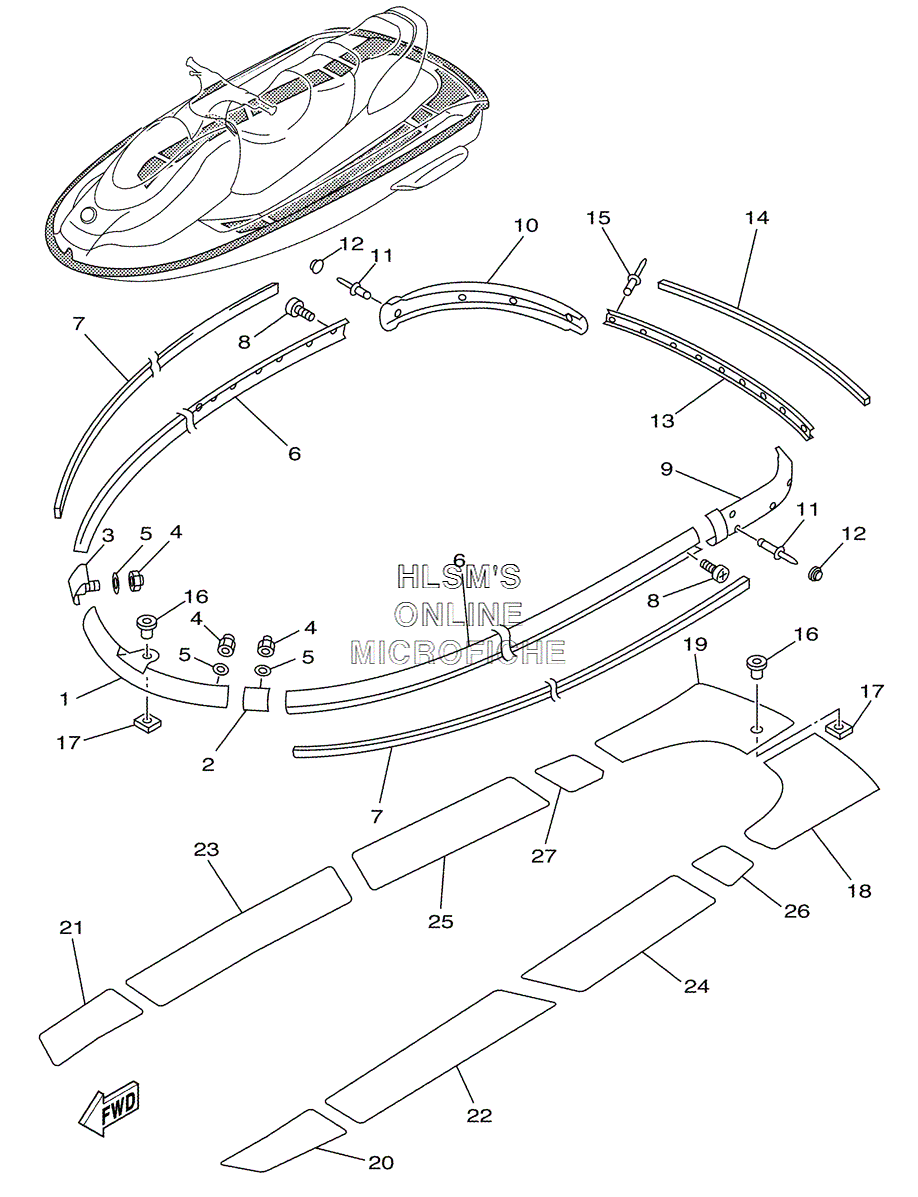

BUMBER W/ GUNWALE MAT для Yamaha XL700 WAVERUNNER - 2004 года выпуска
-
№АртикулНазвание
-
1GJ3-U2501-20-00 BOW GUNWALE COMP. (YB - YAMAHA BLACK)BOW GUNWALE COMP. (YB - YAMAHA BLACK)
-
2GU2-6252E-10-00 JOINT, GUNWALE LH (YB - YAMAHA BLACK)JOINT, GUNWALE LH (YB - YAMAHA BLACK)
-
3GU2-6252F-10-00 JOINT, GUNWALE RH (YB - YAMAHA BLACK)JOINT, GUNWALE RH (YB - YAMAHA BLACK)
-
49572R-06300-00 NUT, NYLONNUT, NYLON
-
59299R-06200-00 WASHERWASHER
-
6GH3-U2512-20-00 GUNWALE, SIDE (YB - YAMAHA BLACK)GUNWALE, SIDE (YB - YAMAHA BLACK)
-
7GJ3-U2519-60-00 INNER, GUNWALE (YB - YAMAHA BLACK)INNER, GUNWALE (YB - YAMAHA BLACK)
-
890169-059U1-00 SCREW, TAPPINGSCREW, TAPPING
-
9GJ3-U251D-21-00 GUNWALE, STERN 1 (YB - YAMAHA BLACK)GUNWALE, STERN 1 (YB - YAMAHA BLACK)
-
10GJ3-U251E-21-00 GUNWALE, STERN 2 (YB - YAMAHA BLACK)GUNWALE, STERN 2 (YB - YAMAHA BLACK)
-
1190267-489U8-00 RIVET, BLINDRIVET, BLIND
-
12GJ3-U354D-30-00 CAP, HEAD (YB - YAMAHA BLACK)CAP, HEAD (YB - YAMAHA BLACK)
-
13GJ3-U252C-20-00 COVER, GUNWALE 1 (YB - YAMAHA BLACK)COVER, GUNWALE 1 (YB - YAMAHA BLACK)
-
14GJ3-U252D-60-00 COVER, GUNWALE 2 (YB - YAMAHA BLACK)COVER, GUNWALE 2 (YB - YAMAHA BLACK)
-
1590267-489U8-00 RIVET, BLINDRIVET, BLIND
-
16FN8-61651-01-00 ROPE HOLEROPE HOLE
-
17EU0-61652-00-00 NUTNUT
-
18GU2-U358F-04-00 MAT, UPPER LH (BL - BLACK)MAT, UPPER LH (BL - BLACK)
-
19GU2-U358G-04-00 MAT, UPPER RH (BL - BLACK)MAT, UPPER RH (BL - BLACK)
-
20GU2-U351H-10-00 MAT, STEP 1 (BL - BLACK)MAT, STEP 1 (BL - BLACK)
-
21GU2-U351J-10-00 MAT, STEP 2 (BL - BLACK)MAT, STEP 2 (BL - BLACK)
-
22GU2-U351N-10-00 MAT, STEP 5 (BL - BLACK)MAT, STEP 5 (BL - BLACK)
-
23GU2-U351P-10-00 MAT, STEP 6 (BL - BLACK)MAT, STEP 6 (BL - BLACK)
-
24GU2-U351R-10-00 MAT, STEP 7 (BL - BLACK)MAT, STEP 7 (BL - BLACK)
-
25GU2-U351S-10-00 MAT, STEP 8 (BL - BLACK)MAT, STEP 8 (BL - BLACK)
-
26F0M-U351M-00-00 MAT, STEP 4 (BL - BLACK)MAT, STEP 4 (BL - BLACK)
-
27F0M-U351N-00-00 MAT, STEP 5 (BL - BLACK)MAT, STEP 5 (BL - BLACK)
