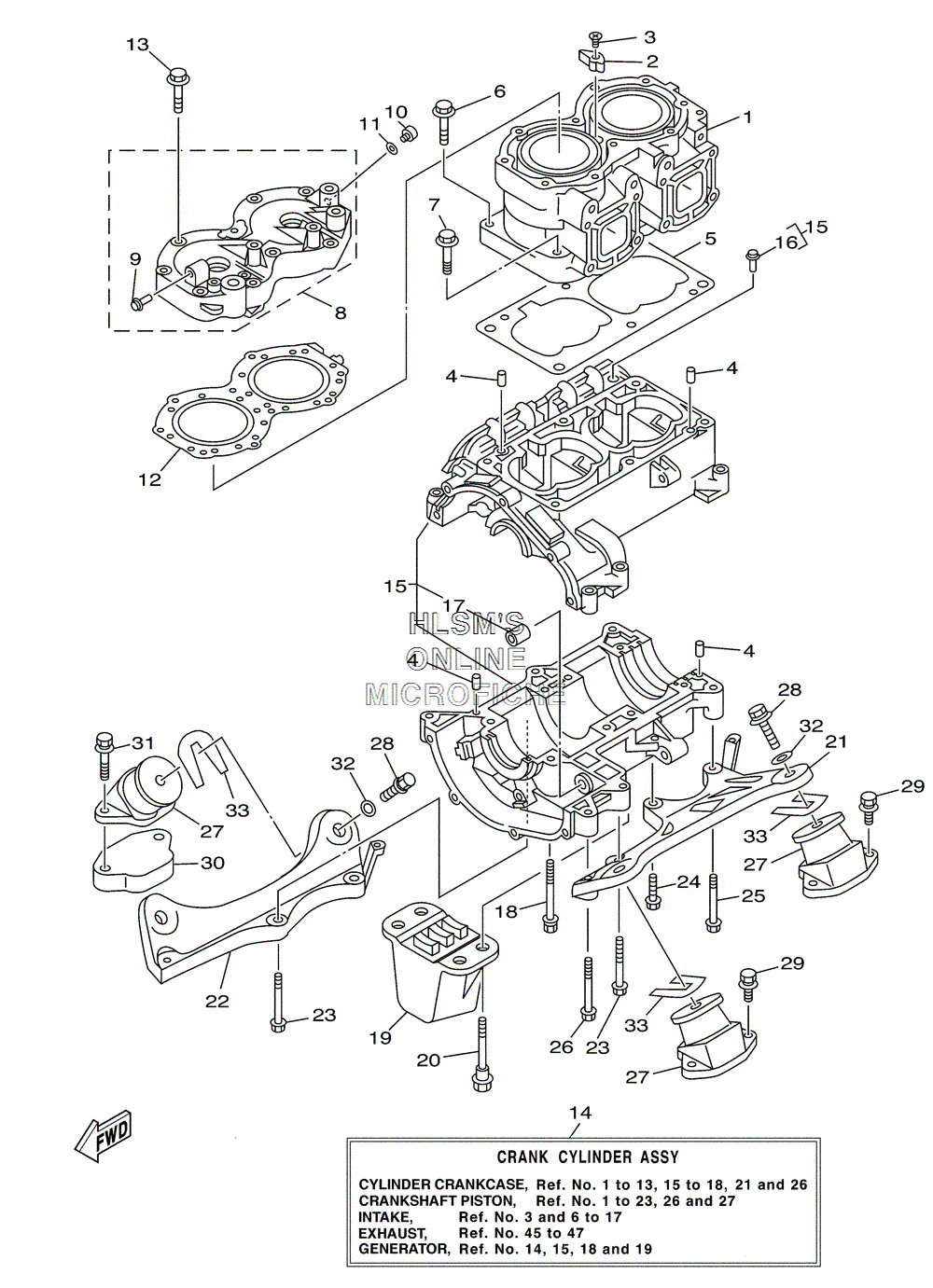

CYLINDER W/ CRANKCASE для Yamaha XL700 WAVERUNNER - 2004 года выпуска`
-
№АртикулНазвание
-
162T-11311-00-8S CYLINDER 1CYLINDER 1
-
26E5-11325-00-00 ANODEANODE
-
398780-04015-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
493606-12019-00 PIN, DOWELPIN, DOWEL
-
56M6-11351-A2-00 GASKET, CYLINDERGASKET, CYLINDER
-
690119-10M56-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
790119-10M07-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
862T-11111-00-8S HEAD, CYLINDER 1HEAD, CYLINDER 1
-
96K8-51129-00-00 ...NIPPLE...NIPPLE
-
1090340-08M04-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1190430-08020-00 GASKETGASKET
-
1262T-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
1390119-08M96-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1462T-W0090-03-8S CRANK CYLINDER ASSYCRANK CYLINDER ASSY
-
1562T-15100-00-8S CRANKCASE ASSYCRANKCASE ASSY
-
1662T-14251-10-00 ...NIPPLE...NIPPLE
-
1790380-12M29-00 ...BUSH, SOLID...BUSH, SOLID
-
1890119-08M55-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1963N-44532-01-00 STOPPER, UPPER MOUNTSTOPPER, UPPER MOUNT
-
2090109-08M56-00 BOLTBOLT
-
216R7-21415-01-00 BRACKET, FRONT UPPER 1BRACKET, FRONT UPPER 1
-
226R7-21425-01-00 BRACKET, REAR UPPER 1BRACKET, REAR UPPER 1
-
2390119-10M02-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2490119-10M00-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2590119-10M03-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2690119-10M01-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
276M6-44517-A1-8P MOUNT, RUBBERMOUNT, RUBBER
-
2890119-08817-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2990119-089UU-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
30GJ1-6721B-00-00 SPACER, ENGINE MOUNTSPACER, ENGINE MOUNT
-
3190119-089UR-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3290201-099U3-00 WASHER, PLATEWASHER, PLATE
-
33EU0-U7354-00-01 SHIM (T=0.1) (OPT)SHIM (T=0.1) (OPT)
-
33EU0-U7354-00-03 SHIM (T=0.3) (OPT)SHIM (T=0.3) (OPT)
-
33EU0-U7354-00-05 SHIM (T=0.5) (OPT)SHIM (T=0.5) (OPT)
-
33EU0-U7354-00-10 SHIM (T=1.0) (OPT)SHIM (T=1.0) (OPT)
-
33EU0-U7354-00-20 SHIM (T=2.0) (OPT)SHIM (T=2.0) (OPT)
