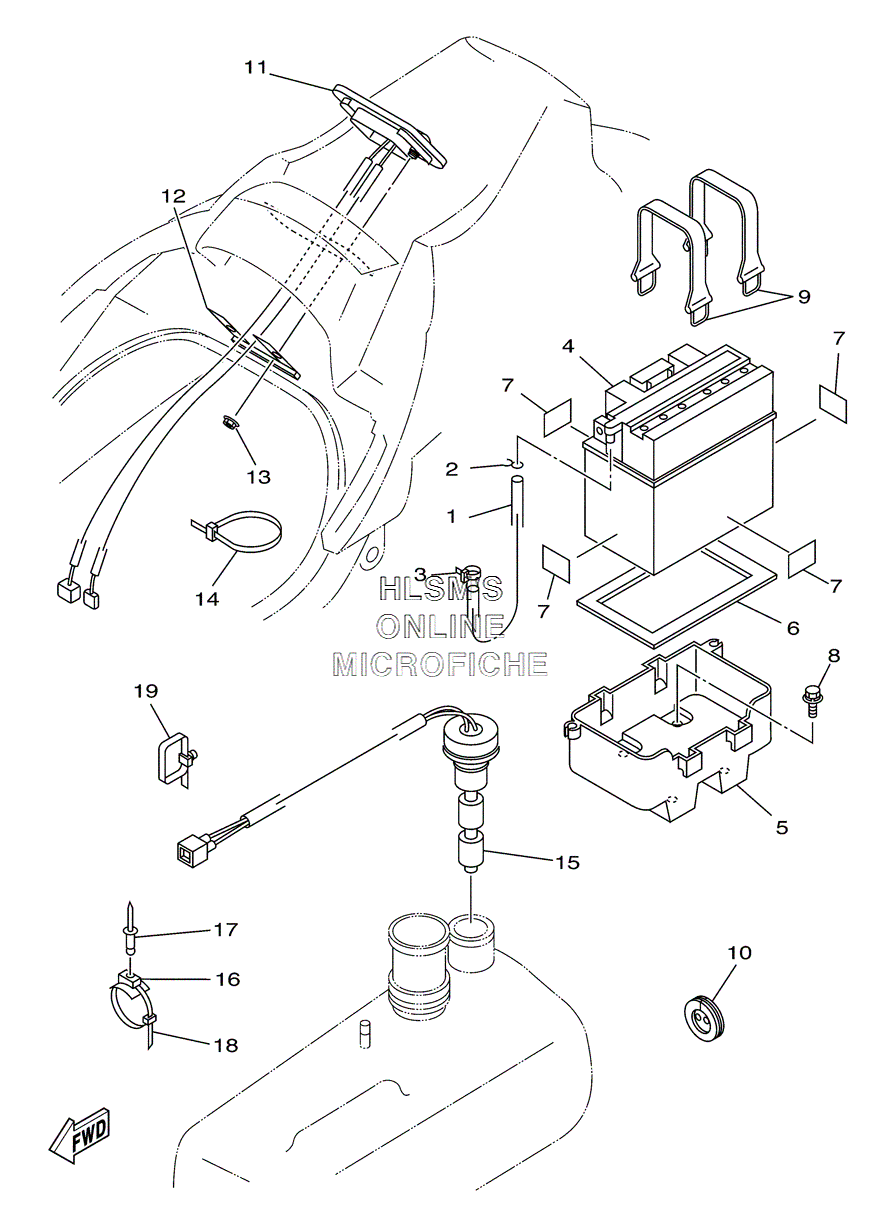

ELECTRICAL 2 для Yamaha XL700 WAVERUNNER - 2004 года выпуска`
-
№АртикулНазвание
-
1EU0-U7856-50-00 HOSE, AIR VENT 3HOSE, AIR VENT 3
-
290467-089U1-00 CLIPCLIP
-
390600-91060-00 CLAMPCLAMP
-
4EU0-82110-09-00 BATTERY ASSY (YB16CL-B)BATTERY ASSY (YB16CL-B)
-
5GP7-U8211-00-00 CASE, BATTERYCASE, BATTERY
-
6F0X-U8221-00-00 PAD, BATTERYPAD, BATTERY
-
7EU0-U8221-30-00 PAD, BATTERY 2PAD, BATTERY 2
-
890119-069US-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
9EU0-U821D-00-00 BAND, BATTERY 2BAND, BATTERY 2
-
10FJ0-68222-01-00 GROMMETGROMMET
-
11F0M-6820A-00-00 METER ASSYMETER ASSY
-
12F0M-68238-00-00 BRACKET, METERBRACKET, METER
-
139572R-05300-00 NUT, FLANGENUT, FLANGE
-
1490464-32801-00 CLAMPCLAMP
-
15GJ8-U824C-01-00 SENDER, OILSENDER, OIL
-
1690600-91736-00 CLAMP COMP.CLAMP COMP.
-
1790267-48802-00 RIVET, BLINDRIVET, BLIND
-
1890464-32801-00 CLAMPCLAMP
-
1990600-944U8-00 CLAMPCLAMP
Все узлы модели:
- AIR SILENCER W/ INTAKE
- BUMBER W/ GUNWALE MAT
- CARBURETOR
- CARBURETOR REPAIR KIT
- CONTROL CABLES
- CRANKSHAFT W/ PISTON
- CYLINDER W/ CRANKCASE
- ELECTRICAL 1
- • ELECTRICAL 2
- EXHAUST - HOSES
- EXHAUST SYSTEM
- FRONT STORAGE W/ COVER
- FUEL LINES
- FUEL TANK
- GASKET KIT - ENGINE AND JET UNIT
- GENERATOR
- GRAPHICS
- GRAPHICS - WARNING / CAUTION
- HANDLEBAR PAD
- HANDLEBAR W/ CONTROLS - STEERING COLUMN
- HULL FITTINGS W/ SPONSONS
- MODEL INFO - MANUALS
- OIL PUMP
- OIL TANK
- PROPULSION SYSTEM - EXTERNAL
- PROPULSION SYSTEM - INTERNAL
- SEAT
- SIDE COVERS
- STARTING MOTOR
- VENTILATION
