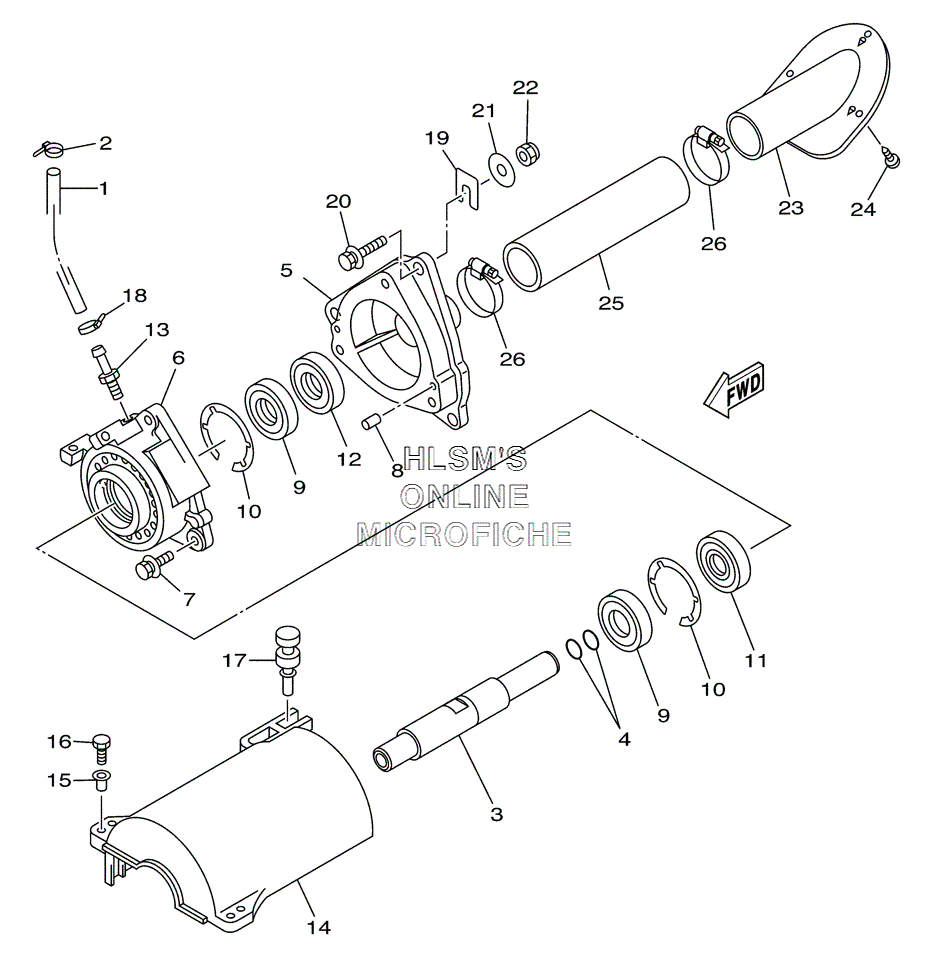

PROPULSION SYSTEM - INTERNAL для Yamaha SV1200 SUV 4-PERSON - 2004 года выпуска`
-
№АртикулНазвание
-
190445-09M21-00 HOSE (L445)HOSE (L445)
-
290465-11M10-00 CLAMPCLAMP
-
368N-51323-00-00 SHAFT, COUPLORSHAFT, COUPLOR
-
493210-19MJ4-00 O-RINGO-RING
-
566G-45331-00-94 HOUSING, BEARINGHOUSING, BEARING
-
666G-45332-00-94 HOUSING, BEARINGHOUSING, BEARING
-
790119-089UF-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
893606-12019-00 PIN, DOWELPIN, DOWEL
-
993101-25M55-00 OIL SEALOIL SEAL
-
1093430-47M04-00 CIRCLIPCIRCLIP
-
1193306-205U6-00 BEARINGBEARING
-
1293101-25M56-00 OIL SEALOIL SEAL
-
1361L-45378-00-00 NIPPLE, HOSENIPPLE, HOSE
-
1464Y-51381-00-00 COVERCOVER
-
1590387-06M60-00 COLLARCOLLAR
-
1690119-069UD-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1790480-06M46-00 GROMMETGROMMET
-
1890465-11829-00 CLAMPCLAMP
-
19GD0-U7249-00-05 SHIM (T=0.5) (OPT)SHIM (T=0.5) (OPT)
-
19GD0-U7249-00-10 SHIM (T=1.0) (OPT)SHIM (T=1.0) (OPT)
-
2090119-08801-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2190201-099U1-00 WASHER, PLATEWASHER, PLATE
-
229572R-08300-00 NUT, FLANGENUT, FLANGE
-
23GK5-6883E-00-00 JOINT, PIPEJOINT, PIPE
-
2497780-40712-00 SCREW, TAPPINGSCREW, TAPPING
-
25GU5-U883B-00-00 PIPE, 1PIPE, 1
-
2690601-152U3-00 BAND, HOSE 52BAND, HOSE 52
