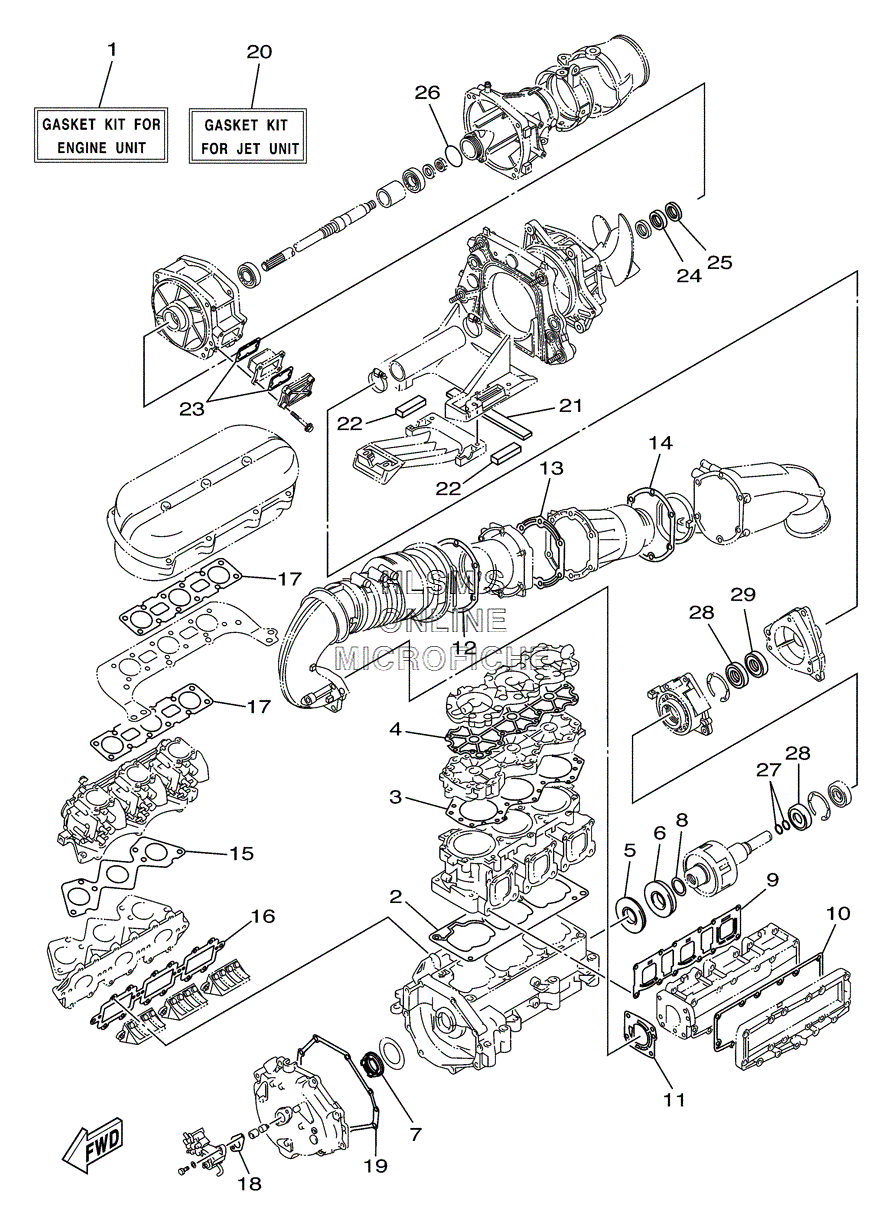

GASKET KIT - ENGINE AND JET UNIT для Yamaha SV1200 SUV 4-PERSON - 2004 года выпуска
-
№АртикулНазвание
-
165U-W0001-00-00 GASKET KIT FOR ENGINE UNITGASKET KIT FOR ENGINE UNIT
-
263M-11351-01-00 ...GASKET, CYLINDER...GASKET, CYLINDER
-
365U-11181-00-00 ...GASKET, CYLINDER HEAD 1...GASKET, CYLINDER HEAD 1
-
463M-11193-00-00 ...GASKET, HEAD COVER 1...GASKET, HEAD COVER 1
-
593102-36M33-00 ...OIL SEAL...OIL SEAL
-
693101-36M46-00 ...OIL SEAL...OIL SEAL
-
793103-32M01-00 ...OIL SEAL...OIL SEAL
-
862T-45127-00-00 ...SEAL...SEAL
-
965U-14613-00-00 ...GASKET, EXHAUST PIPE...GASKET, EXHAUST PIPE
-
1063M-14739-00-00 ...GASKET, MUFFLER DAMPER 1...GASKET, MUFFLER DAMPER 1
-
1163M-14749-00-00 ...GASKET, MUFFLR DAMPER 2...GASKET, MUFFLR DAMPER 2
-
1263M-41114-00-00 ...GASKET, EXHAUST OUTER COVER...GASKET, EXHAUST OUTER COVER
-
1363M-41122-00-00 ...GASKET, EXHAUST INNER COVER...GASKET, EXHAUST INNER COVER
-
1463M-41114-00-00 ...GASKET, EXHAUST OUTER COVER...GASKET, EXHAUST OUTER COVER
-
1565U-13556-00-00 ...GASKET, MANIFOLD...GASKET, MANIFOLD
-
1665U-13566-00-00 ...GASKET...GASKET
-
1765U-13674-00-00 ...GASKET, AIR COOLER COVER 1...GASKET, AIR COOLER COVER 1
-
1863M-13116-00-00 ...GASKET, PUMP CASE...GASKET, PUMP CASE
-
1963M-81365-00-00 ...GASKET, HOLE COVER...GASKET, HOLE COVER
-
2066V-W0001-20-00 GASKET KIT FOR JET UNITGASKET KIT FOR JET UNIT
-
2166V-51367-00-00 ...FELT, PACKING...FELT, PACKING
-
2266V-51368-00-00 ...FELT, PACKING...FELT, PACKING
-
2366V-42414-00-00 ...O-RING...O-RING
-
2493101-28M66-00 ...OIL SEAL...OIL SEAL
-
2593101-28M65-00 ...OIL SEAL...OIL SEAL
-
2693210-46M16-00 ...O-RING...O-RING
-
2793210-19MJ4-00 ...O-RING...O-RING
-
2893101-25M55-00 ...OIL SEAL...OIL SEAL
-
2993101-25M56-00 ...OIL SEAL...OIL SEAL
