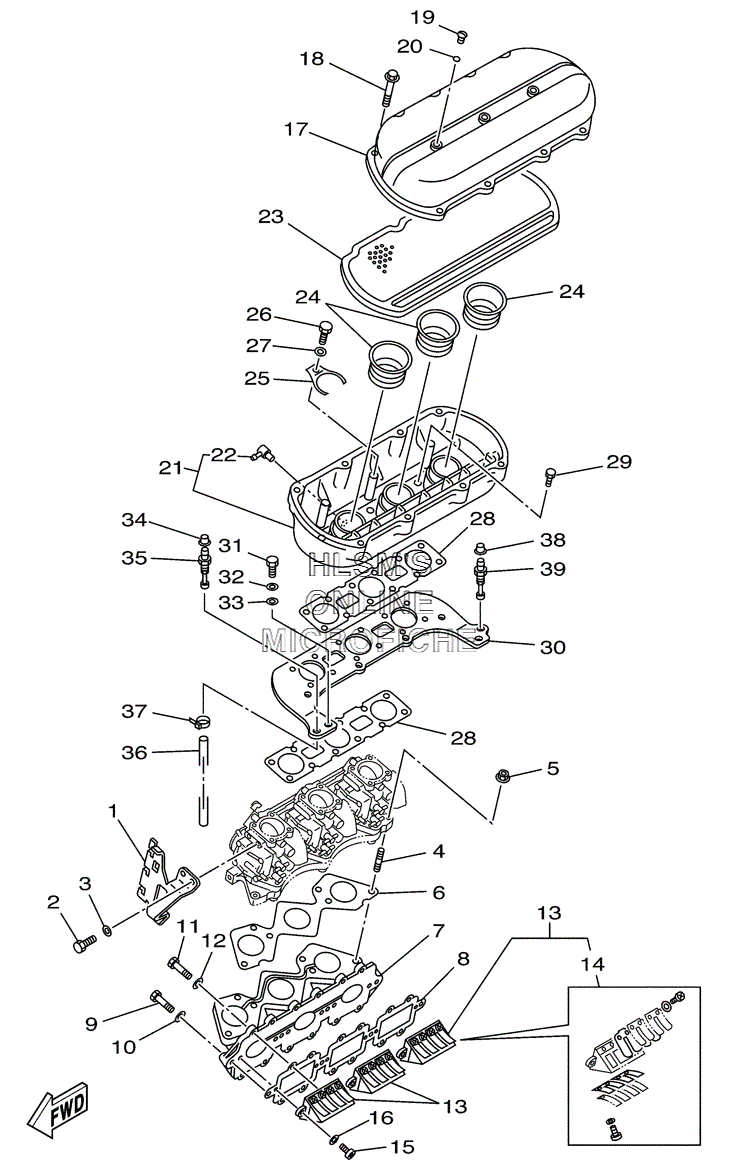

AIR SILENCER W/ INTAKE для Yamaha SV1200 SUV 4-PERSON - 2004 года выпуска`
-
№АртикулНазвание
-
165U-14527-01-00 PLATEPLATE
-
297013-06016-00 BOLTBOLT
-
392903-06600-00 WASHER, PLATEWASHER, PLATE
-
490116-08M60-00 BOLT, STUDBOLT, STUD
-
590179-08M15-00 NUTNUT
-
665U-13556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
765U-13555-00-8S MANIFOLD, INTAKEMANIFOLD, INTAKE
-
865U-13566-00-00 GASKETGASKET
-
997013-06035-00 BOLTBOLT
-
1092903-06600-00 WASHER, PLATEWASHER, PLATE
-
1197013-06025-00 BOLTBOLT
-
1292903-06600-00 WASHER, PLATEWASHER, PLATE
-
1365U-13610-00-00 REED VALVE ASSYREED VALVE ASSY
-
1465U-W0004-00-00 ...REED SET...REED SET
-
1597880-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1692990-05600-00 WASHER, PLATEWASHER, PLATE
-
1765U-14283-00-00 COVER, CARBURETOR 1COVER, CARBURETOR 1
-
1890109-05MA0-00 BOLTBOLT
-
1962T-14435-00-00 GROMMETGROMMET
-
2093210-13M63-00 O-RINGO-RING
-
2165U-14284-02-8S COVER, CARBURETOR 2COVER, CARBURETOR 2
-
226E5-13552-01-00 ...NOZZLE...NOZZLE
-
2365U-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
2465U-14469-00-00 FUNNEL, AIRFUNNEL, AIR
-
2565U-14477-00-00 PLATEPLATE
-
2697095-05010-00 BOLTBOLT
-
2792995-05600-00 WASHERWASHER
-
2865U-13674-00-00 GASKET, AIR COOLER COVER 1GASKET, AIR COOLER COVER 1
-
2990109-06M76-00 BOLTBOLT
-
3065U-14255-00-00 PLATEPLATE
-
3197013-06014-00 BOLTBOLT
-
3292903-06600-00 WASHER, PLATEWASHER, PLATE
-
3390201-06M31-00 WASHER, PLATEWASHER, PLATE
-
34663-45119-00-00 CAP, GREASE NIPPLECAP, GREASE NIPPLE
-
3561L-5169A-00-00 NIPPLE, GREASENIPPLE, GREASE
-
3690445-09M31-00 HOSE (L250)HOSE (L250)
-
3790465-11M10-00 CLAMPCLAMP
-
38663-45119-00-00 CAP, GREASE NIPPLECAP, GREASE NIPPLE
-
3961L-5169A-00-00 NIPPLE, GREASENIPPLE, GREASE
