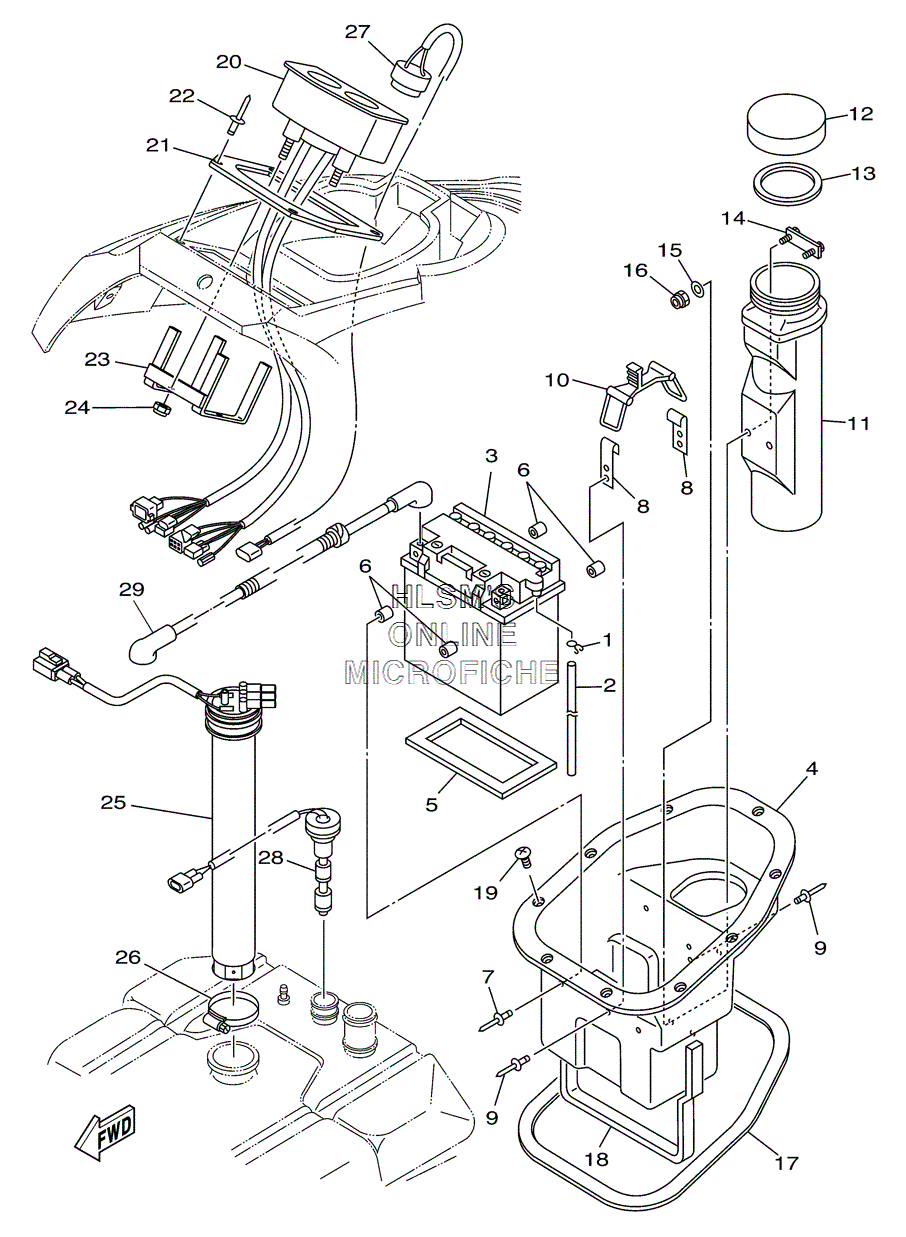

ELECTRICAL 2 для Yamaha SV1200 SUV 4-PERSON - 2004 года выпуска
-
№АртикулНазвание
-
190467-089U1-00 CLIPCLIP
-
2GU2-U785H-00-00 HOSE, AIR VENT 3HOSE, AIR VENT 3
-
3EU0-82110-09-00 BATTERY ASSY (YB16CL-B)BATTERY ASSY (YB16CL-B)
-
4GK5-68211-00-00 BATTERY CASE COMP.BATTERY CASE COMP.
-
5EU0-U8221-00-00 PAD, BATTERY 1PAD, BATTERY 1
-
6GK5-63768-00-00 CUSHION, RUBBERCUSHION, RUBBER
-
790267-48802-00 RIVET, BLINDRIVET, BLIND
-
8GA7-65772-00-00 HOOK AHOOK A
-
990267-489U9-00 RIVET, BLINDRIVET, BLIND
-
10GA7-68218-00-00 BAND, BATTERYBAND, BATTERY
-
11GK5-65983-00-00 BOX, FIRE EXTINGUISHERBOX, FIRE EXTINGUISHER
-
12EW2-65912-00-00 CAP, CASECAP, CASE
-
13EW2-65913-00-00 PACKING, CASEPACKING, CASE
