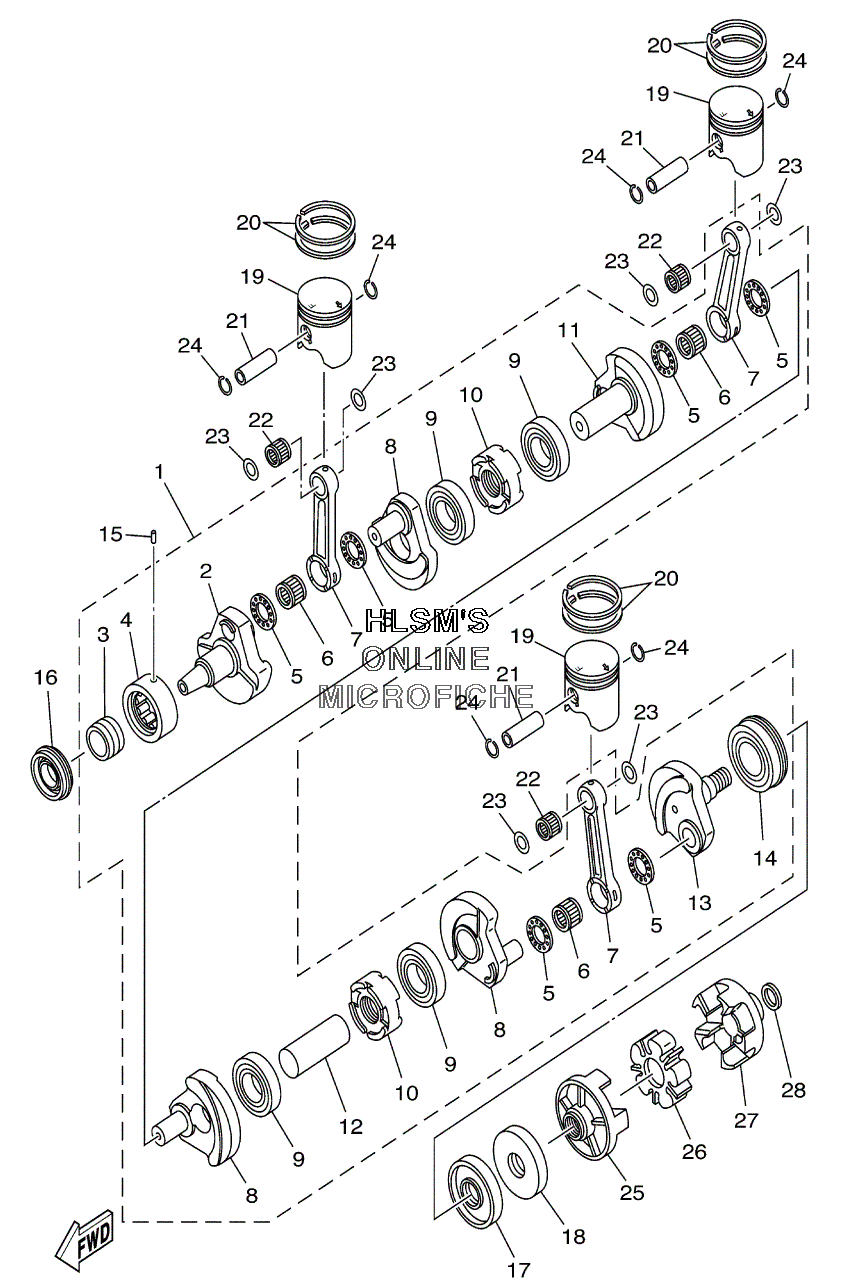

CRANKSHAFT W/ PISTON для Yamaha XLT 1200 A - 2002 года выпуска`
-
№АртикулНазвание
-
166V-11400-00-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
266E-11412-00-00 ....CRANK 1....CRANK 1
-
390387-35M01-00 ....COLLAR....COLLAR
-
493390-000U6-00 ....BEARING....BEARING
-
566E-11685-00-00 ....WASHER, CRANK PIN....WASHER, CRANK PIN
-
693310-627U6-00 ....BEARING....BEARING
-
766E-11651-00-00 ....ROD, CONNECTING....ROD, CONNECTING
-
866E-11422-00-00 ....CRANK 2....CRANK 2
-
993306-208U1-00 ....BEARING....BEARING
-
1066E-11515-00-00 ....SEAL, LABYRINTH 1....SEAL, LABYRINTH 1
-
1166V-11452-00-00 ....CRANK 5....CRANK 5
-
1266E-11431-00-00 ....CRANK 3....CRANK 3
-
1366E-11442-00-00 ....CRANK 4....CRANK 4
-
1493306-308U1-00 ....BEARING....BEARING
-
1593603-10049-00 PIN, DOWELPIN, DOWEL
-
1693102-35M57-00 OIL SEALOIL SEAL
-
1793101-36M62-00 OIL SEALOIL SEAL
-
1893101-36M61-00 OIL SEALOIL SEAL
-
1966V-11631-00-A0 PISTON (STD) (RED)*PISTON (STD) (RED)*
-
1966V-11631-00-B0 PISTON (STD) (ORANGE)*PISTON (STD) (ORANGE)*
-
1966V-11631-00-C0 PISTON (STD) (GREEN)*PISTON (STD) (GREEN)*
-
1966V-11631-00-D0 PISTON (STD) (PURPLE)*PISTON (STD) (PURPLE)*
-
2066V-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
2166E-11633-00-00 PIN, PISTONPIN, PISTON
-
2293310-422U2-00 BEARINGBEARING
-
2390201-22M04-00 WASHER, PLATEWASHER, PLATE
-
2466E-11634-00-00 CLIP, PISTON PINCLIP, PISTON PIN
-
2566E-45813-10-94 FLANGE, COUPLINGFLANGE, COUPLING
-
2666E-4581J-00-00 RUBBER SHAFT COUPLINGRUBBER SHAFT COUPLING
-
2768N-45593-00-94 FLANGE, COUPLING 1FLANGE, COUPLING 1
-
2890201-248M5-00 WASHER, PLATEWASHER, PLATE
