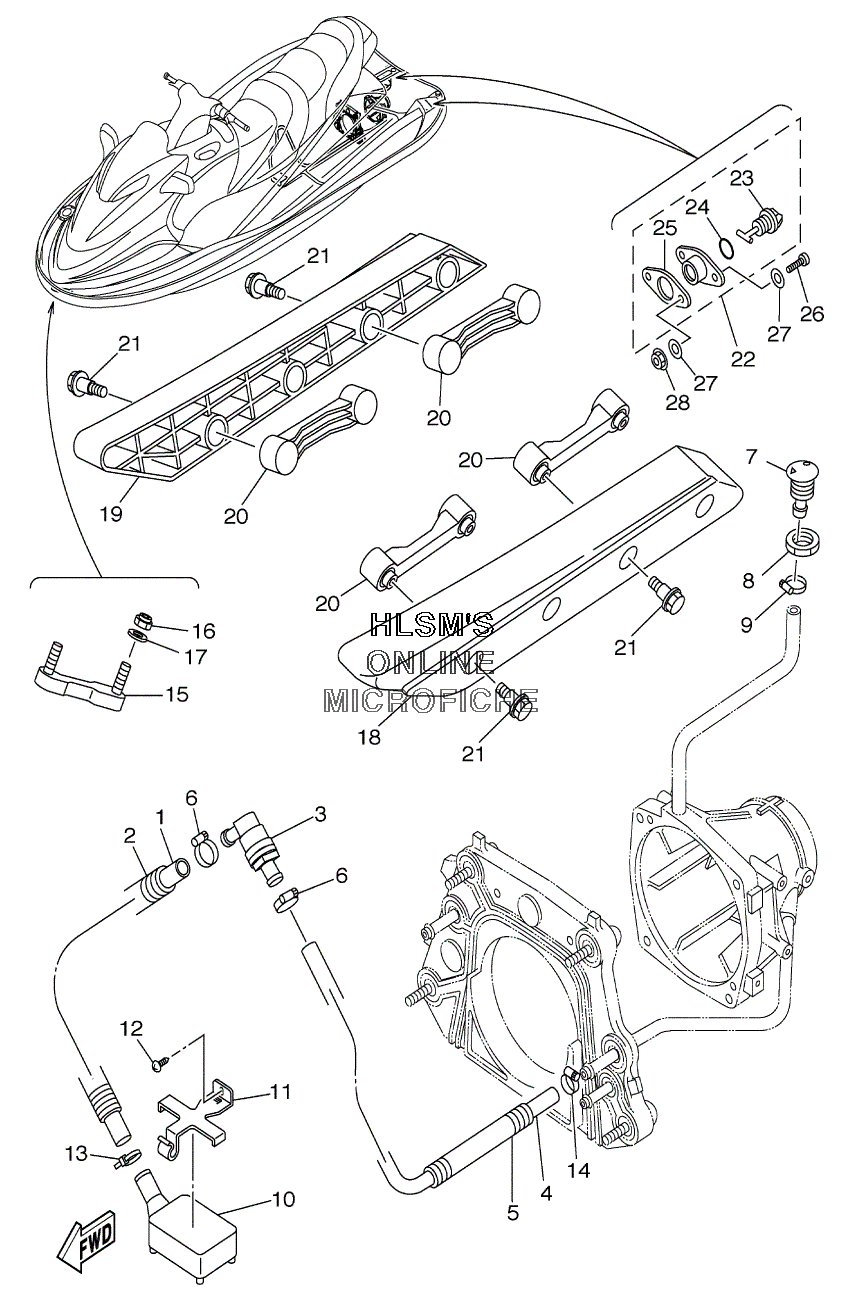

HULL FITTINGS W/ SPONSONS для Yamaha XLT 1200 A - 2002 года выпуска`
-
№АртикулНазвание
-
190445-198C0-00 HOSE (L1000)HOSE (L1000)
-
290446-27M73-00 HOSEHOSE
-
368N-5112T-00-00 JOINT, HOSEJOINT, HOSE
-
490445-198B9-00 HOSE (L650)HOSE (L650)
-
590446-27M55-00 HOSEHOSE
-
690601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
7FN8-6269B-00-00 SPOUTSPOUT
-
8EU0-61652-00-00 NUTNUT
-
990601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
10GD0-U761D-00-00 STRAINER, BILGESTRAINER, BILGE
-
11EW2-67618-00-00 BASE, STRAINER BLIGEBASE, STRAINER BLIGE
-
129778R-50112-00 SCREW, TAPPINGSCREW, TAPPING
-
1390465-11829-00 CLAMPCLAMP
-
1490601-118UF-00 BAND, HOSE 18BAND, HOSE 18
-
15F0D-61624-01-00 BOWEYE 1 (S)BOWEYE 1 (S)
-
169572R-08300-00 NUT, FLANGENUT, FLANGE
-
179299R-08200-00 WASHERWASHER
-
18F0D-U883N-20-00 STABILIZER (LEFT HAND) (YAMAHA BLACK)STABILIZER (LEFT HAND) (YAMAHA BLACK)
-
19F0D-U883P-20-00 STABILIZER (RIGHT HAND) (YAMAHA BLACK)STABILIZER (RIGHT HAND) (YAMAHA BLACK)
-
20F1F-U883T-00-00 BRACKET,STABILIZERBRACKET,STABILIZER
-
21F0V-U2624-00-00 BOLTBOLT
-
22EU0-62280-00-00 DRAIN PLUG ASSYDRAIN PLUG ASSY
-
23EU0-62282-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
24EU0-62283-00-00 ...O-RING...O-RING
-
25EU0-62285-01-00 ...PACKING DRAIN (EU0)...PACKING DRAIN (EU0)
-
269788R-05025-00 SCREW, PAN HEADSCREW, PAN HEAD
-
279299R-05200-00 WASHERWASHER
-
289572R-05300-00 NUT, FLANGENUT, FLANGE
