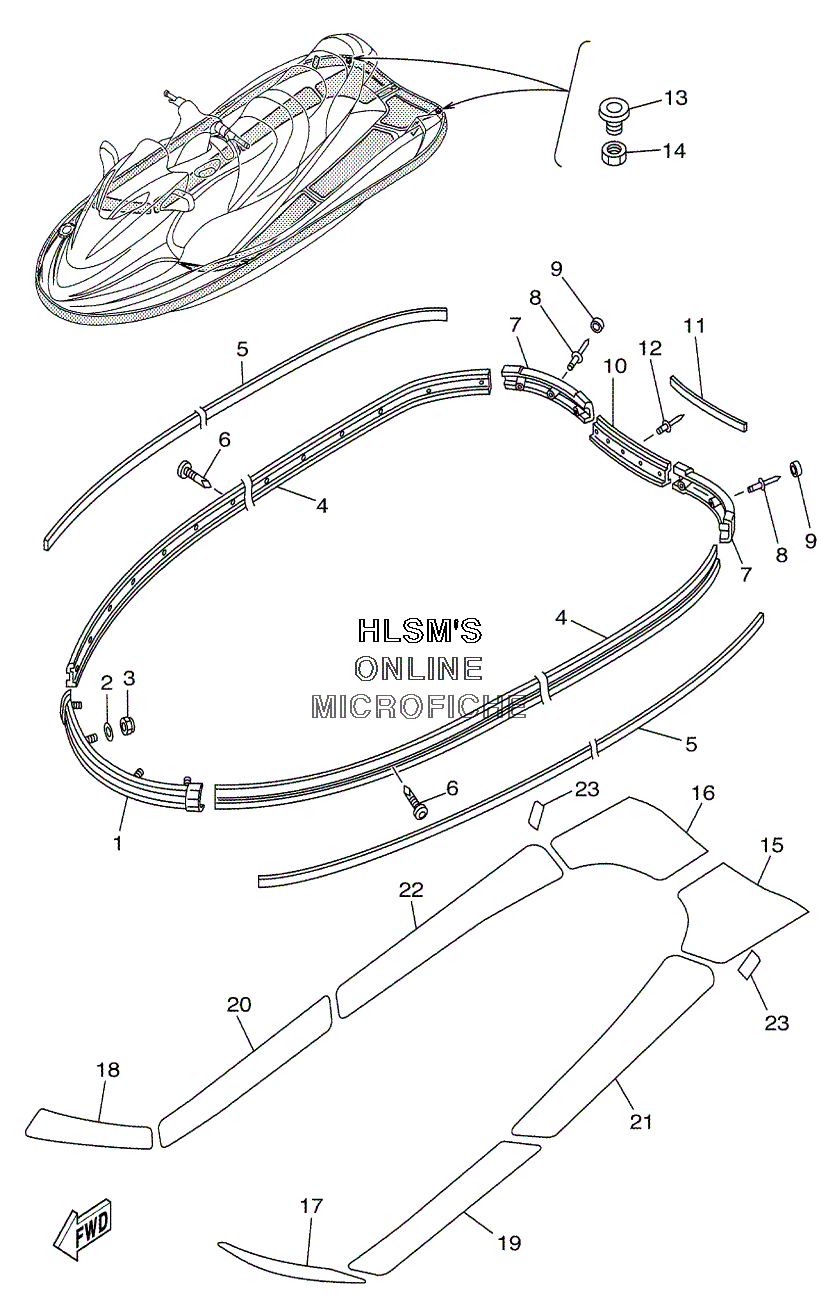

BUMBER W/ GUNWALE MAT для Yamaha XLT 1200 A - 2002 года выпуска
-
№АртикулНазвание
-
1GP7-U2501-20-00 BOW GUNWALE COMP. (YAMAHA BLACK)BOW GUNWALE COMP. (YAMAHA BLACK)
-
29299R-06200-00 WASHERWASHER
-
39572R-06300-00 NUT, FLANGENUT, FLANGE
-
4F0D-U2512-00-00 GUNWALE, SIDE (YAMAHA BLACK)GUNWALE, SIDE (YAMAHA BLACK)
-
5F1F-U2519-01-00 INNER,GUNWALEINNER,GUNWALE
-
690169-059U1-00 SCREW, TAPPINGSCREW, TAPPING
-
7F0D-U251D-00-00 GUNWALE, STERN 1GUNWALE, STERN 1
-
890267-489UT-00 RIVET, BLINDRIVET, BLIND
-
9F0D-U352E-00-00 MAT, BOWMAT, BOW
-
10F0D-U252C-00-00 COVER, GUNWALE 1 (YAMAHA BLACK)COVER, GUNWALE 1 (YAMAHA BLACK)
-
11F0D-U252D-00-00 COVER, GUNWALE 2 (YAMAHA BLACK)COVER, GUNWALE 2 (YAMAHA BLACK)
-
1290267-489US-00 RIVET, BLINDRIVET, BLIND
-
13GH1-61651-01-00 ROPE HOLEROPE HOLE
-
14EU0-61652-00-00 NUTNUT
-
15F0V-U358F-02-00 MAT, UPPER (LEFT HAND) (BLACK)MAT, UPPER (LEFT HAND) (BLACK)
-
16F0V-U358G-02-00 MAT, UPPER (RIGHT HAND) (BLACK)MAT, UPPER (RIGHT HAND) (BLACK)
-
17F0P-U351H-00-00 MAT, STEP 1 (BLACK)MAT, STEP 1 (BLACK)
-
18F0P-U351J-00-00 MAT, STEP 2 (BLACK)MAT, STEP 2 (BLACK)
-
19F0D-U351K-02-00 MAT, STEP 3 (BLACK)MAT, STEP 3 (BLACK)
-
20F0D-U351M-02-00 MAT, STEP 4 (BLACK)MAT, STEP 4 (BLACK)
-
21F0D-U351N-02-00 MAT, STEP 5 (BLACK)MAT, STEP 5 (BLACK)
-
22F0D-U351P-02-00 MAT, STEP 6 (BLACK)MAT, STEP 6 (BLACK)
-
23F0D-U351R-00-00 MAT, STEP 7 (BLACK)MAT, STEP 7 (BLACK)
