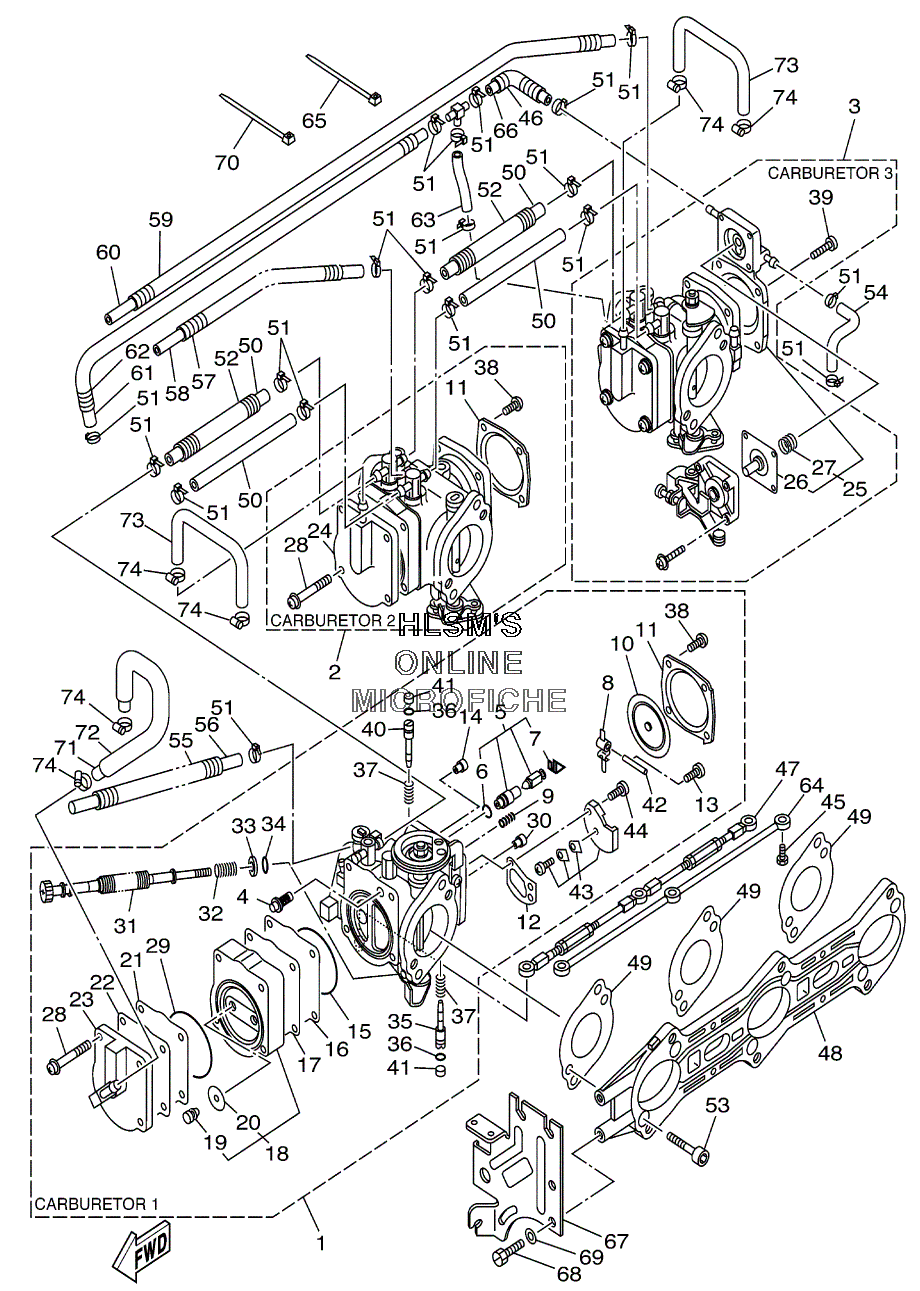

CARBURETOR для Yamaha XLT 1200 A - 2002 года выпуска
-
№АртикулНазвание
-
168N-14301-02-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
268N-14302-02-00 CARBURETOR ASSY 2CARBURETOR ASSY 2
-
368N-14303-02-00 CARBURETOR ASSY 3CARBURETOR ASSY 3
-
46R7-14569-00-00 ....STRAINER....STRAINER
-
564T-14916-01-00 ....NEEDLE....NEEDLE
-
68F2-14147-00-00 ........O-RING........O-RING
-
77EG-14159-00-00 ........CLIP........CLIP
-
86K8-14547-01-00 ....ARM, FLOAT....ARM, FLOAT
-
96R7-14253-00-00 ....SPRING....SPRING
-
106R7-14541-00-00 ....DIAPHRAGM, PUMP....DIAPHRAGM, PUMP
-
116R7-14542-00-00 ....BODY, PUMP 1 (CARBURETOR 1,2)....BODY, PUMP 1 (CARBURETOR 1,2)
-
126K8-14536-11-00 ....GASKET....GASKET
-
136K8-14503-02-00 ....SCREW....SCREW
-
143G2-1423A-74-00 ....JET, MAIN (#117.5)....JET, MAIN (#117.5)
-
1566E-14563-01-00 ....O-RING....O-RING
-
1666E-24471-00-00 ....DIAPHRAGM....DIAPHRAGM
-
1766E-24411-00-00 ....DIAPHRAGM....DIAPHRAGM
-
1866E-24413-01-00 ....BODY 2....BODY 2
-
1965U-24492-00-00 ........BUSH, FULEL PUMP........BUSH, FULEL PUMP
-
2066E-24362-00-00 ........VALVE, CHECK 1........VALVE, CHECK 1
-
2166E-24421-00-00 ....VALVE, CHECK....VALVE, CHECK
-
2266E-24431-00-00 ....GASKET, FUEL PUMP 1....GASKET, FUEL PUMP 1
-
2366V-24452-00-00 ....COVER (CARBURETOR 1)....COVER (CARBURETOR 1)
-
2466V-24452-10-00 ....COVER (CARBURETOR 2,3)....COVER (CARBURETOR 2,3)
-
2566E-14280-00-00 ....COVER, CARBURETOR (CARBURETOR 3)....COVER, CARBURETOR (CARBURETOR 3)
-
2666E-14170-00-00 ........DIAPHRAGM ASS'Y (CARBURETOR 3)........DIAPHRAGM ASS'Y (CARBURETOR 3)
-
2766E-14286-00-00 ........SPRING (CARBURETOR 3)........SPRING (CARBURETOR 3)
-
2890157-05M17-00 ....SCREW, PAN HEAD....SCREW, PAN HEAD
-
2966E-14564-01-00 ....O-RING....O-RING
-
301HX-1423A-68-00 ....JET, MAIN (# 87.5)....JET, MAIN (# 87.5)
-
3166V-14124-00-00 ....SCREW, CABLE ADJUSTING (CARBURETOR 1)....SCREW, CABLE ADJUSTING (CARBURETOR 1)
-
323KW-14932-00-00 ...SPRING, THROTTLE 2 (CARBURETOR 1)...SPRING, THROTTLE 2 (CARBURETOR 1)
-
33812-14235-00-00 ....WASHER, NEEDLE (CARBURETOR 1)....WASHER, NEEDLE (CARBURETOR 1)
-
34812-14147-00-00 .....O-RING (CARBURETOR 1).....O-RING (CARBURETOR 1)
-
3566V-14211-00-00 ....SCREW, PILOT ADJUSTING....SCREW, PILOT ADJUSTING
-
3693210-03119-00 ....O-RING....O-RING
-
3766V-14160-00-00 ....COIL, SPRING....COIL, SPRING
-
3897880-05010-00 ....SCREW, PAN HEAD (CARBURETOR 1,2)....SCREW, PAN HEAD (CARBURETOR 1,2)
-
3998580-05014-00 ....SCREW, PAN HEAD (CARBURETOR 3)....SCREW, PAN HEAD (CARBURETOR 3)
-
4066V-14946-00-00 ....PLATE, NEEDLE FITTING....PLATE, NEEDLE FITTING
-
4166V-1432A-00-00 ....PLUG....PLUG
-
42439-14186-00-00 ....PIN, FLOAT....PIN, FLOAT
-
4366E-24412-01-00 ....BODY 1....BODY 1
-
446K8-14523-11-00 ....SCREW, STOP....SCREW, STOP
-
4568N-14486-00-00 SCREW, RODSCREW, ROD
-
4690447-07003-00 HOSE, WITH SPRINGHOSE, WITH SPRING
-
4766V-41217-00-00 ROD, ACCEL. LEVERROD, ACCEL. LEVER
-
4866V-14146-00-00 PLATEPLATE
-
4966E-14398-00-00 .GASKET.GASKET
-
5090445-11M73-00 HOSEHOSE
-
5135H-14139-00-00 CLIP, PIPECLIP, PIPE
-
5290446-17MG6-00 HOSEHOSE
-
5366E-14162-01-00 BOLT, HOLDINGBOLT, HOLDING
-
5490445-07004-00 HOSEHOSE
-
5590446-10MG0-00 HOSEHOSE
-
5690446-07MG1-00 HOSEHOSE
-
5790446-10MG2-00 HOSEHOSE
-
5890446-07MG3-00 HOSEHOSE
-
5990446-10MG4-00 HOSEHOSE
-
6090446-07MG5-00 HOSEHOSE
-
6190445-07005-00 HOSEHOSE
-
6290447-07004-00 HOSE, WITH SPRINGHOSE, WITH SPRING
-
6390445-07003-00 HOSEHOSE
-
6468N-14585-00-00 ROD, CHOKEROD, CHOKE
-
654KM-14137-00-00 CLIPCLIP
-
6666V-14294-00-00 HOSEHOSE
-
6766V-14527-00-00 PLATEPLATE
-
6897095-06012-00 BOLTBOLT
-
6992995-06600-00 WASHERWASHER
-
7090465-13M60-00 CLAMPCLAMP
-
7166V-24312-00-00 PIPE 2PIPE 2
-
7290446-14MA9-00 HOSEHOSE
-
7366V-24313-01-00 PIPE 3PIPE 3
-
7490460-11M17-00 CLAMP, HOSECLAMP, HOSE
