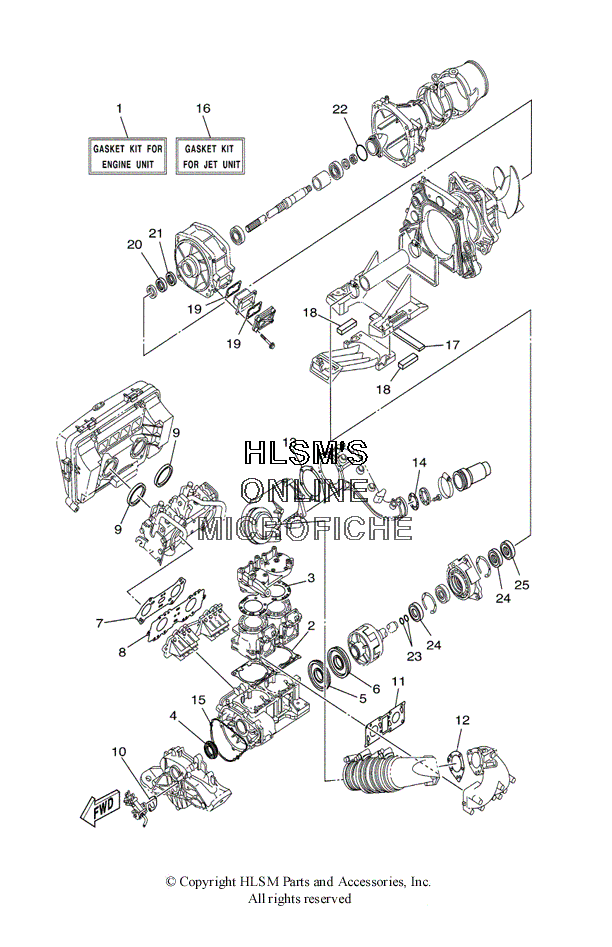

GASKET KIT - ENGINE AND JET UNIT для Yamaha XL 800 - 2000 года выпуска`
-
№АртикулНазвание
-
166E-W0001-01-00 GASKET KITGASKET KIT
-
266E-11351-01-00 ...GASKET, CYL...GASKET, CYL
-
366E-11181-00-00 ...GASKET, CYL HEAD 1...GASKET, CYL HEAD 1
-
493103-35M03-00 ...OIL SEAL...OIL SEAL
-
593101-36M62-00 ...OIL SEAL...OIL SEAL
-
693101-36M61-00 …OIL SEAL…OIL SEAL
-
766E-13556-10-00 ...GASKET, MANIFOLD...GASKET, MANIFOLD
-
866E-13624-00-00 ...PLATE,REED VALVE...PLATE,REED VALVE
-
966E-13473-00-00 ...O-RING...O-RING
-
1063M-13116-00-00 ...GASKET, PUMP CASE...GASKET, PUMP CASE
-
1166E-14613-00-00 ...GASKET, EXHAUST PIPE...GASKET, EXHAUST PIPE
-
1266E-14749-00-00 ...GASKET, MUFFLER DAMPER 2...GASKET, MUFFLER DAMPER 2
-
1366E-41124-10-00 ...GASKET, EXHAUST OUTER COVER...GASKET, EXHAUST OUTER COVER
-
1466E-14623-00-00 ...GASKET, EXHAUST PIPE...GASKET, EXHAUST PIPE
-
1566E-81168-00-00 ...O-RING...O-RING
-
1666V-W0001-20-00 GASKET KIT FOR JET UNITGASKET KIT FOR JET UNIT
-
1766V-51367-00-00 ...FELT, PACKING...FELT, PACKING
-
1866V-51368-00-00 ...FELT, PACKING...FELT, PACKING
-
1966V-42414-00-00 ...O-RING...O-RING
-
2093101-28M66-00 ...OIL SEAL...OIL SEAL
-
2193101-28M65-00 ...OIL SEAL...OIL SEAL
-
2293210-46M16-00 ...O-RING...O-RING
-
2393210-19MJ4-00 ...O-RING...O-RING
-
2493101-25M55-00 ...OIL SEAL...OIL SEAL
-
2593101-25M56-00 ...OIL SEAL...OIL SEAL
