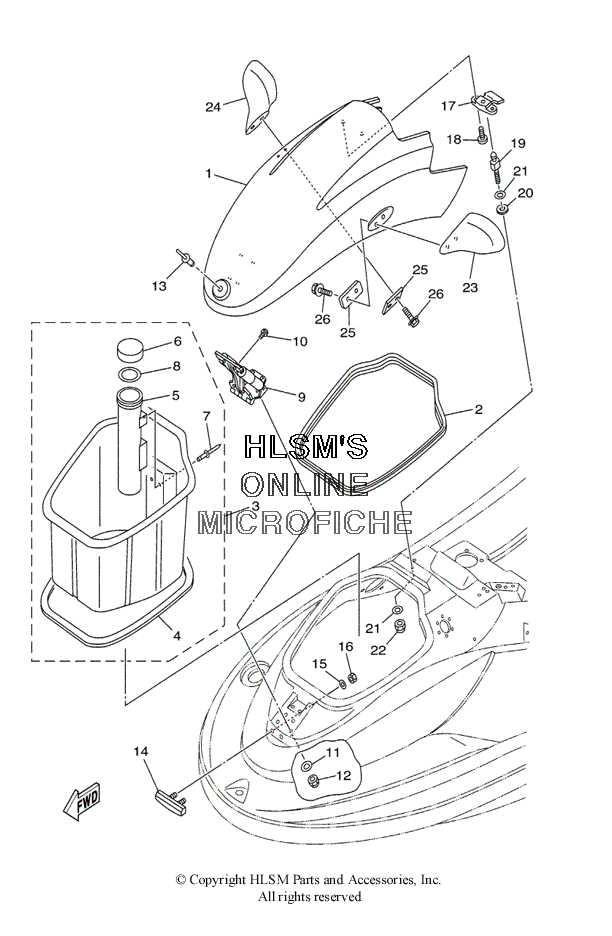

FRONT STORAGE W/ COVER для Yamaha XL 800 - 2000 года выпуска`
-
№АртикулНазвание
-
1F0D-U517B-00-P3 LID, ENGINE ROOM (YMUS)LID, ENGINE ROOM (YMUS)
-
2F0D-U266B-01-00 PACKING 3 (YMUS)PACKING 3 (YMUS)
-
3F0D-U475A-00-00 BOWLOCKER ASSY (YMUS)BOWLOCKER ASSY (YMUS)
-
4GJ3-U266C-31-00 ...PACKING 4 (YMUS)...PACKING 4 (YMUS)
-
5GP7-U5983-00-00 ...BOX, FIRE EXTINGUISHER (YMUS)...BOX, FIRE EXTINGUISHER (YMUS)
-
6EW2-U5912-01-00 ...CAP, CASE (YMUS)...CAP, CASE (YMUS)
-
790267-489UP-00 ...RIVET, BLIND (YMUS)...RIVET, BLIND (YMUS)
-
8EW2-U5913-01-00 ...PACKING, CASE (YMUS)...PACKING, CASE (YMUS)
-
9F0D-6515A-02-00 HINGE ASSY.HINGE ASSY.
-
1090119-06966-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
1190201-06802-00 WASHER, PLATE (YMUS)WASHER, PLATE (YMUS)
-
129572R-06300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
1390267-489U8-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
-
14F0D-6518E-01-00 PRATE, HINGE LIDPRATE, HINGE LID
-
159299R-06200-00 WASHER (YMUS)WASHER (YMUS)
-
169572R-06300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
17F0D-6517C-04-00 LOCK, LIDLOCK, LID
-
1890149-06906-00 SCREWSCREW
-
19F0D-63774-01-00 PINPIN
-
20F0D-6515E-00-00 DAMPER 2DAMPER 2
-
219299R-08200-00 WASHER, M8 FLAT (YMUS)WASHER, M8 FLAT (YMUS)
-
229572R-08300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
23F0D-U596B-00-00 MIRROR LH (YMUS)MIRROR LH (YMUS)
-
24F0D-U596C-00-00 MIRROR RH (YMUS)MIRROR RH (YMUS)
-
25F0D-U5646-00-00 PLATE (YMUS)PLATE (YMUS)
-
2690119-089UF-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
27F0D-65116-00-00 TRIM, HATCH 2TRIM, HATCH 2
