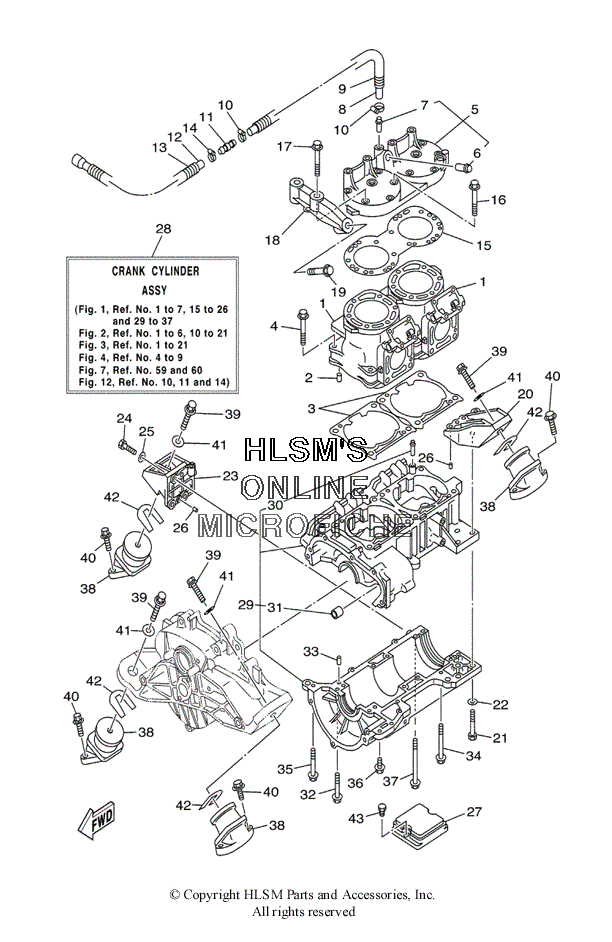

CYLINDER W/ CRANKCASE 1 для Yamaha XL 800 - 2000 года выпуска
-
№АртикулНазвание
-
166E-11311-00-94 CYLINDER 1CYLINDER 1
-
293606-12019-00 PIN, DOWELPIN, DOWEL
-
366E-11351-01-00 GASKET, CYLGASKET, CYL
-
490119-10M07-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
566E-11111-00-94 HEAD, CYL 1HEAD, CYL 1
-
666E-51129-00-00 ...NIPPLE...NIPPLE
-
76K8-51129-00-00 ...NIPPLE...NIPPLE
-
867A-12588-00-00 HOSE 5HOSE 5
-
990446-24M52-00 HOSEHOSE
-
1090450-14M05-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1166E-51142-00-00 CONNECTIONCONNECTION
-
1267A-12589-00-00 HOSE 6HOSE 6
-
1390446-24M94-00 HOSEHOSE
-
1490450-14M05-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1566E-11181-00-00 GASKET, CYL HEAD 1GASKET, CYL HEAD 1
-
1690119-08MA1-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1790119-08MA2-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
1866E-14781-10-94 STAY, MUFFLER 2STAY, MUFFLER 2
-
1990119-10M00-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2066E-21425-10-8P BRACKET, REAR UPPER 1BRACKET, REAR UPPER 1
-
2197013-08045-00 BOLTBOLT
-
2292903-08600-00 WASHER, PLATEWASHER, PLATE
-
2366E-21426-10-8P BRACKET, REAR UPPER 2BRACKET, REAR UPPER 2
-
2497013-08030-00 BOLTBOLT
-
2592903-08600-00 WASHER, PLATEWASHER, PLATE
-
2693606-12019-00 PIN, DOWELPIN, DOWEL
-
2767A-44532-00-00 STOPPER, UPPER MOUNTSTOPPER, UPPER MOUNT
-
2866E-W0090-11-8P CRANK CYL ASSYCRANK CYL ASSY
-
2966E-15100-10-8P CRANKCASE ASSYCRANKCASE ASSY
-
3062T-14251-10-00 ...NIPPLE...NIPPLE
-
3190380-12M29-00 ...BUSH, SOLID...BUSH, SOLID
-
3290119-08M55-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3393606-12019-00 PIN, DOWELPIN, DOWEL
-
3490119-06M78-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3590119-08M61-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3690119-06M13-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3790119-08M56-00 BOLT, W/WASHERBOLT, W/WASHER
-
386M6-44517-A1-5B MOUNT RUBBERMOUNT RUBBER
-
3990119-089UR-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4090119-089U6-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4190201-099U3-00 PLATEPLATE
-
42EU0-U7354-00-01 SHIM (0.1MM)SHIM (0.1MM)
-
42EU0-U7354-00-03 SHIM (T=0.3)SHIM (T=0.3)
-
42EU0-U7354-00-05 SHIM (T=0.5)SHIM (T=0.5)
-
42EU0-U7354-00-10 SHIM (T=1.0)SHIM (T=1.0)
-
42EU0-U7354-00-20 SHIM (T=2.0)SHIM (T=2.0)
-
42EU0-U7354-00-30 SHIM (T=3.0)SHIM (T=3.0)
-
4390101-06917-00 BOLTBOLT
