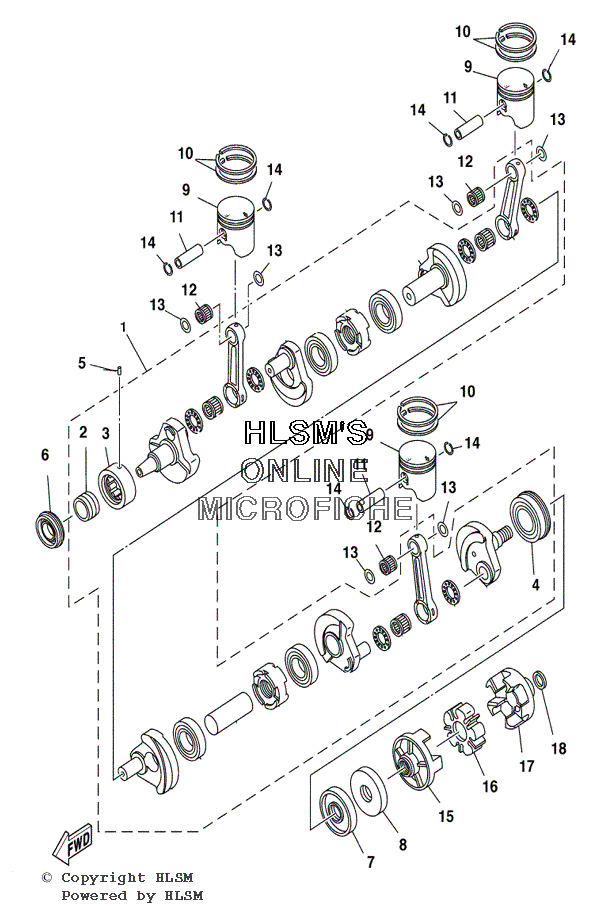

CRANKSHAFT W/ PISTON для Yamaha GP 1200R - 2000 года выпуска`
-
№АртикулНазвание
-
166V-11400-00-00 CRANKSAHFT ASSYCRANKSAHFT ASSY
-
390387-35M01-00 ...COLLAR...COLLAR
-
493306-308U1-00 ...BEARING...BEARING
-
493390-000U6-00 ...BEARING...BEARING
-
593603-10049-00 PIN, DOWELPIN, DOWEL
-
693102-35M57-00 OIL SEALOIL SEAL
-
793101-36M62-00 OIL SEALOIL SEAL
-
893101-36M61-00 OIL SEALOIL SEAL
-
966V-11631-00-A0 PISTON (STD) (UR RED)PISTON (STD) (UR RED)
-
966V-11631-00-B0 PISTON (STD) (UR ORANGE)PISTON (STD) (UR ORANGE)
-
966V-11631-00-C0 PISTON (STD) (UR GREEN)PISTON (STD) (UR GREEN)
-
966V-11631-00-D0 PISTON (STD) (UR PURPLE)PISTON (STD) (UR PURPLE)
-
1066V-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
1166E-11633-00-00 PIN, PISTONPIN, PISTON
-
1293310-422U2-00 BEARINGBEARING
-
1390201-22M04-00 WASHER, PLATEWASHER, PLATE
-
1466E-11634-00-00 CLIP, PISTON PINCLIP, PISTON PIN
-
1566E-45813-10-94 FLANGE, COUPLINGFLANGE, COUPLING
-
1666E-4581J-00-00 RUBBER, SHAFT COUPLINGRUBBER, SHAFT COUPLING
-
1766E-45813-10-94 FLANGE, COUPLINGFLANGE, COUPLING
-
1890201-278T0-00 WASHER, PLATE (YMUS)WASHER, PLATE (YMUS)
