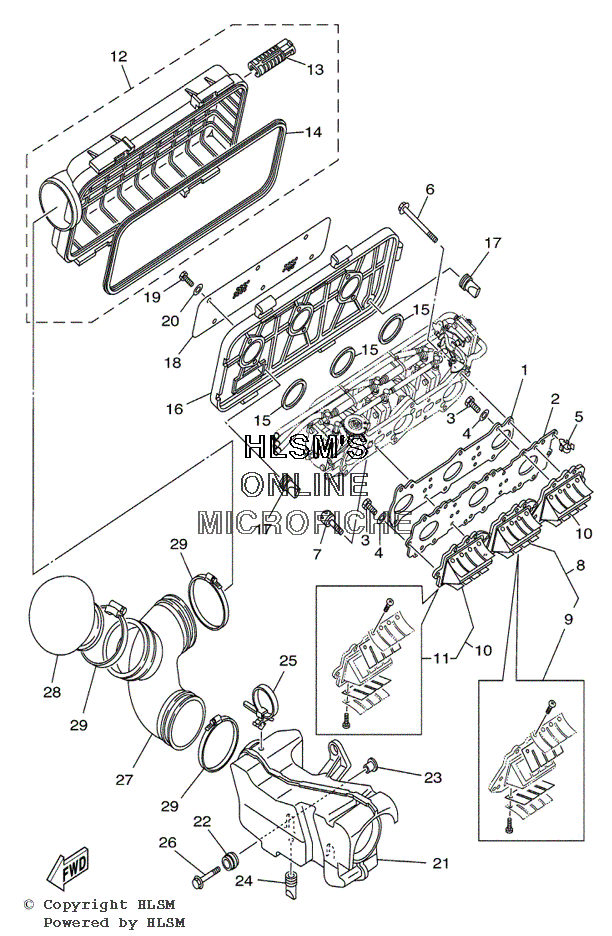

AIR SILENCER W/ INTAKE для Yamaha GP 1200R - 2000 года выпуска`
-
№АртикулНазвание
-
166V-13556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
266V-13624-00-00 PLATE, REED VALVEPLATE, REED VALVE
-
397013-06025-00 BOLTBOLT
-
492903-06600-00 WASHER, PLATEWASHER, PLATE
-
590464-14M55-00 CLAMPCLAMP
-
690105-08M86-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
790109-06M00-00 BOLTBOLT
-
866V-13610-00-00 REED VALVE ASSYREED VALVE ASSY
-
966V-W0004-00-00 ...REED SET...REED SET
-
1066V-13620-00-00 REED VALVE ASSYREED VALVE ASSY
-
1166V-W0004-00-00 ...REED SET...REED SET
-
1266V-14480-01-00 COVER SUB ASSYCOVER SUB ASSY
-
1366V-13898-00-00 ...HOLDER...HOLDER
-
1466V-14457-00-00 ...SEAL...SEAL
-
1566E-13473-00-00 O-RINGO-RING
-
1667X-14284-00-00 COVER, CARBURETOR 2COVER, CARBURETOR 2
-
1767X-42717-00-00 RUBBER, SEAL 2RUBBER, SEAL 2
-
1866V-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
1997013-06045-00 BOLTBOLT
-
2092903-06600-00 WASHER, PLATEWASHER, PLATE
-
2167X-14440-00-00 SILENCER ASSY, INTAKESILENCER ASSY, INTAKE
-
2290480-22M15-00 GROMMETGROMMET
-
2390387-08M37-00 COLLARCOLLAR
-
2467X-42717-00-00 RUBBER, SEAL 2RUBBER, SEAL 2
-
2590464-50001-00 CLAMPCLAMP
-
2690119-08M22-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2767X-14419-00-00 PIPEPIPE
-
2867X-1441J-00-00 PIPE, SILENCERPIPE, SILENCER
-
2990460-99M23-00 CLAMP, HOSECLAMP, HOSE
