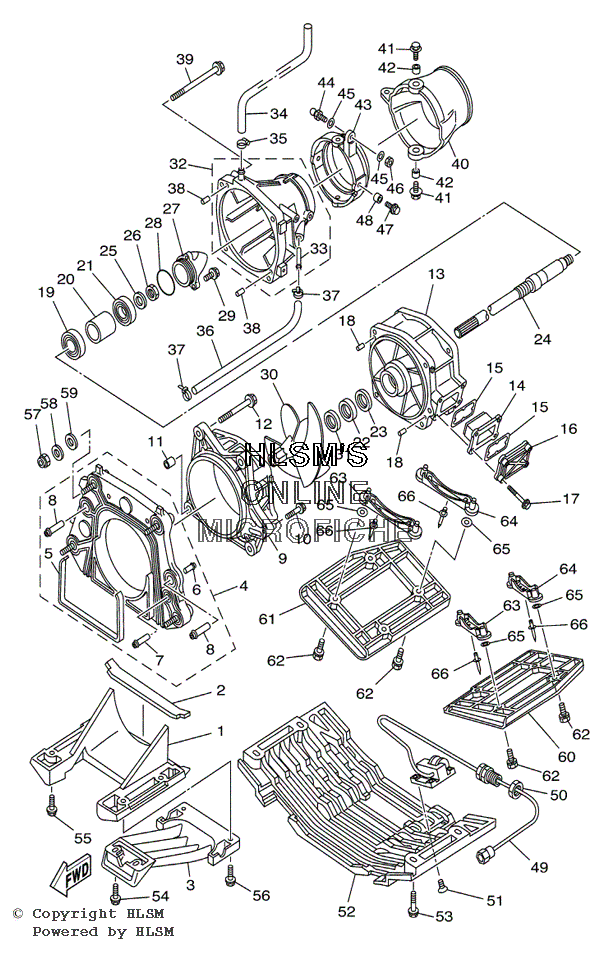

PROPULSION SYSTEM - EXTERNAL для Yamaha GP 1200R - 2000 года выпуска
-
№АртикулНазвание
-
167X-51311-00-94 DUCT, INTAKEDUCT, INTAKE
-
267X-51367-00-00 FELT, PACKINGFELT, PACKING
-
367X-51333-00-94 SCREEN, INTAKESCREEN, INTAKE
-
466V-G5831-00-00 PLATE, TRANSOM (YMUS)PLATE, TRANSOM (YMUS)
-
566V-51367-10-00 ...FELT, PACKING...FELT, PACKING
-
665A-R1129-00-00 ...NIPPLE (YMUS)...NIPPLE (YMUS)
-
766V-51129-01-00 ...NIPPLE...NIPPLE
-
866V-51129-10-00 ...NIPPLE...NIPPLE
-
966V-51312-00-94 HOUSING, IMPELLERHOUSING, IMPELLER
-
1090119-06835-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
1199590-14016-00 PIN, DOWELPIN, DOWEL
-
1290119-10836-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
1366V-51315-00-94 DUCT, IMPELLERDUCT, IMPELLER
-
1466V-46882-00-00 FILTERFILTER
-
1566V-42414-00-00 O-RINGO-RING
-
1666V-45214-00-94 COVER, WATER INLETCOVER, WATER INLET
-
1790119-06800-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
1893606-12019-00 PIN, DOWELPIN, DOWEL
-
1993306-205U0-00 BEARINGBEARING
-
2065V-45538-00-00 SPACER 1SPACER 1
-
2193306-304U1-00 BEARINGBEARING
-
2293101-28M66-00 OIL SEALOIL SEAL
-
2393101-28M65-00 OIL SEALOIL SEAL
-
2466V-45511-00-00 SHAFT, DRIVESHAFT, DRIVE
-
259299R-16600-00 WASHER (YMUS)WASHER (YMUS)
-
269531P-16700-00 NUT (YMUS)NUT (YMUS)
-
2765A-R1326-00-00 CAP (YMUS)CAP (YMUS)
-
2893210-46M16-00 O-RINGO-RING
-
2990119-069UB-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
3066V-R1321-00-00 IMPELLER (YMUS)IMPELLER (YMUS)
-
3166V-R1348-00-00 SPACER (YMUS)SPACER (YMUS)
-
3267X-51318-00-94 NOZZLENOZZLE
-
3363M-51334-00-00 ...NIPPLE, HOSE...NIPPLE, HOSE
-
3467X-51673-00-00 PIPE 1PIPE 1
-
3590601-118UF-00 BAND, HOSE 8 (YMUS)BAND, HOSE 8 (YMUS)
-
3690445-14898-00 HOSE (L270) (YMUS)HOSE (L270) (YMUS)
-
3790465-11829-00 CLAMP (YMUS)CLAMP (YMUS)
-
3893606-12019-00 PIN, DOWELPIN, DOWEL
-
3990119-10837-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
4066V-R1313-01-00 NOZZLE, DEFLECTOR (YMUS)NOZZLE, DEFLECTOR (YMUS)
-
4190119-089UE-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
4290387-08M06-00 COLLARCOLLAR
-
4366G-51190-00-94 RING, TRIMRING, TRIM
-
44GH3-U146E-00-00 STUD, JOINT BALL (YMUS)STUD, JOINT BALL (YMUS)
-
4590201-068M4-00 WASHER, PLATE (YMUS)WASHER, PLATE (YMUS)
-
469538R-06700-00 NUT (YMUS)NUT (YMUS)
-
4790119-089UE-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
4890387-08M06-00 COLLARCOLLAR
-
49GJ1-U8K31-02-00 SENSOR SPEED (YMUS)SENSOR SPEED (YMUS)
-
50EU0-62241-30-00 NUT, DRAIN 1NUT, DRAIN 1
-
519878R-05512-00 SCREW, FLAT HEAD (YMUS)SCREW, FLAT HEAD (YMUS)
-
52F0X-U273B-00-00 PLATE 2PLATE 2
-
5390119-089U6-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
5490119-069UK-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
5590119-089U6-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
5690119-069UB-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
579572R-10300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
-
5890201-10801-00 WASHER, PLATE (YMUS)WASHER, PLATE (YMUS)
-
5990201-109U6-00 WASHER, PLATE (YMUS)WASHER, PLATE (YMUS)
-
60F0X-6884R-00-00 PLATE, STEP 1PLATE, STEP 1
-
61F0X-6884S-00-00 PLATE, STEP 2PLATE, STEP 2
-
6290119-069UD-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
63F0X-6885R-00-00 PLATE, STEP 1PLATE, STEP 1
-
64F0X-6885S-00-00 PLATE, STEP 2PLATE, STEP 2
-
65F0X-62663-01-00 PACKING 1PACKING 1
-
6690267-48806-00 RIVET, BLIND (YMUS)RIVET, BLIND (YMUS)
