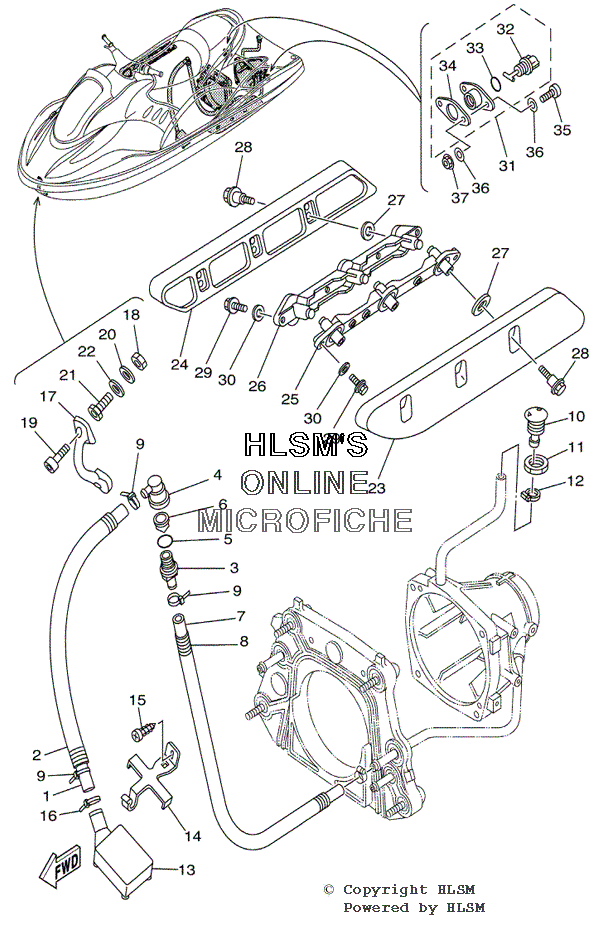

HULL - DESK 1 для Yamaha GP 1200R - 2000 года выпуска
-
№АртикулНазвание
-
190445-198C0-00 HOSE (L1000) (YMUS)HOSE (L1000) (YMUS)
-
290446-27M95-00 HOSEHOSE
-
363M-51162-00-00 JOINT, HOSEJOINT, HOSE
-
463M-51165-00-00 J0INT HOSE 2J0INT HOSE 2
-
593210-22ME5-00 O-RINGO-RING
-
663M-5316M-00-00 VALVE 1VALVE 1
-
790445-198B9-00 HOSE (L650) (YMUS)HOSE (L650) (YMUS)
-
890446-27MF2-00 HOSEHOSE
-
990601-200U1-00 CLAMP, CABLE (TIEWRAP 6") (YMUS)CLAMP, CABLE (TIEWRAP 6") (YMUS)
-
10FN8-6269B-00-00 SPOUTSPOUT
-
11EU0-61652-00-00 NUTNUT
-
1290601-118UF-00 BAND, HOSE 8 (YMUS)BAND, HOSE 8 (YMUS)
-
13GD0-U761D-00-00 STRAINER, BILGE (YMUS)STRAINER, BILGE (YMUS)
-
14EW2-67618-00-00 BASE, STRAINER BLIGEBASE, STRAINER BLIGE
-
159778R-50112-00 SCREW, TAPPING (YMUS)SCREW, TAPPING (YMUS)
-
1690601-200U1-00 CLAMP, CABLE (TIEWRAP 6") (YMUS)CLAMP, CABLE (TIEWRAP 6") (YMUS)
-
17F0X-61624-00-00 BOWEYE 1 (S)BOWEYE 1 (S)
-
18F0X-61652-00-00 NUTNUT
-
1990110-06016-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
20F0X-61637-00-00 WASHERWASHER
-
2199780-12600-00 NUT.HEX(COARS)NUT.HEX(COARS)
-
2292990-12200-00 WASHER, PLAINWASHER, PLAIN
-
23F0X-U883N-00-00 STABILIZER LH (YMUS)STABILIZER LH (YMUS)
-
24F0X-U883P-00-00 STABILIZER RH (YMUS)STABILIZER RH (YMUS)
-
25F0X-6883T-00-00 BRACKET, STABILIZERBRACKET, STABILIZER
-
26F0X-6883V-00-00 BRACKET, STABILIZER 2BRACKET, STABILIZER 2
-
27F0X-6883U-01-00 PACKING, STABILIZERPACKING, STABILIZER
-
28F0X-62624-00-00 BOLTBOLT
-
2990119-069UH-00 BOLT, WITH WASHER (YMUS)BOLT, WITH WASHER (YMUS)
-
3090202-05001-00 WASHER, PLATEWASHER, PLATE
-
31EU0-62280-00-00 DRAIN PLUG ASSYDRAIN PLUG ASSY
-
32EU0-62282-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
33EU0-62283-00-00 ...O-RING...O-RING
-
34EU0-62285-01-00 ...PACKING DRAIN (EU0)...PACKING DRAIN (EU0)
-
359788R-05025-00 SCREW, PAN HEAD (YMUS)SCREW, PAN HEAD (YMUS)
-
369299R-05200-00 WASHER (YMUS)WASHER (YMUS)
-
379572R-05300-00 NUT, FLANGE (YMUS)NUT, FLANGE (YMUS)
