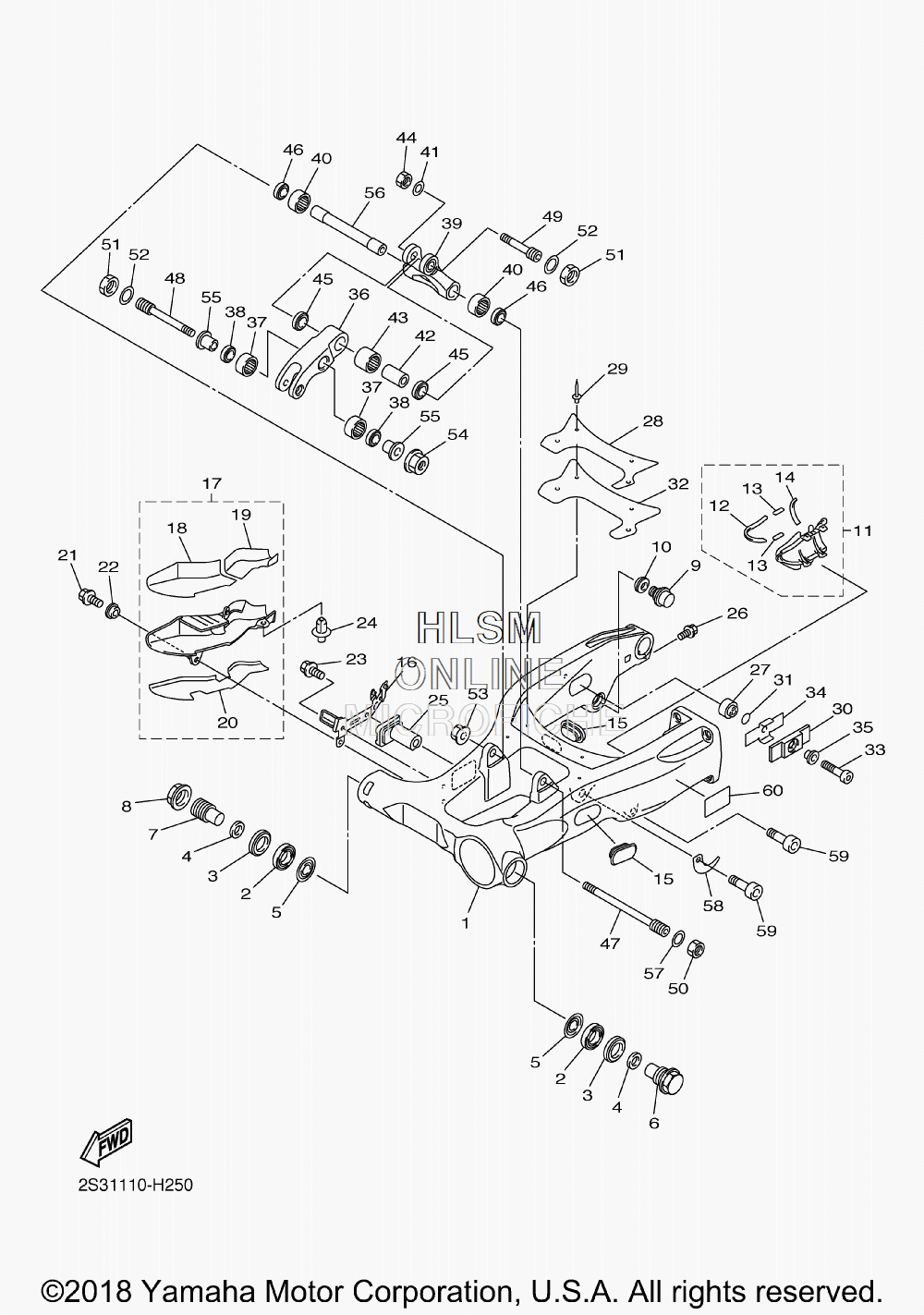

SUSPENSION - REAR ARM для Yamaha VMAX - 2019 года выпуска
-
№АртикулНазвание
-
12S3-22110-00-00 REAR ARM COMP.REAR ARM COMP.
-
293332-00051-00 BEARINGBEARING
-
393106-28003-00 OIL SEALOIL SEAL
-
490387-20031-00 COLLARCOLLAR
-
52S3-2211E-00-00 PANEL, INNER 1PANEL, INNER 1
-
62S3-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
72S3-2214H-00-00 SHAFT, PIVOT 2SHAFT, PIVOT 2
-
890179-28007-00 NUTNUT
-
92S3-2214E-00-00 STOPPER, TORQUESTOPPER, TORQUE
-
102S3-22117-00-00 CAPCAP
-
112S3-22250-00-00 COVER ASSYCOVER ASSY
-
122S3-22218-00-00 ...DAMPER, SHOCK ABSORBER LOWER...DAMPER, SHOCK ABSORBER LOWER
-
132S3-22483-00-00 ...DAMPER 1...DAMPER 1
-
142S3-22492-00-00 ...DAMPER 2...DAMPER 2
-
152S3-22129-00-00 COVER, THRUST 2COVER, THRUST 2
-
162S3-22163-00-00 BRACKETBRACKET
-
172S3-228A0-00-00 COVER ASSY 1COVER ASSY 1
-
182S3-27498-00-00 ...SEAT 1...SEAT 1
-
192S3-27499-00-00 ...SEAT 2...SEAT 2
-
202S3-2749A-00-00 ...SEAT 3...SEAT 3
-
2195022-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2290387-06200-00 COLLARCOLLAR
-
2390105-06081-00 BOLT, FLANGEBOLT, FLANGE
-
2490269-08066-00 RIVETRIVET
-
252S3-2214F-00-00 DAMPER 1DAMPER 1
-
2691314-08035-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
272S3-2214G-00-00 DAMPER 2DAMPER 2
-
282S3-22168-00-00 PATCHPATCH
-
2990267-40172-00 RIVET, BLIND (4X19)RIVET, BLIND (4X19)
-
302S3-21639-00-00 DAMPER 2DAMPER 2
-
312S3-22249-00-00 PLATEPLATE
-
322S3-21649-00-00 DAMPERDAMPER
-
3391314-08040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
342S3-2216B-00-00 BRACKET, 1BRACKET, 1
-
3590387-081N1-00 COLLARCOLLAR
-
362S3-2217A-00-00 ARM, RELAYARM, RELAY
-
3793315-31758-00 BEARINGBEARING
-
3893109-17071-00 OIL SEALOIL SEAL
-
392S3-2217M-00-00 ARM 1ARM 1
-
4093315-31758-00 BEARINGBEARING
-
4190201-12050-00 WASHER, PLATEWASHER, PLATE
-
4290387-123M3-00 COLLARCOLLAR
-
4393315-32053-00 BEARINGBEARING
-
4490185-12119-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4593109-20001-00 OIL SEALOIL SEAL
-
4693109-17071-00 OIL SEALOIL SEAL
-
4790109-10055-00 BOLTBOLT
-
4890109-12017-00 BOLTBOLT
-
4990109-12016-00 BOLTBOLT
-
5090170-16M27-00 NUTNUT
-
5190170-18392-00 NUTNUT
-
5290201-18025-00 WASHER, PLATEWASHER, PLATE
-
5395607-10200-00 NUT, U FLANGENUT, U FLANGE
-
5495607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5590387-12044-00 COLLARCOLLAR
-
5690387-10067-00 COLLARCOLLAR
-
5790201-16022-00 WASHER, PLATEWASHER, PLATE
-
582S3-22131-00-00 STAY, CHAIH CASE 1STAY, CHAIH CASE 1
-
5991312-06014-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
602S3-21668-00-00 LABEL, TIRELABEL, TIRE
