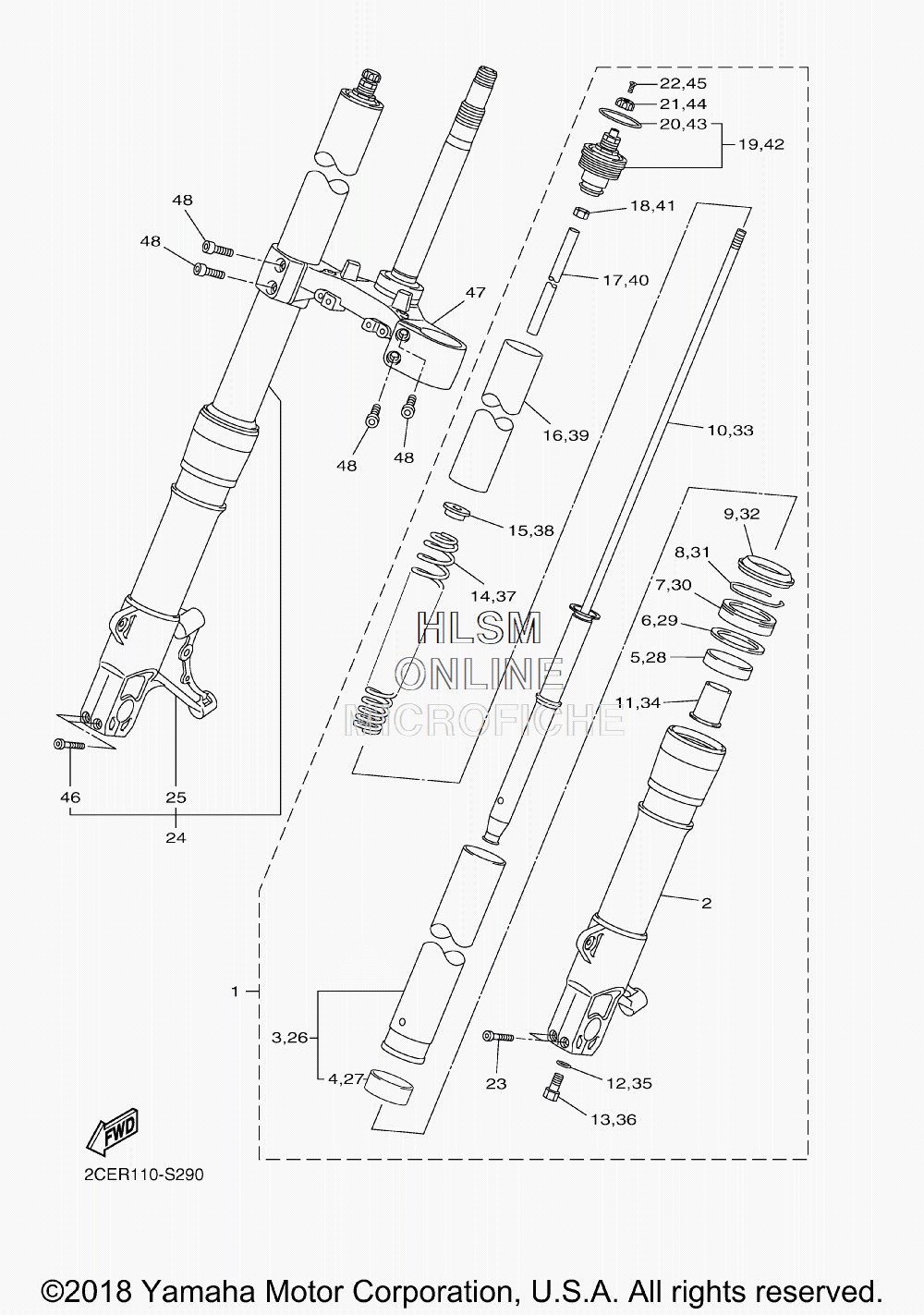

SUSPENSION - FRONT FORK для Yamaha VMAX - 2019 года выпуска`
-
№АртикулНазвание
-
12CE-23102-10-00 FRONT FORK ASSY (LEFT HAND)FRONT FORK ASSY (LEFT HAND)
-
22CE-23106-10-00 ...OUTER TUBE COMP....OUTER TUBE COMP.
-
32CE-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
42S3-23135-00-00 ......METAL, SLIDE 2......METAL, SLIDE 2
-
52S3-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
62S3-23115-00-00 ...SEAT 1...SEAT 1
-
72S3-23145-00-00 ...OIL SEAL...OIL SEAL
-
82CE-23156-00-00 ...RING, SNAP...RING, SNAP
-
92S3-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
102CE-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
115UX-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
12509-23158-L0-00 ...GASKET (KYB)...GASKET (KYB)
-
135UX-23181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
142CE-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
152CE-23142-00-00 ...SEAT, SPRING UPPER...SEAT, SPRING UPPER
-
162CE-23104-00-00 ...REINF. COMP....REINF. COMP.
-
172CE-23118-00-00 ...SPACER...SPACER
-
185UX-23778-00-00 ...NUT...NUT
-
192CE-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
20CS4-43862-40-00 ......O-RING......O-RING
-
215JW-2319W-00-00 ...KNOB (TEN)...KNOB (TEN)
-
221MC-23119-10-00 ...SCREW...SCREW
-
2391314-08045-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
242CE-23103-10-00 FRONT FORK ASSY (RIGHT HAND)FRONT FORK ASSY (RIGHT HAND)
-
252CE-23107-10-00 ...OUTER TUBE COMP....OUTER TUBE COMP.
-
262CE-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
272S3-23135-00-00 ......METAL, SLIDE 2......METAL, SLIDE 2
-
282S3-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
292S3-23115-00-00 ...SEAT 1...SEAT 1
-
302S3-23145-00-00 ...OIL SEAL...OIL SEAL
-
312CE-23156-00-00 ...RING, SNAP...RING, SNAP
-
322S3-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
332CE-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
345UX-23173-00-00 ...SPINDLE, TAPER...SPINDLE, TAPER
-
35509-23158-L0-00 ...GASKET (KYB)...GASKET (KYB)
-
365UX-23181-00-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
372CE-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
382CE-23142-00-00 ...SEAT, SPRING UPPER...SEAT, SPRING UPPER
-
392CE-23104-00-00 ...REINF. COMP....REINF. COMP.
-
402CE-23118-00-00 ...SPACER...SPACER
-
415UX-23778-00-00 ...NUT...NUT
-
422CE-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
43CS4-43862-40-00 ......O-RING......O-RING
-
445JW-2319W-00-00 ...KNOB (TEN)...KNOB (TEN)
-
451MC-23119-10-00 ...SCREW...SCREW
-
4691314-08045-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
472CE-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
4891314-08025-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
