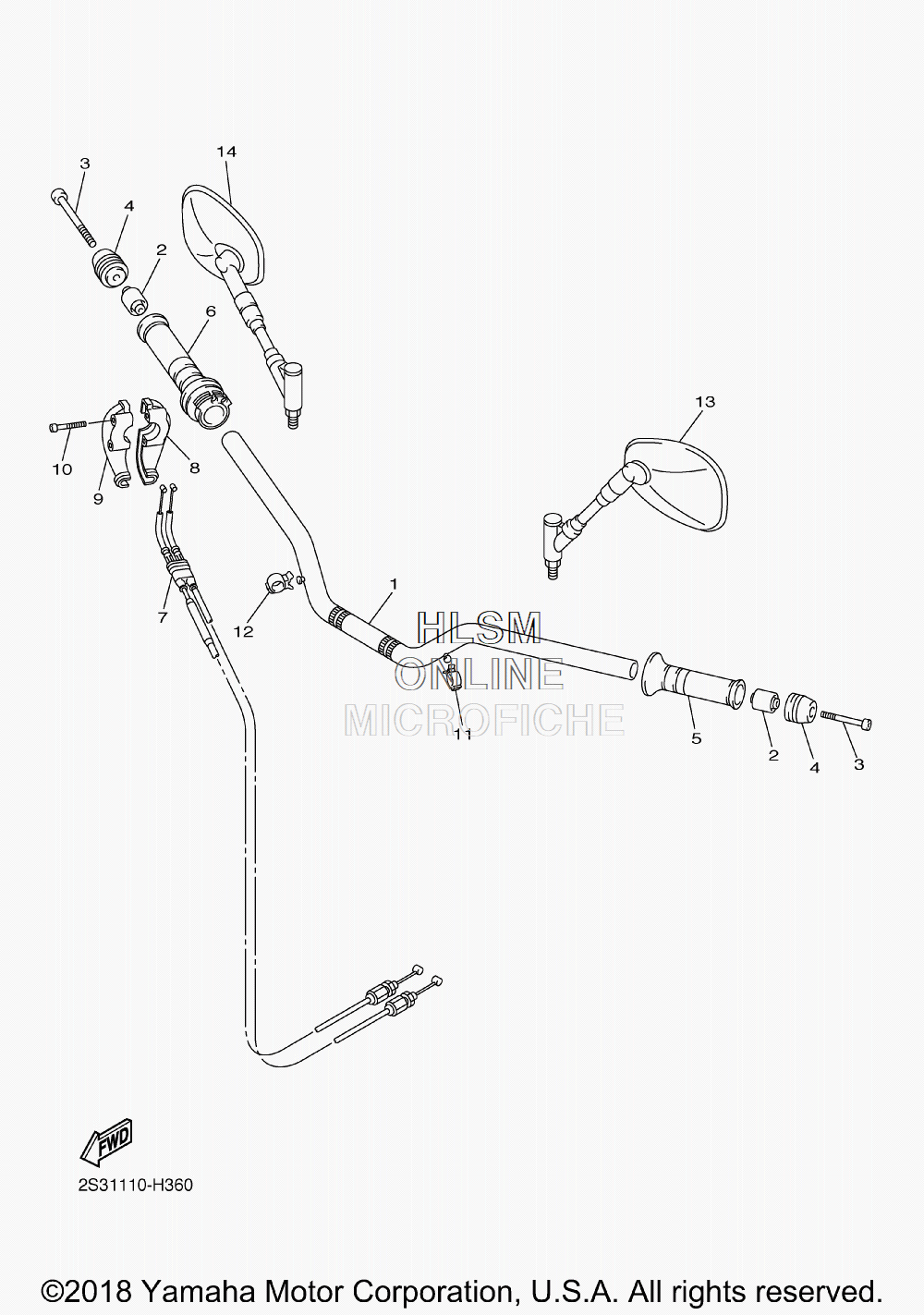

HANDLEBAR W/ CABLES для Yamaha VMAX - 2019 года выпуска`
-
№АртикулНазвание
-
12S3-26111-10-00 HANDLEBARHANDLEBAR
-
24JH-23434-00-00 HOLDER, DAMPERHOLDER, DAMPER
-
391314-06040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
42S3-26246-10-00 END, GRIPEND, GRIP
-
54YR-26241-02-00 GRIP (LEFT)GRIP (LEFT)
-
64YR-26240-02-00 GRIP ASSY (RIGHT)GRIP ASSY (RIGHT)
-
72S3-26302-01-00 THROTTLE CABLE ASSYTHROTTLE CABLE ASSY
-
85VY-26281-00-00 CAP, GRIP UPPERCAP, GRIP UPPER
-
93XW-26282-01-00 CAP GRIPCAP GRIP
-
1090110-05018-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1190464-15192-00 CLAMPCLAMP
-
1290464-10190-00 CLAMPCLAMP
-
132S3-26280-10-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
142S3-26290-10-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
