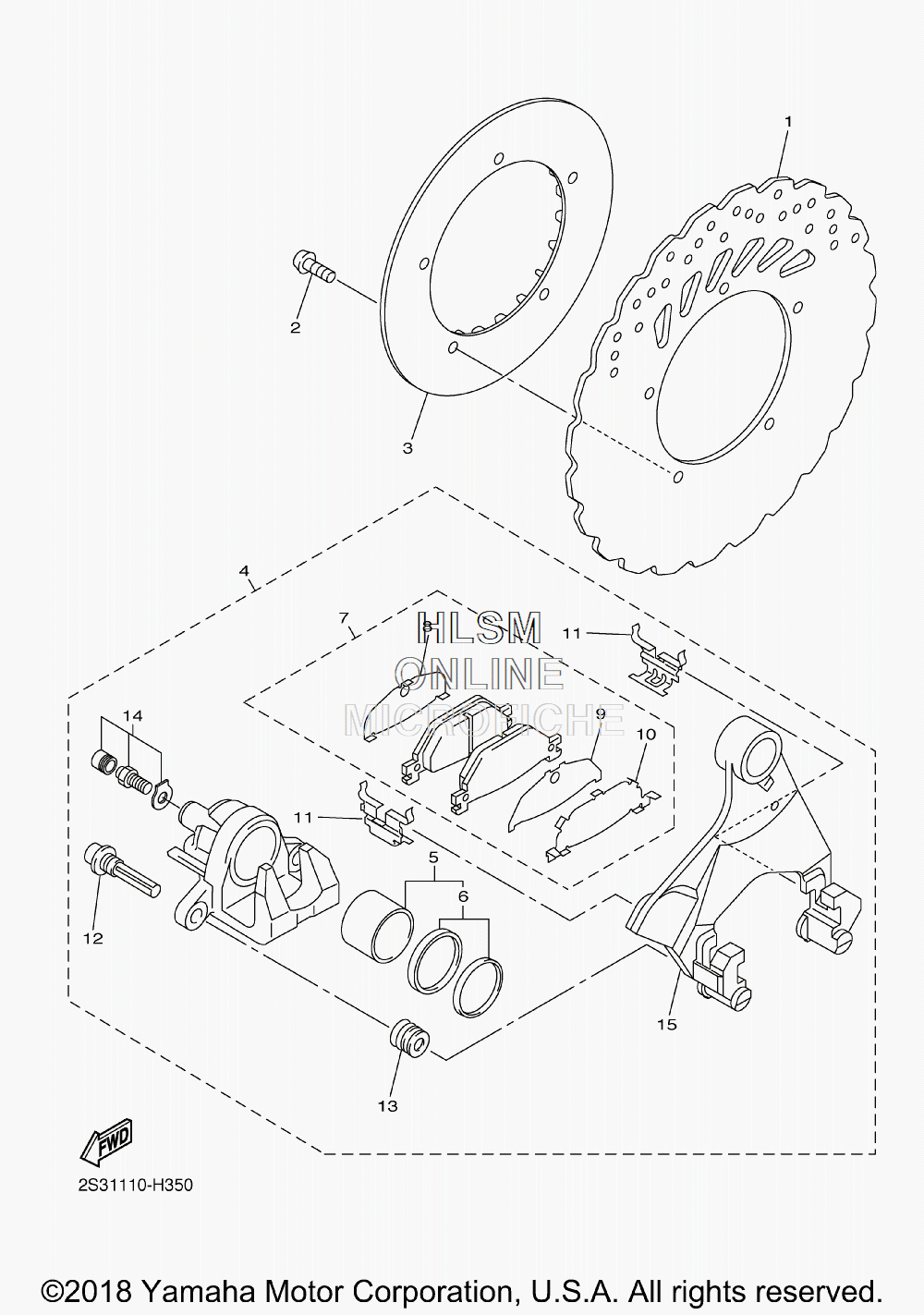

BRAKE - REAR CALIPER для Yamaha VMAX - 2019 года выпуска`
-
№АртикулНазвание
-
12S3-2582W-00-00 DISC, REAR BRAKE 2DISC, REAR BRAKE 2
-
290149-08024-00 SCREWSCREW
-
32S3-2581A-10-00 PLATE, DISCPLATE, DISC
-
42S3-2580W-01-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
51D7-W0057-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
65JW-W0047-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
72S3-W0046-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
81B7-25828-00-00 ......SHIM, CALIPER......SHIM, CALIPER
-
91B7-25827-00-00 ......SHIM, CALIPER......SHIM, CALIPER
-
102S3-25827-00-00 ......SHIM, CALIPER......SHIM, CALIPER
-
111D7-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
123P6-25914-00-00 ...PIN, SLIDE...PIN, SLIDE
-
134TT-25937-00-00 ...BOOT 2...BOOT 2
-
145RU-W0048-00-00 ...BLEED SCREW KIT...BLEED SCREW KIT
-
152S3-25921-00-00 ...BRACKET, SUPPORT...BRACKET, SUPPORT
