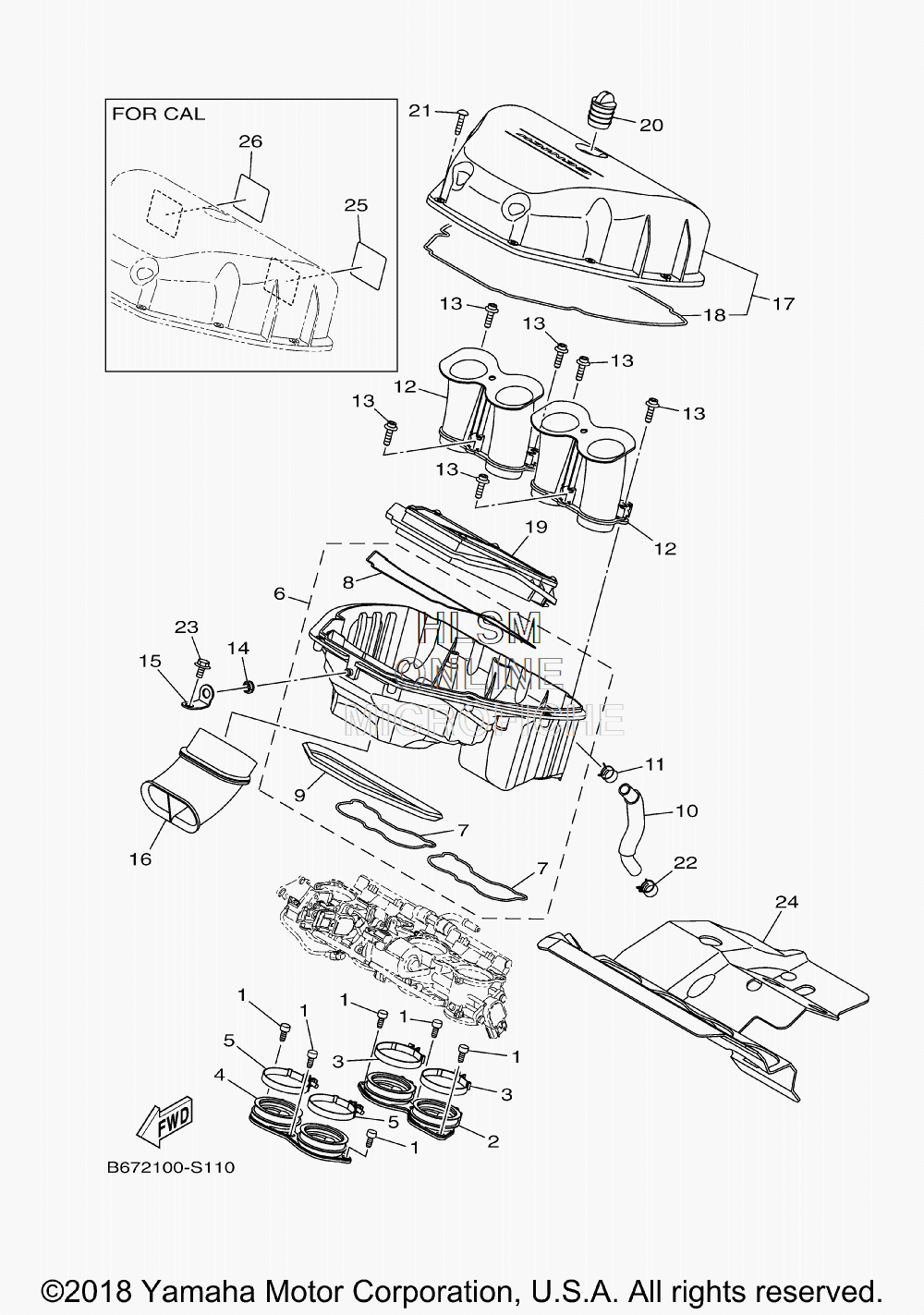

INTAKE для Yamaha MT10 - 2019 года выпуска
-
№АртикулНазвание
-
190110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
22CR-13635-00-00 JOINT, INTAKE 1JOINT, INTAKE 1
-
390450-60004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
42CR-13636-00-00 JOINT, INTAKE 2JOINT, INTAKE 2
-
590450-60004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
6B67-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
72CR-14457-00-00 ...SEAL...SEAL
-
82CR-14462-00-00 ...SEAL...SEAL
-
92CR-14425-00-00 ...DAMPER 1...DAMPER 1
-
102CR-15393-00-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
1190467-15001-00 CLIPCLIP
-
12B67-14469-00-00 FUNNEL, AIRFUNNEL, AIR
-
1390110-06163-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1490480-12010-00 GROMMETGROMMET
-
15B67-14498-00-00 STAY 1STAY 1
-
16B67-14437-00-00 DUCTDUCT
-
17B67-14421-00-00 CASE, AIR CLEANER 2CASE, AIR CLEANER 2
-
182CR-14452-00-00 ...SEAL...SEAL
-
192CR-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
205VY-14862-00-00 PLUGPLUG
-
2190160-05013-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
2290467-160A6-00 CLIPCLIP
-
2390119-06051-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
242CR-12682-10-00 PROTECTOR, HEATPROTECTOR, HEAT
-
2514B-21684-00-00 PLATE, ROUTING (CALIF ONLY)PLATE, ROUTING (CALIF ONLY)
-
262CR-21686-00-00 PLATE, ROUTING 2 (CALIF ONLY)PLATE, ROUTING 2 (CALIF ONLY)
