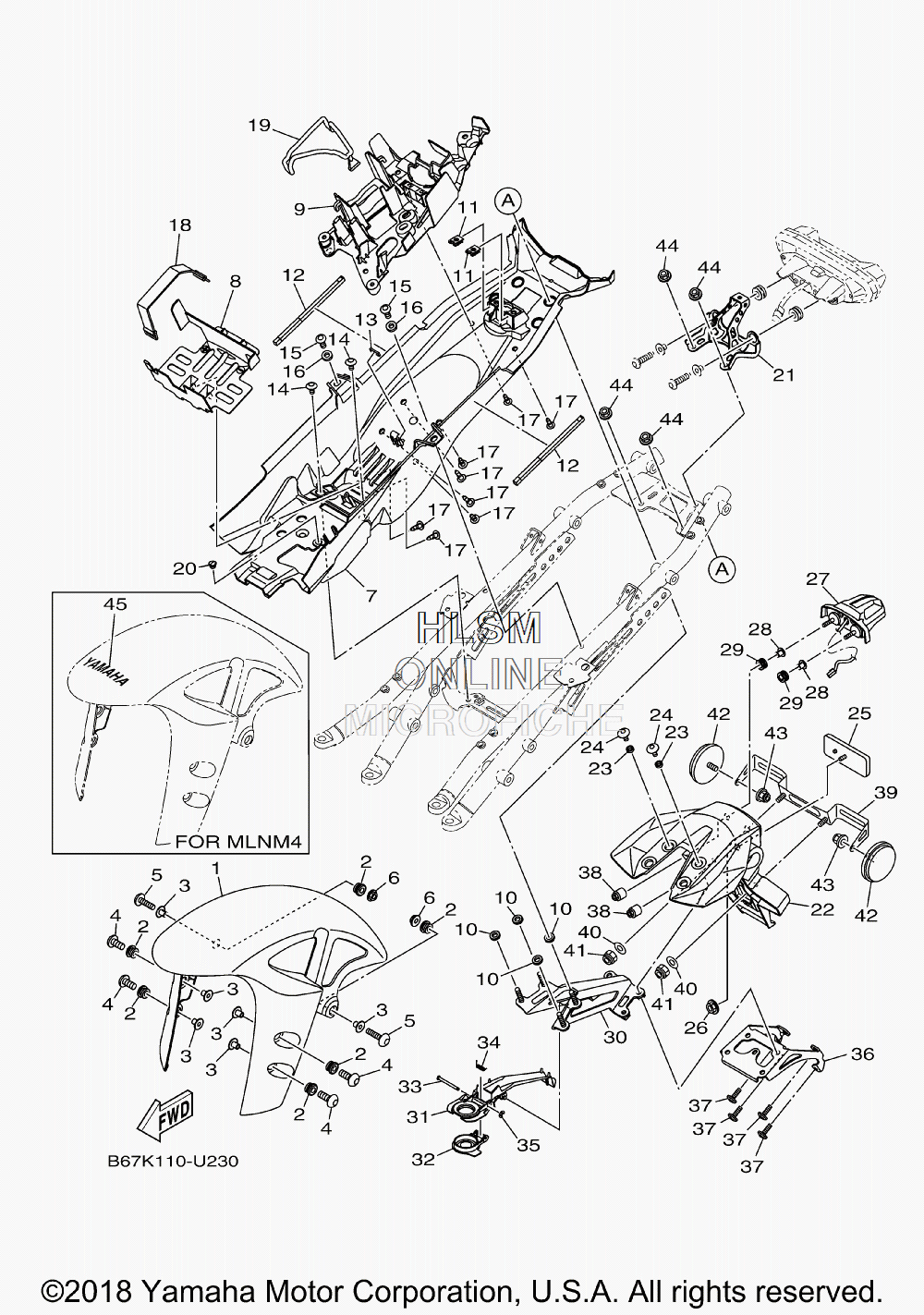

FENDER - FRONT / REAR для Yamaha MT10 - 2019 года выпуска
-
№АртикулНазвание
-
114B-21511-00-P9 FENDER, FRONT (MDNM6 - DARK GRAY)FENDER, FRONT (MDNM6 - DARK GRAY)
-
114B-21511-00-PE FENDER, FRONT (MLNM4 - LIGHT GRAY)FENDER, FRONT (MLNM4 - LIGHT GRAY)
-
290480-12072-00 GROMMETGROMMET
-
390387-065J6-00 COLLARCOLLAR
-
490111-06043-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
590111-06030-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
695702-06500-00 NUT, FLANGENUT, FLANGE
-
7B67-8212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
8B67-8212C-00-00 BOX, BATTERY 2BOX, BATTERY 2
-
9B67-2162G-00-00 PLATE 1PLATE 1
-
1090560-08326-00 SPACERSPACER
-
1190183-06069-00 NUT, SPRINGNUT, SPRING
-
121B7-2834E-00-00 DAMPER 3DAMPER 3
-
1390520-01001-00 DAMPER, PLATEDAMPER, PLATE
-
1490109-06201-00 BOLTBOLT
-
1590269-07077-00 RIVETRIVET
-
1690202-07015-00 WASHER, PLATEWASHER, PLATE
-
1790269-06008-00 RIVETRIVET
-
18133-82131-00-00 BAND, BATTERYBAND, BATTERY
-
193YX-21376-00-00 BAND, TOOLBAND, TOOL
-
2090338-07043-00 PLUGPLUG
-
21B67-2117E-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
221RC-21629-01-00 GUARD, MUDGUARD, MUD
-
2390387-06372-00 COLLARCOLLAR
-
2490111-06061-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
253Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
2695602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
27B67-84745-00-00 LICENSE LIGHT UNIT ASSYLICENSE LIGHT UNIT ASSY
-
2890387-05042-00 COLLARCOLLAR
-
2990480-11009-00 GROMMETGROMMET
-
30B67-2164F-00-00 STAY 1STAY 1
-
31B67-2163E-00-00 COVER, REAR FENDER 2COVER, REAR FENDER 2
-
321RC-2465B-00-00 CAP, ROTORCAP, ROTOR
-
3390249-03002-00 PINPIN
-
3490508-09007-00 SPRING, TORSIONSPRING, TORSION
-
3593430-02001-00 CIRCLIPCIRCLIP
-
361RC-21682-00-00 STAY, PLATESTAY, PLATE
-
3790160-05012-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
381RC-2622H-00-00 WEIGHTWEIGHT
-
391RC-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
4092902-06600-00 WASHER, PLATEWASHER, PLATE
-
4195607-06100-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
42449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
4395707-05500-00 NUT, FLANGENUT, FLANGE
-
4495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4599244-00080-00 EMBLEM, YAMAHA (MLNM4 - LIGHT GRAY)EMBLEM, YAMAHA (MLNM4 - LIGHT GRAY)
