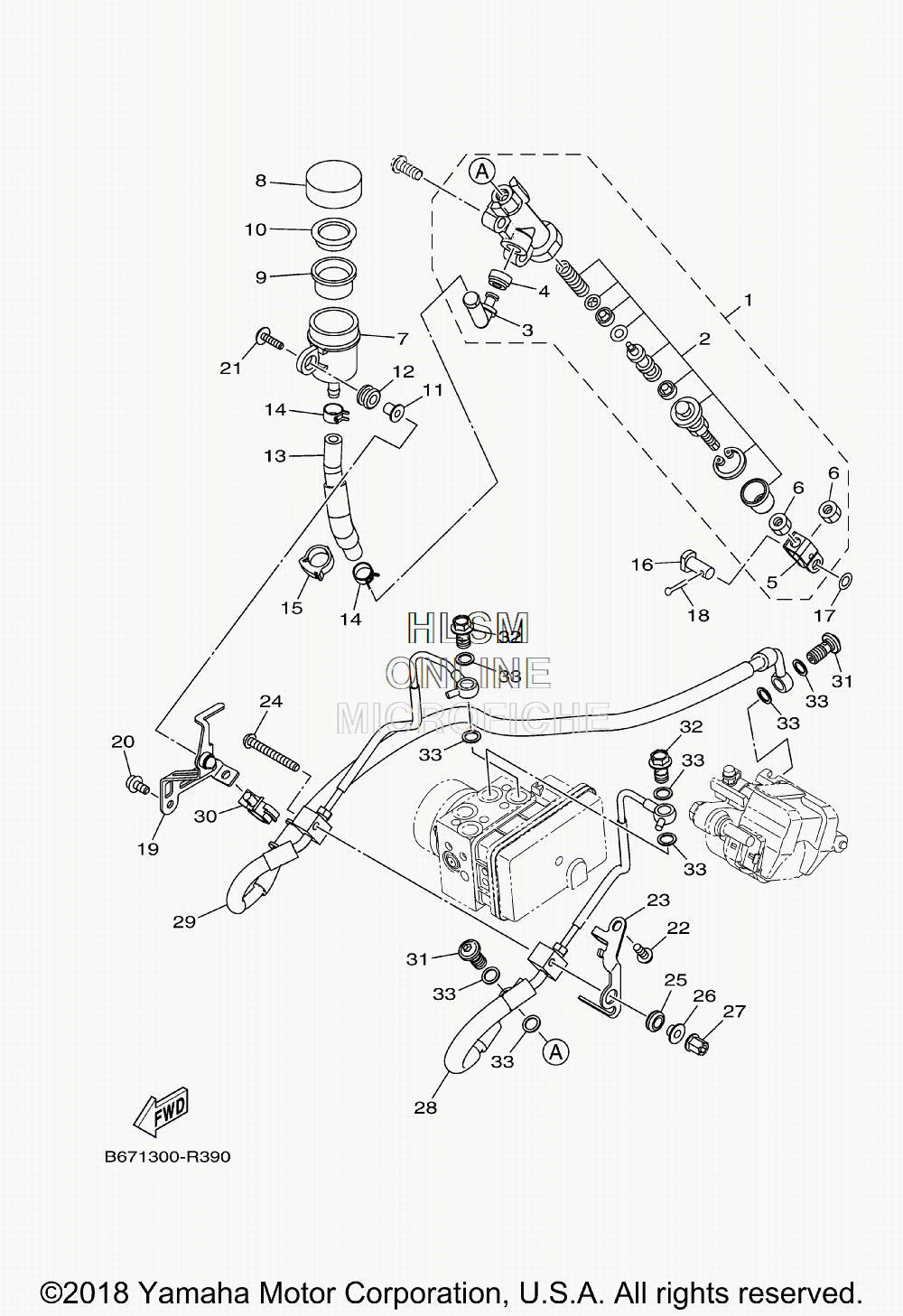

BRAKE - REAR MASTER CYLINDER для Yamaha MT10 - 2019 года выпуска`
-
№АртикулНазвание
-
156P-2583V-00-00 REAR MASTER CYLINDER ASSYREAR MASTER CYLINDER ASSY
-
256P-25808-50-00 ...CYLINDER KIT, MASTER...CYLINDER KIT, MASTER
-
32D1-2582A-00-00 ...JOINT...JOINT
-
44BP-2585F-01-00 ...O-RING...O-RING
-
54BP-27222-02-00 ...JOINT...JOINT
-
690170-08010-00 ...NUT...NUT
-
72C0-25894-00-00 TANK, RESERVOIRTANK, RESERVOIR
-
82C0-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
92VN-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
102VN-25855-00-00 BUSH, DIAPHRAGMBUSH, DIAPHRAGM
-
1190387-05028-00 COLLARCOLLAR
-
122C0-26326-00-00 GROMMETGROMMET
-
13B67-25895-00-00 HOSE, RESERVOIRHOSE, RESERVOIR
-
1490467-120A3-00 CLIPCLIP
-
1590464-16001-00 CLAMPCLAMP
-
1690240-08005-00 PIN, CLEVISPIN, CLEVIS
-
1790201-08066-00 WASHER, PLATEWASHER, PLATE
-
1891401-20012-00 PIN, COTTERPIN, COTTER
-
19B67-21228-00-00 BRACKET, RESERVE TANKBRACKET, RESERVE TANK
-
2090109-060E9-00 BOLTBOLT
-
2190111-05026-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2292017-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
23B67-2122A-00-00 STAY 1STAY 1
-
2490109-06N29-00 BOLTBOLT
-
2590480-12024-00 GROMMETGROMMET
-
2690387-06142-00 COLLARCOLLAR
-
2790179-06033-00 NUTNUT
-
28B67-2581J-00-00 HOSE, BRAKE 4HOSE, BRAKE 4
-
29B67-2581K-00-00 HOSE, BRAKE 5HOSE, BRAKE 5
-
3090464-14013-00 CLAMPCLAMP
-
3190401-10172-00 BOLT, UNIONBOLT, UNION
-
3290401-10049-00 BOLT, UNIONBOLT, UNION
-
3390430-10005-00 GASKETGASKET
