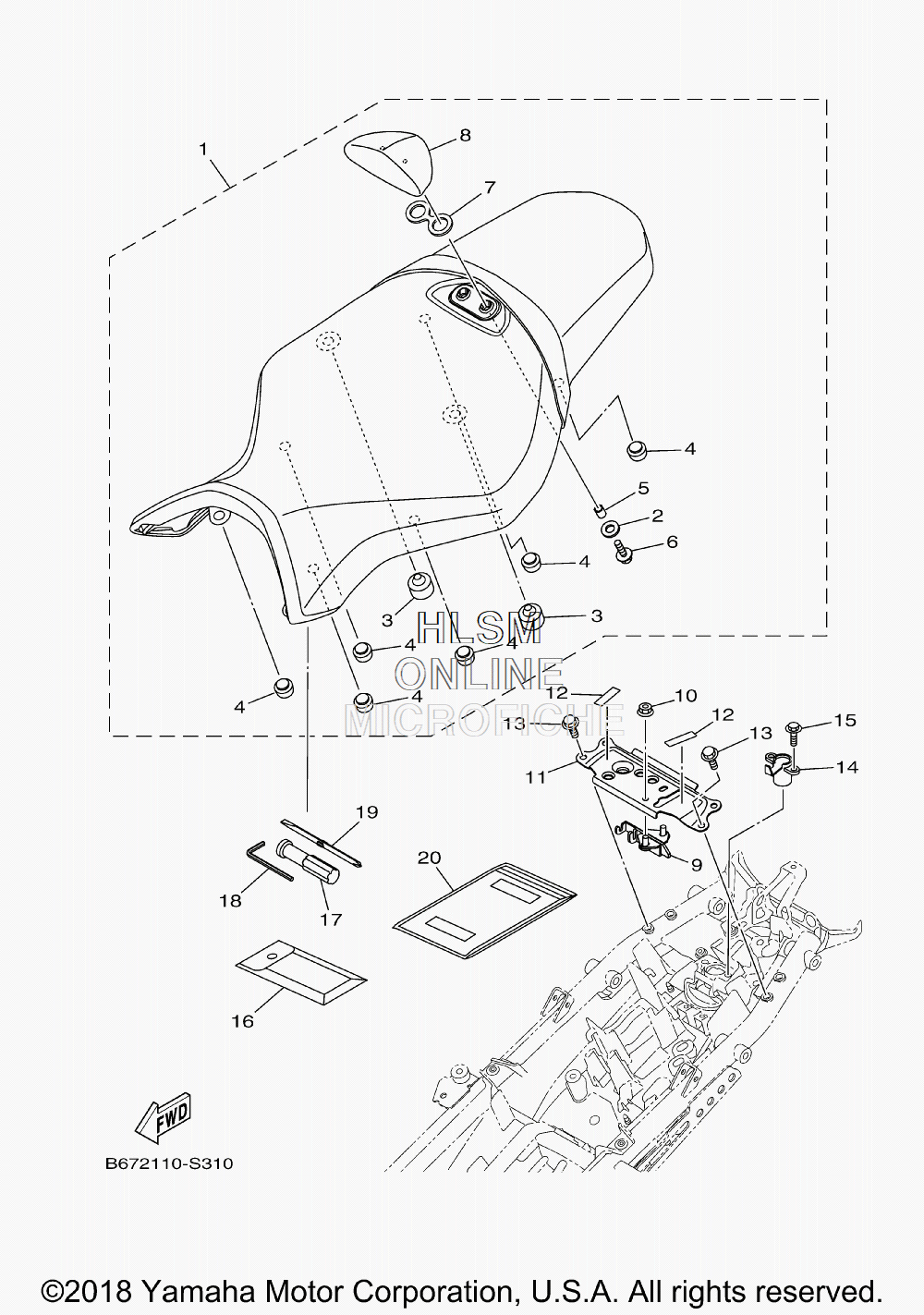

SEAT для Yamaha MT10 - 2019 года выпуска`
-
№АртикулНазвание
-
1B67-24730-01-00 DOUBLE SEAT ASSYDOUBLE SEAT ASSY
-
290201-06085-00 ...WASHER, PLATE...WASHER, PLATE
-
34GL-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
4157-27114-00-00 ...STOPPER, MAIN STAND...STOPPER, MAIN STAND
-
55BN-2475Y-00-00 ...COLLAR...COLLAR
-
695822-06020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
7B67-28429-00-00 ...SEAL 2...SEAL 2
-
8B67-24790-00-00 ...SEAT BACK ASSY...SEAT BACK ASSY
-
94BP-24780-00-00 SEAT LOCK ASSYSEAT LOCK ASSY
-
1095702-06500-00 NUT, FLANGENUT, FLANGE
-
11B67-2478X-00-00 BRACKET, SEAT LOCKBRACKET, SEAT LOCK
-
123P6-28228-00-00 SEAL 2SEAL 2
-
1395022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
141RC-W2470-00-00 ROTOR SETROTOR SET
-
1595022-06014-00 BOLT, FLANGEBOLT, FLANGE
-
16B67-28100-00-00 TOOL KITTOOL KIT
-
172H7-28151-00-00 GRIP, DRIVERGRIP, DRIVER
-
1823P-28164-00-00 WRENCH, HEXAGON 8WRENCH, HEXAGON 8
-
19137-28152-00-00 DRIVERDRIVER
-
204KG-28186-10-00 POUCHPOUCH
