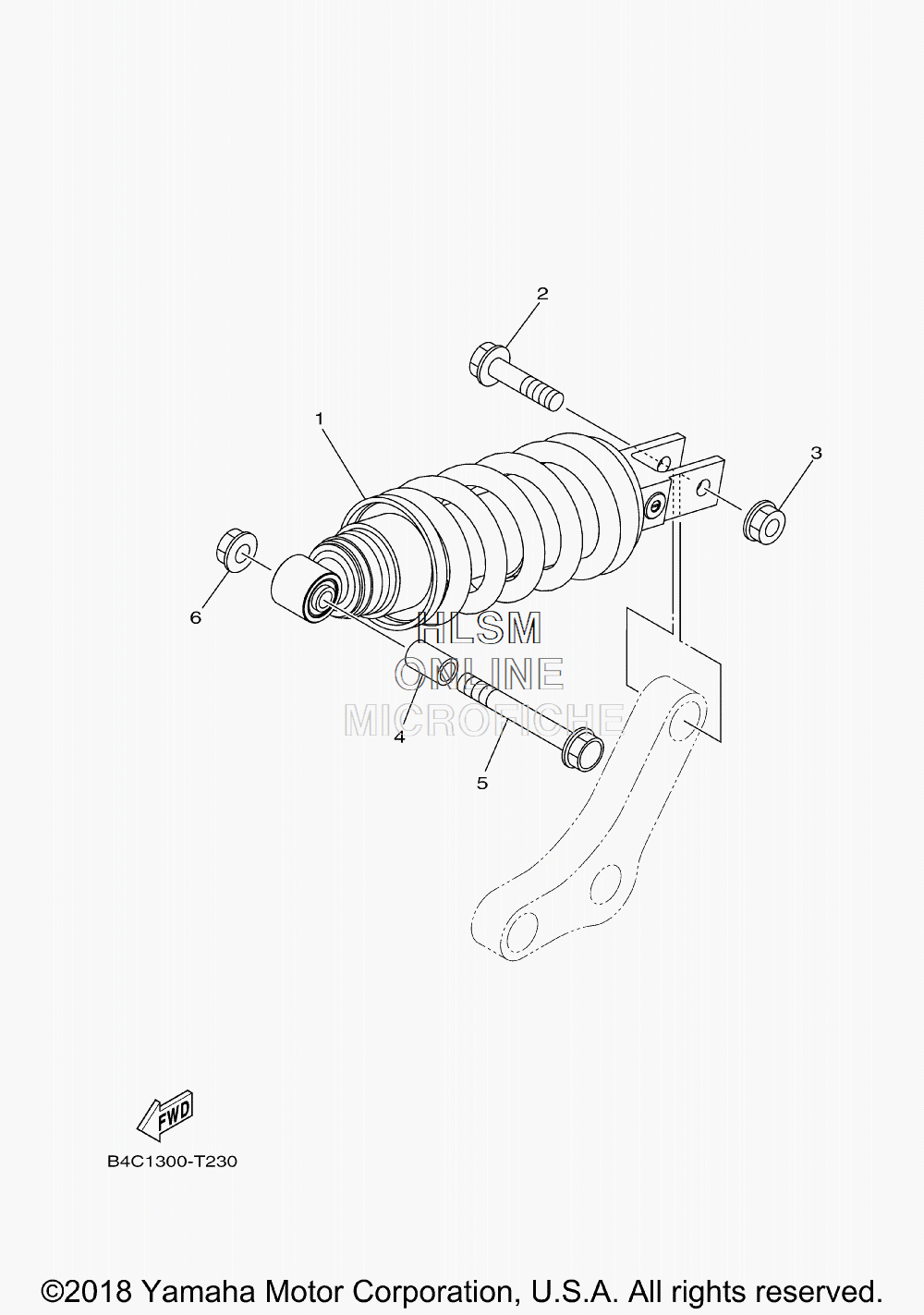

SUSPENSION - REAR SHOCK ABSORBER для Yamaha MT07 - 2019 года выпуска`
-
№АртикулНазвание
-
1B4C-22210-10-00 SHOCK ABSORBER ASSY, REAR (MDNM6 - DARK GRAY)SHOCK ABSORBER ASSY, REAR (MDNM6 - DARK GRAY)
-
1B4C-22210-10-00 SHOCK ABSORBER ASSY, REAR (BSA - BLUE SOLID A)SHOCK ABSORBER ASSY, REAR (BSA - BLUE SOLID A)
-
1B4C-22210-60-00 SHOCK ABSORBER ASSY, REAR (MLNM4 - LIGHT GRAY)SHOCK ABSORBER ASSY, REAR (MLNM4 - LIGHT GRAY)
-
290105-10283-00 BOLT, FLANGEBOLT, FLANGE
-
395602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
490387-1012A-00 COLLARCOLLAR
-
590105-10212-00 BOLT, FLANGEBOLT, FLANGE
-
695602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
