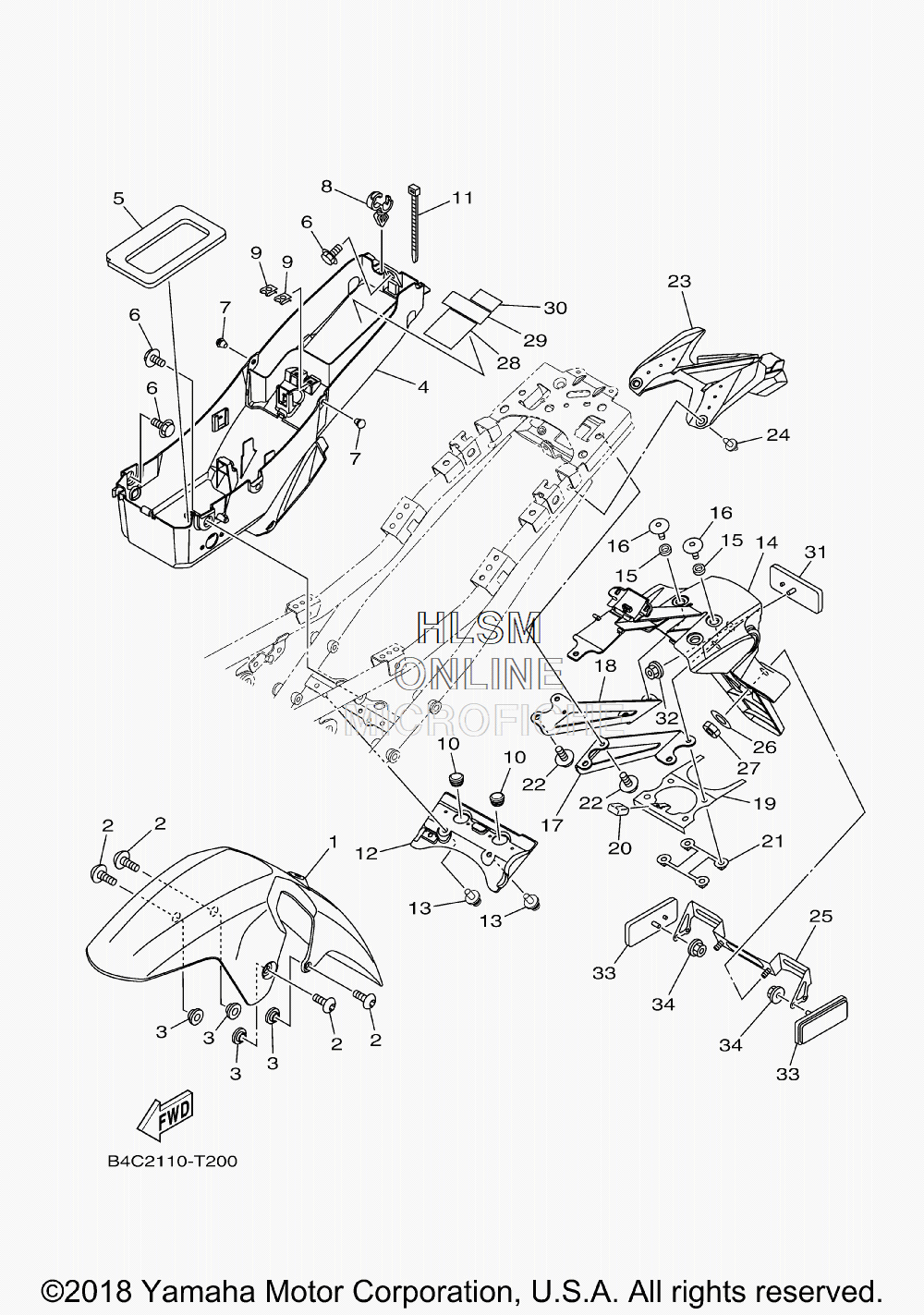

FENDER - FRONT / REAR для Yamaha MT07 - 2019 года выпуска`
-
№АртикулНазвание
-
1B4C-21511-00-00 FENDER, FRONTFENDER, FRONT
-
290111-06151-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
390387-06153-00 COLLARCOLLAR
-
41WS-8212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
51WS-21639-00-00 DAMPER 2DAMPER 2
-
690109-06202-00 BOLTBOLT
-
790338-06018-00 PLUGPLUG
-
890464-18002-00 CLAMPCLAMP
-
990183-04039-00 NUT, SPRINGNUT, SPRING
-
1090480-14100-00 GROMMETGROMMET
-
1190465-13275-00 CLAMPCLAMP
-
121WS-21642-00-00 GUARD, FLAPGUARD, FLAP
-
1390269-06002-00 RIVETRIVET
-
141WS-21629-00-00 GUARD, MUDGUARD, MUD
-
1590387-06372-00 COLLARCOLLAR
-
1690111-06089-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
171WS-2164F-00-00 STAY 1STAY 1
-
181WS-2164G-00-00 STAY 2STAY 2
-
191WS-21682-00-00 STAY, PLATESTAY, PLATE
-
201WS-21746-00-00 DAMPERDAMPER
-
211WS-2161G-00-00 BRACKET 6BRACKET 6
-
2290105-06205-00 BOLT, FLANGEBOLT, FLANGE
-
231WS-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
2490269-07008-00 RIVETRIVET
-
252RC-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
2692902-06600-00 WASHER, PLATEWASHER, PLATE
-
2795602-06100-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
284B5-21686-00-00 PLATE, ROUTING 2 (CALIF ONLY)PLATE, ROUTING 2 (CALIF ONLY)
-
293JJ-28446-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
303SA-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
313Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
3295602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
333Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
3495702-05500-00 NUT, FLANGENUT, FLANGE
