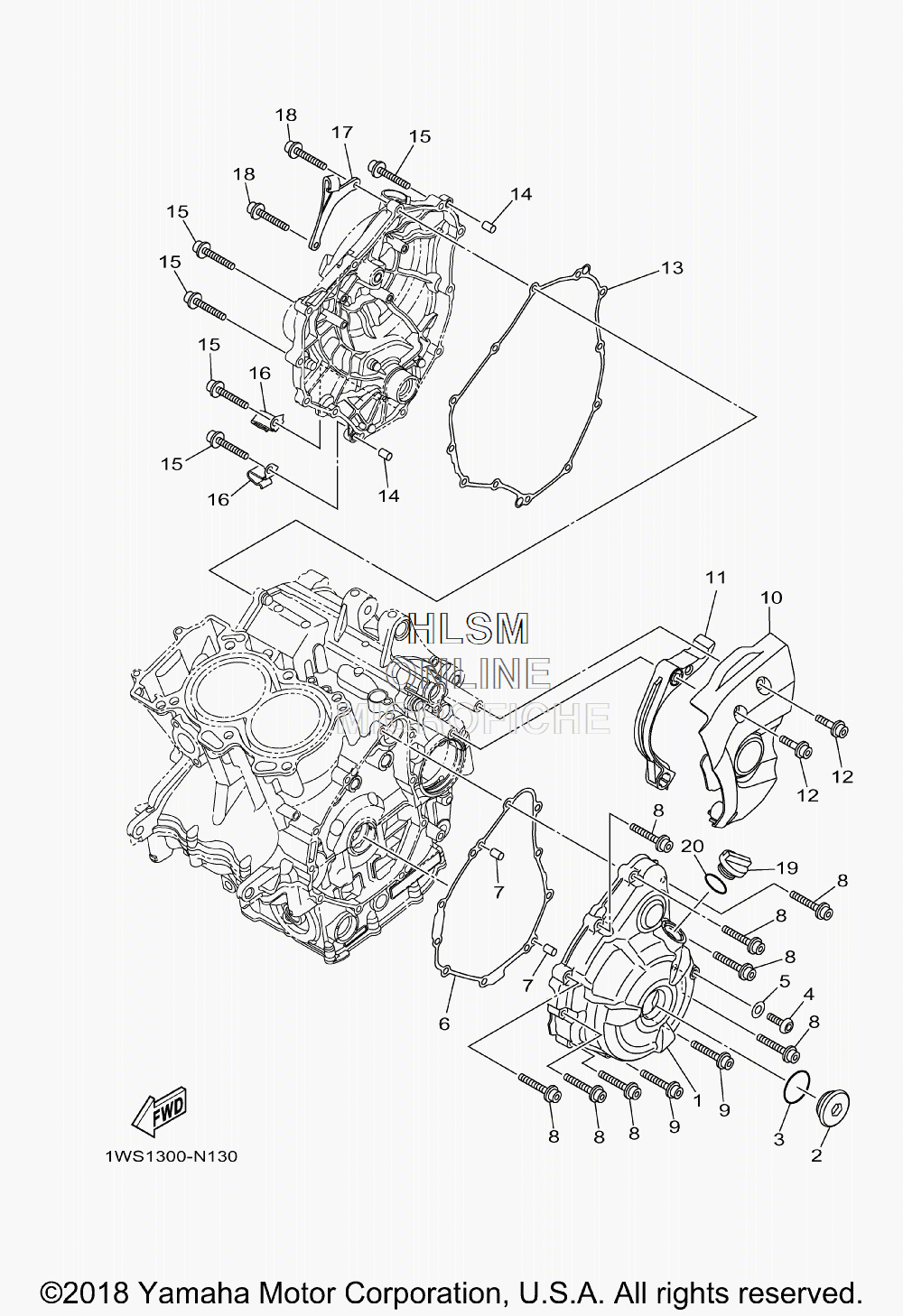

CRANKCASE COVER для Yamaha MT07 - 2019 года выпуска`
-
№АртикулНазвание
-
11WS-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
290340-36005-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
393210-357A3-00 O-RINGO-RING
-
492017-08012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
590430-08143-00 GASKETGASKET
-
61WS-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
799530-08012-00 PIN, DOWELPIN, DOWEL
-
890110-06388-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
990110-06389-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
101WS-15418-00-00 COVER, CHAIN CASECOVER, CHAIN CASE
-
111WS-15377-00-00 GUIDE, INLETGUIDE, INLET
-
1290110-06395-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
131WS-15461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
1499530-08012-00 PIN, DOWELPIN, DOWEL
-
1590110-06388-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
1690465-08045-00 CLAMPCLAMP
-
171WS-15441-00-00 HOLDER, CLUTCH CABLEHOLDER, CLUTCH CABLE
-
1890110-06389-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
193F9-15362-10-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
2093210-27194-00 O-RINGO-RING
