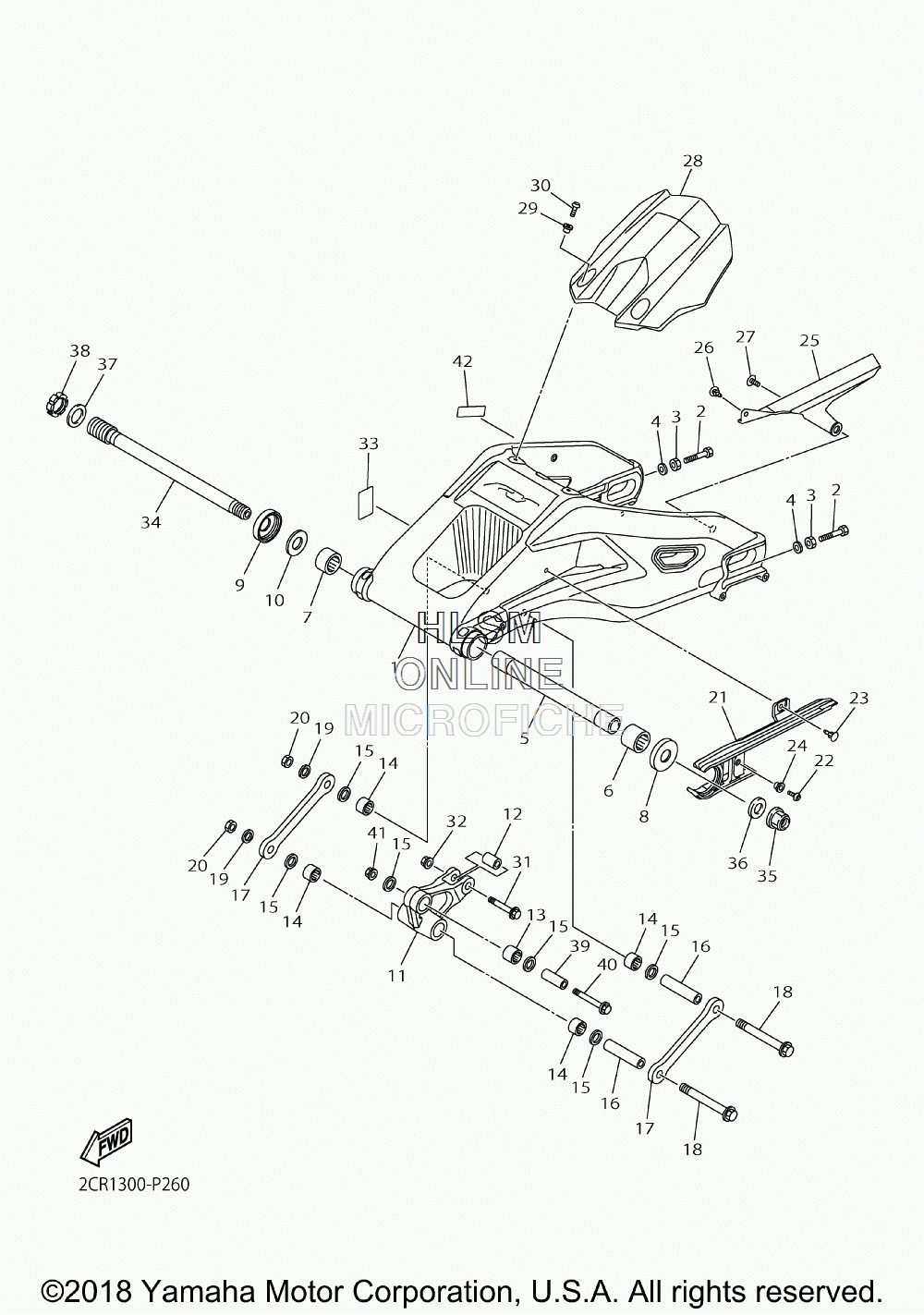

SUSPENSION - REAR ARM для Yamaha YZFR1S - 2018 года выпуска`
-
№АртикулНазвание
-
12CR-22110-00-00 REAR ARM COMP.REAR ARM COMP.
-
290101-08013-00 BOLTBOLT
-
395302-08600-00 NUT, HEXAGONNUT, HEXAGON
-
490201-08057-00 WASHER, PLATEWASHER, PLATE
-
52CR-22184-00-00 BUSHBUSH
-
693317-52897-00 BEARINGBEARING
-
793317-428U8-00 BEARINGBEARING
-
85VY-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
94C8-22128-00-00 COVER, THRUST 1COVER, THRUST 1
-
1090201-22019-00 WASHER, PLATEWASHER, PLATE
-
112CR-2217A-00-00 ARM, RELAYARM, RELAY
-
1290387-1012A-00 COLLARCOLLAR
-
1393315-31759-00 BEARINGBEARING
-
1493315-31758-00 BEARINGBEARING
-
1593109-17071-00 OIL SEALOIL SEAL
-
1690387-126Y1-00 COLLARCOLLAR
-
172CR-2217M-00-00 ARM 1ARM 1
-
1890109-12010-00 BOLTBOLT
-
1992902-12600-00 WASHER, PLATEWASHER, PLATE
-
2090185-12011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
212CR-22151-00-00 SEAL, GUARDSEAL, GUARD
-
2292012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2390269-07007-00 RIVETRIVET
-
2490387-06242-00 COLLARCOLLAR
-
252CR-22311-00-00 CASE, CHAINCASE, CHAIN
-
2690269-07007-00 RIVETRIVET
-
2790110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
282CR-21650-00-00 REAR FENDER COMP.REAR FENDER COMP.
-
2990560-06244-00 SPACERSPACER
-
3092014-06016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3190105-10017-00 BOLT, FLANGEBOLT, FLANGE
-
3295602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
335UY-21269-00-00 SEALSEAL
-
3414B-22141-00-00 SHAFT, PIVOTSHAFT, PIVOT
-
3590185-20008-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3690201-20026-00 WASHER, PLATEWASHER, PLATE
-
3790201-30016-00 WASHER, PLATEWASHER, PLATE
-
384C8-22252-00-00 NUTNUT
-
3990387-1012B-00 COLLARCOLLAR
-
4090109-10017-00 BOLTBOLT
-
4195602-10200-00 NUT, S/L FLANGENUT, S/L FLANGE
-
422CR-21668-00-00 LABEL, TIRELABEL, TIRE
