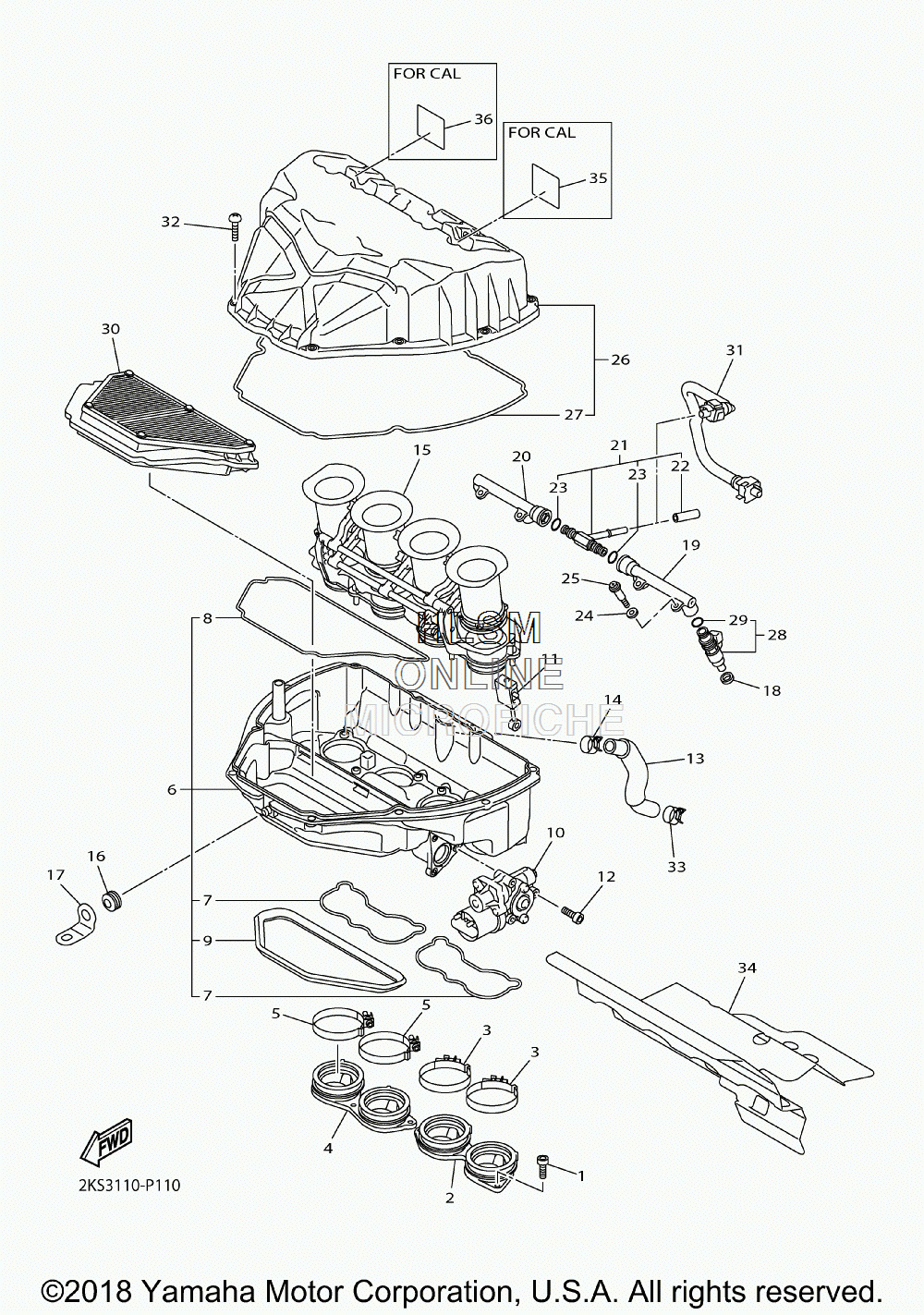

AIR CLEANER W/ INTAKE для Yamaha YZFR1S - 2018 года выпуска`
-
№АртикулНазвание
-
190110-06168-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
22CR-13635-00-00 JOINT, INTAKE 1JOINT, INTAKE 1
-
390450-60004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
42CR-13636-00-00 JOINT, INTAKE 2JOINT, INTAKE 2
-
590450-60004-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
62CR-14411-00-00 CASE, AIR CLEANER 1CASE, AIR CLEANER 1
-
72CR-14457-00-00 ...SEAL...SEAL
-
82CR-14462-00-00 ...SEAL...SEAL
-
92CR-14425-00-00 ...DAMPER 1...DAMPER 1
-
1014B-85870-00-00 GEARED MOTOR COMP. 2GEARED MOTOR COMP. 2
-
112CR-14490-00-00 SHAFT ASSYSHAFT ASSY
-
1290110-05047-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
132CR-15393-00-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
1490467-15001-00 CLIPCLIP
-
152CR-1440B-00-00 JOINT ASSYJOINT ASSY
-
1690480-12010-00 GROMMETGROMMET
-
172CR-14498-00-00 STAY 1STAY 1
-
188FP-13556-00-00 RUBBER, INJECTORRUBBER, INJECTOR
-
192CR-1393A-00-00 PIPE, INLETPIPE, INLET
-
202CR-1393B-00-00 PIPE, INLET 2PIPE, INLET 2
-
212CR-1440F-00-00 JOINT, AIR FILTER 1JOINT, AIR FILTER 1
-
225UX-14118-00-00 ...CAP...CAP
-
2339P-14147-00-00 ...O-RING...O-RING
-
24363-14198-00-00 GASKETGASKET
-
2514B-13573-00-00 BOLT 1BOLT 1
-
262CR-14421-00-00 CASE, AIR CLEANER 2CASE, AIR CLEANER 2
-
272CR-14452-00-00 ...SEAL...SEAL
-
2814B-13761-10-00 INJECTORINJECTOR
-
295PS-14147-00-00 ...O-RING...O-RING
-
302CR-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
312CR-13972-00-00 PIPE, FUEL 2PIPE, FUEL 2
-
3298907-05020-00 SCREW, BINDSCREW, BIND
-
3390467-160A6-00 CLIPCLIP
-
342CR-12682-00-00 PROTECTOR, HEATPROTECTOR, HEAT
-
3514B-21684-00-00 PLATE, ROUTING (CALIF ONLY)PLATE, ROUTING (CALIF ONLY)
-
362CR-21686-00-00 PLATE, ROUTING 2 (CALIF ONLY)PLATE, ROUTING 2 (CALIF ONLY)
