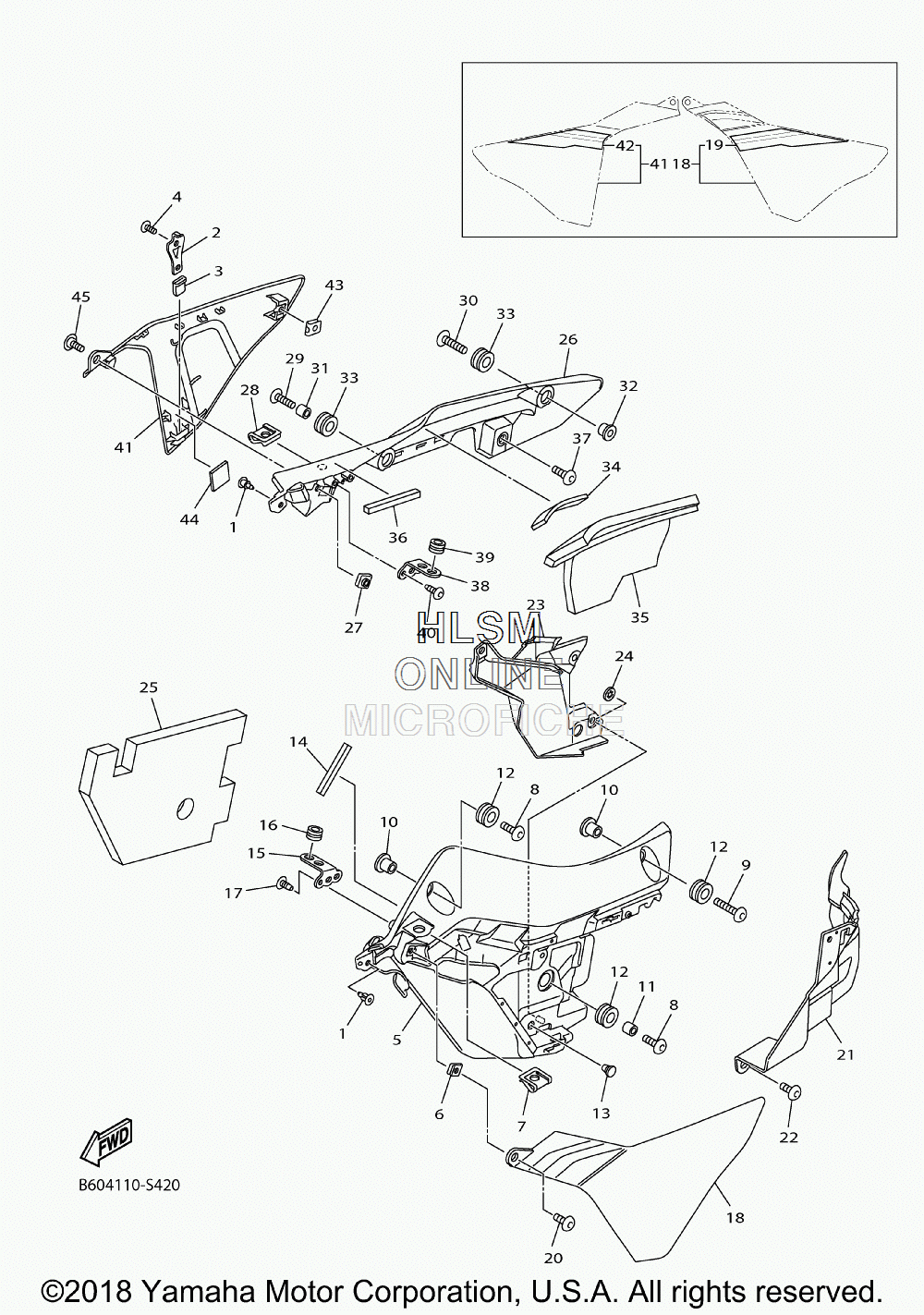

COWLING 3 для Yamaha YZFR1S - 2018 года выпуска`
-
№АртикулНазвание
-
190269-06008-00 RIVETRIVET
-
22CR-2833J-00-00 BRACKET 12BRACKET 12
-
35PW-2411J-01-00 DAMPER, SIDE COVERDAMPER, SIDE COVER
-
492012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
52CR-2836A-01-00 BRACKET 1BRACKET 1
-
690183-05076-00 NUT, SPRINGNUT, SPRING
-
74XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
890149-06302-00 SCREWSCREW
-
990111-06030-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1090387-067K8-00 COLLARCOLLAR
-
1190387-06260-00 COLLARCOLLAR
-
1290480-14003-00 GROMMETGROMMET
-
1390338-06018-00 PLUGPLUG
-
142C0-28247-00-00 DAMPER 4DAMPER 4
-
152CR-2833G-00-00 BRACKET 10BRACKET 10
-
1690480-10517-00 GROMMETGROMMET
-
1797702-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
182CR-Y284M-71-P2 COVER 1 (SMX - BLACK METALLIC)COVER 1 (SMX - BLACK METALLIC)
-
19B60-28393-30-00 ...GRAPHIC 3...GRAPHIC 3
-
2090111-05045-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
212CR-2843J-01-00 COVER 3COVER 3
-
2290111-05045-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
232CR-2836F-00-00 BRACKET 3BRACKET 3
-
2490183-05M02-00 NUT, SPRINGNUT, SPRING
-
252CR-28415-00-00 DAMPER 1DAMPER 1
-
262CR-2836E-00-00 BRACKET 2BRACKET 2
-
2790183-05076-00 NUT, SPRINGNUT, SPRING
-
284XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
2990149-06302-00 SCREWSCREW
-
3090111-06030-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3190387-06260-00 COLLARCOLLAR
-
3290387-067K8-00 COLLARCOLLAR
-
3390480-14003-00 GROMMETGROMMET
-
3490520-04012-00 DAMPER, PLATEDAMPER, PLATE
-
352CR-28455-00-00 DAMPER, 4DAMPER, 4
-
362C0-28247-00-00 DAMPER 4DAMPER 4
-
3790111-05045-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
382CR-2833H-00-00 BRACKET 11BRACKET 11
-
3990480-10517-00 GROMMETGROMMET
-
4097702-50012-00 SCREW, TAPPINGSCREW, TAPPING
-
412CR-W284N-60-P2 COVER 2 (SMX - BLACK METALLIC)COVER 2 (SMX - BLACK METALLIC)
-
42B60-28394-30-00 ...GRAPHIC 4...GRAPHIC 4
-
4390183-05076-00 NUT, SPRINGNUT, SPRING
-
443TB-28217-00-00 DAMPER 1DAMPER 1
-
4590111-05045-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
