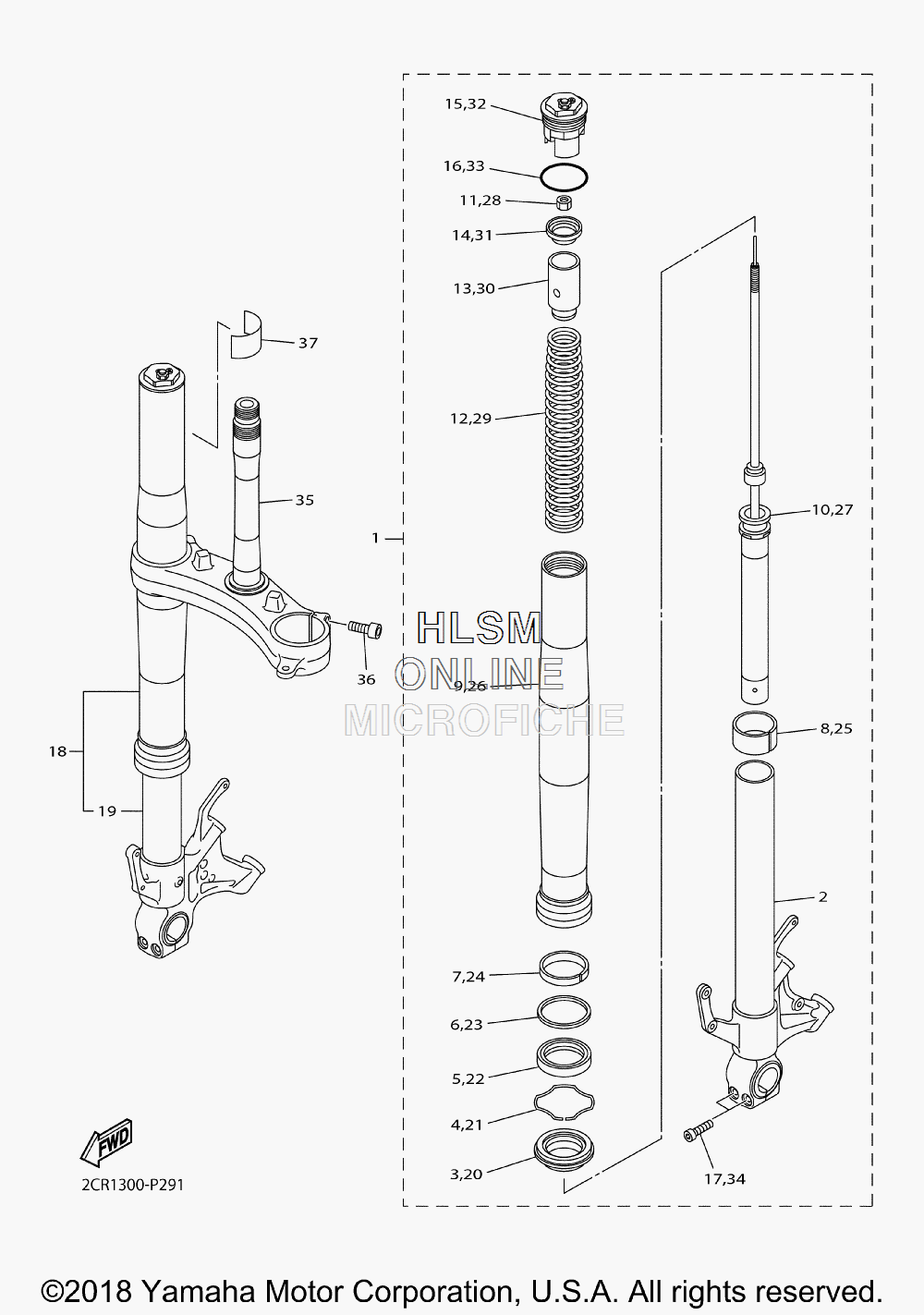

SUSPENSION - FRONT FORK для Yamaha YZFR1S - 2018 года выпуска`
-
№АртикулНазвание
-
12CR-23102-30-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
22CR-23110-00-00 ...INNER TUBE COMP. 1 (L.H)...INNER TUBE COMP. 1 (L.H)
-
34PU-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
44V4-23153-L0-00 ...RING, SNAP...RING, SNAP
-
54PU-23145-01-00 ...OIL SEAL...OIL SEAL
-
65PW-23146-00-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
72CR-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
82CR-23171-00-00 ...PISTON, FRONT FORK...PISTON, FRONT FORK
-
92CR-23136-10-00 ...TUBE, OUTER 2...TUBE, OUTER 2
-
102CR-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
113LC-23357-00-00 ...NUT...NUT
-
122CR-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
132CR-23118-00-00 ...SPACER...SPACER
-
142CR-23117-00-00 ...GUIDE, SPRING...GUIDE, SPRING
-
152CR-23111-10-00 ...BOLT, CAP...BOLT, CAP
-
1639P-23147-00-00 ...O-RING...O-RING
-
1791314-08040-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
182CR-23103-30-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
192CR-23120-00-00 ...INNER TUBE COMP. 2 (R.H)...INNER TUBE COMP. 2 (R.H)
-
204PU-23144-00-00 ...SEAL, DUST...SEAL, DUST
-
214V4-23153-L0-00 ...RING, SNAP...RING, SNAP
-
224PU-23145-01-00 ...OIL SEAL...OIL SEAL
-
235PW-23146-00-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
242CR-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
252CR-23171-00-00 ...PISTON, FRONT FORK...PISTON, FRONT FORK
-
262CR-23136-10-00 ...TUBE, OUTER 2...TUBE, OUTER 2
-
272CR-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
283LC-23357-00-00 ...NUT...NUT
-
292CR-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
302CR-23118-00-00 ...SPACER...SPACER
-
312CR-23117-00-00 ...GUIDE, SPRING...GUIDE, SPRING
-
322CR-23111-10-00 ...BOLT, CAP...BOLT, CAP
-
3339P-23147-00-00 ...O-RING...O-RING
-
3491314-08040-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
35B60-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
3691314-08030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
375PW-23472-00-00 PROTECTORPROTECTOR
