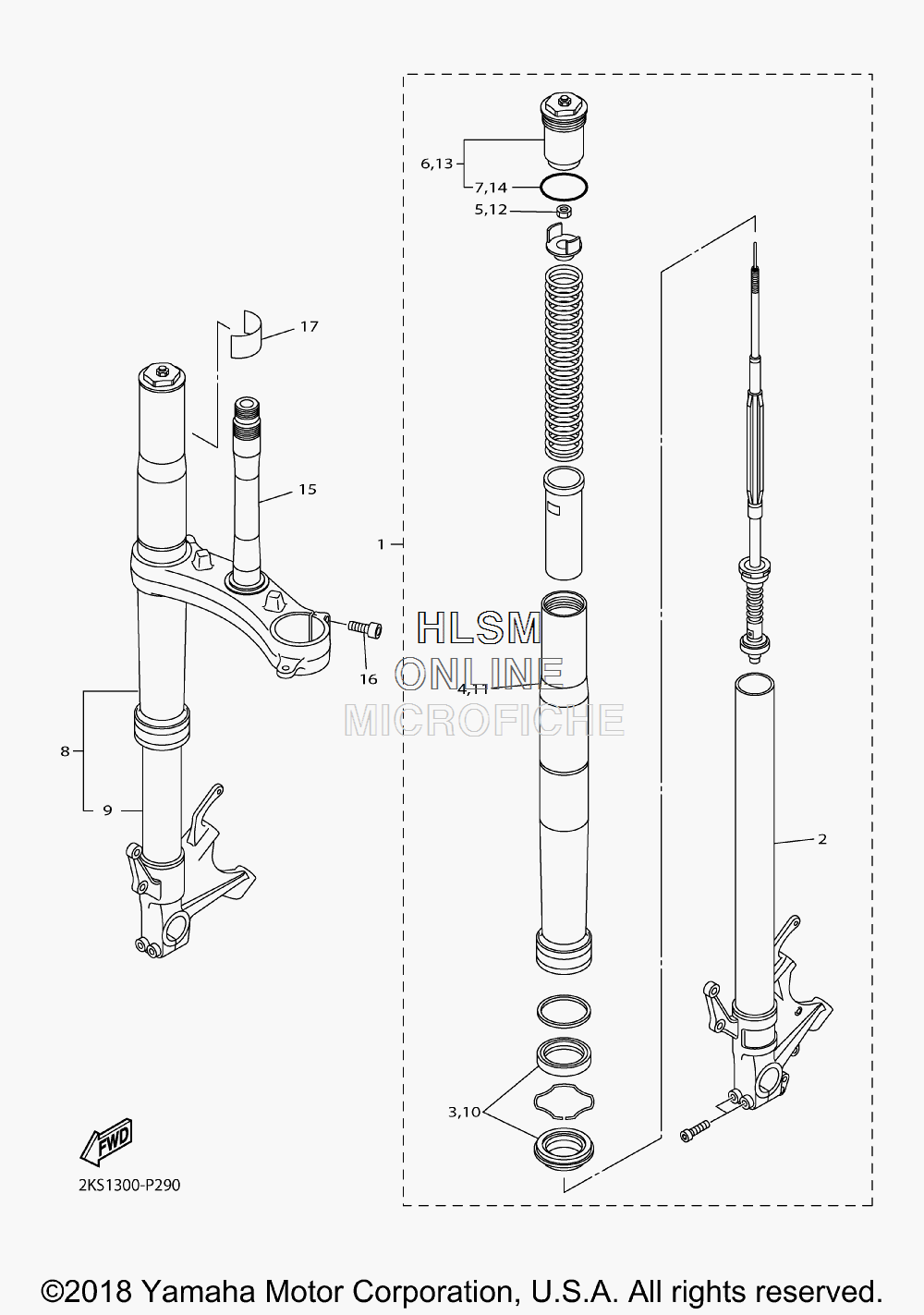

SUSPENSION - FRONT FORK для Yamaha YZFR1 M - 2018 года выпуска`
-
№АртикулНазвание
-
12KS-23102-00-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
22KS-23110-00-00 ...INNER TUBE COMP. 1...INNER TUBE COMP. 1
-
32KS-231E0-00-00 ...FORK SEAL COVER KIT...FORK SEAL COVER KIT
-
42KS-23106-00-00 ...OUTER TUBE COMP....OUTER TUBE COMP.
-
590170-12060-00 ...NUT...NUT
-
62KS-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
793210-41N50-00 ......O-RING......O-RING
-
82KS-23103-00-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
92KS-23120-00-00 ...INNER TUBE COMP. 2...INNER TUBE COMP. 2
-
102KS-231E0-00-00 ...FORK SEAL COVER KIT...FORK SEAL COVER KIT
-
112KS-23106-00-00 ...OUTER TUBE COMP....OUTER TUBE COMP.
-
1290170-12060-00 ...NUT...NUT
-
132KS-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
1493210-41N50-00 ......O-RING......O-RING
-
152CR-23340-00-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
1691314-08030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
175PW-23472-00-00 PROTECTORPROTECTOR
