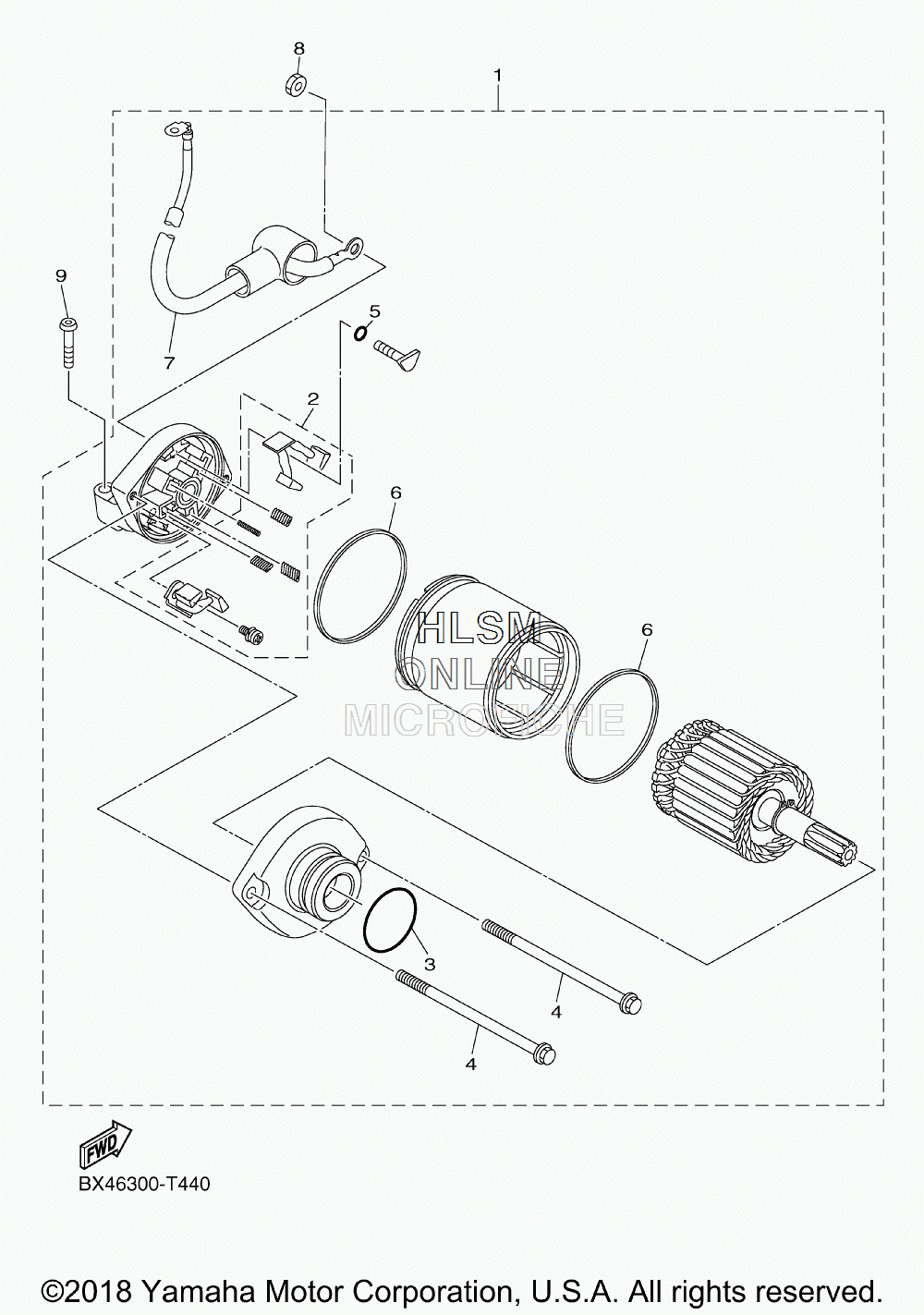

STARTING MOTOR для Yamaha YZFR1 M - 2018 года выпуска`
-
№АртикулНазвание
-
12CR-81890-10-00 MOTOR ASSYMOTOR ASSY
-
22CR-81801-10-00 ...BRUSH SET...BRUSH SET
-
35VV-H182L-00-00 ...O-RING 1...O-RING 1
-
42CR-81846-00-00 ...SCREW...SCREW
-
593210-06422-00 ...O-RING...O-RING
-
62CR-81861-10-00 ...GASKET...GASKET
-
72CR-8183G-10-00 ...CORD COMP....CORD COMP.
-
895302-06700-00 NUT, HEXAGONNUT, HEXAGON
-
991312-06030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
