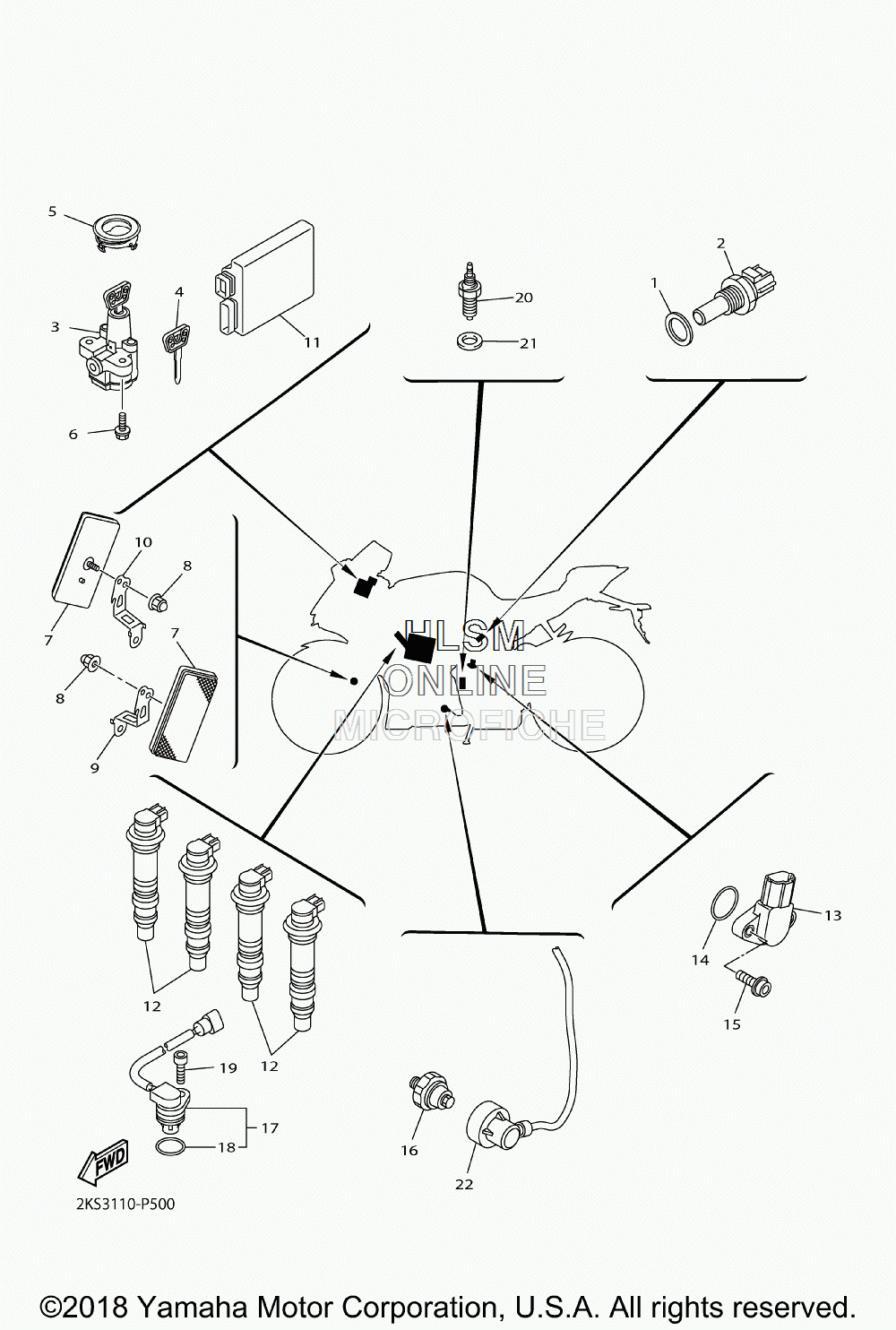

ELECTRICAL для Yamaha YZFR1 M - 2018 года выпуска`
-
№АртикулНазвание
-
190430-10004-00 GASKETGASKET
-
24P9-83591-00-00 THERMO UNITTHERMO UNIT
-
32CR-82501-10-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
44BH-82511-09-00 BLANK KEY (OPT)BLANK KEY (OPT)
-
536P-82552-00-00 CAP, SWITCHCAP, SWITCH
-
690109-08195-00 BOLTBOLT
-
711H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
895702-05500-00 NUT, FLANGENUT, FLANGE
-
92CR-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
102CR-85122-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
-
11BX4-8591A-40-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
122CR-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
132CR-85899-00-00 SENSOR, GEAR POSITIONSENSOR, GEAR POSITION
-
1493210-17008-00 O-RINGO-RING
-
1590110-05067-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
161WS-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
175VY-85896-01-00 SENSOR, CAM POSITIONSENSOR, CAM POSITION
-
184D9-81168-00-00 ...O-RING...O-RING
-
1990110-06175-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
203GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
2190430-10148-00 GASKETGASKET
-
22B67-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
