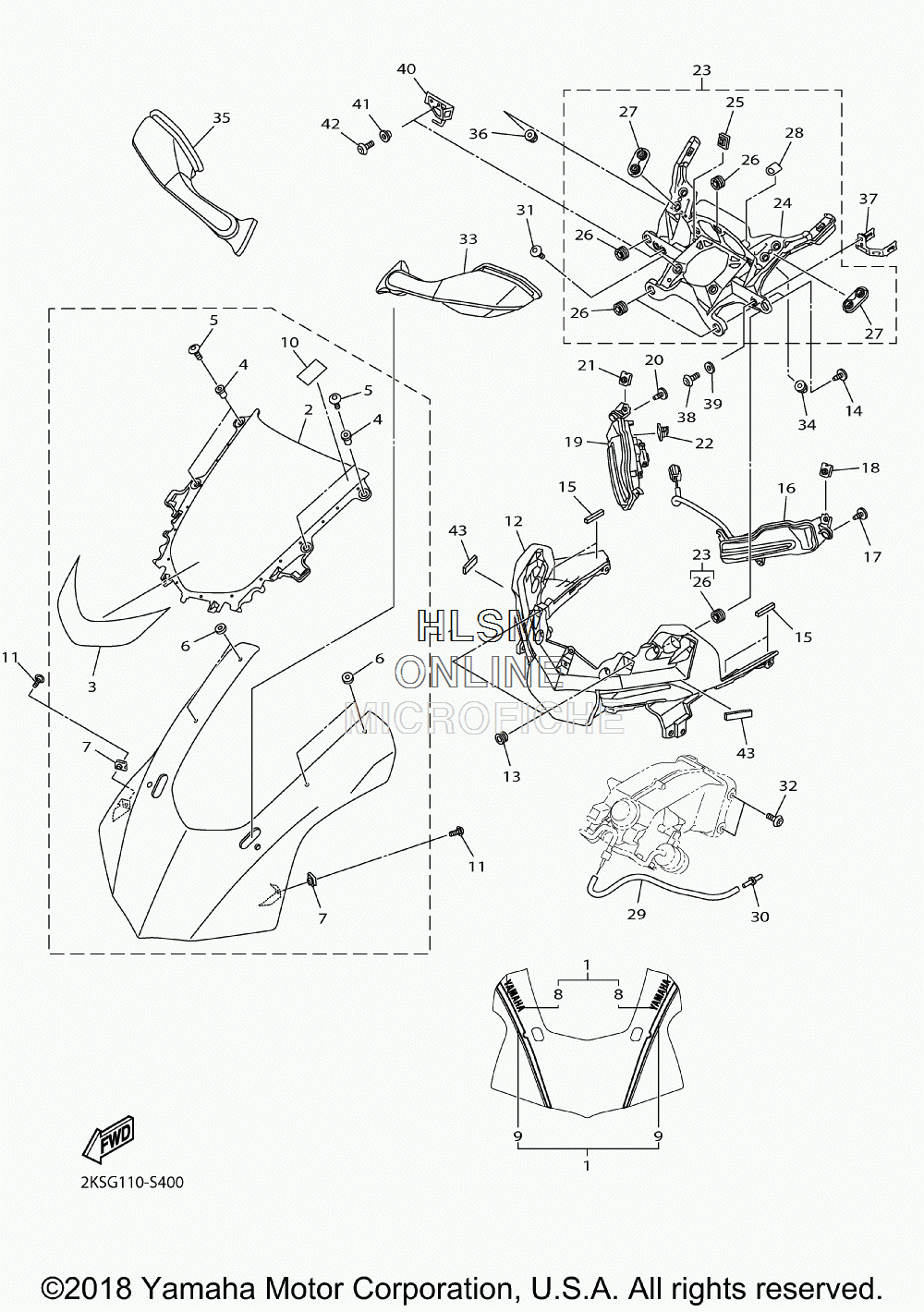

COWLING - BODY FRONT для Yamaha YZFR1 M - 2018 года выпуска`
-
№АртикулНазвание
-
12KS-Y283G-50-1X BODY, FRONT UPPER 1 (BWM2 - BLUISH WHITE)BODY, FRONT UPPER 1 (BWM2 - BLUISH WHITE)
-
22CR-28381-10-00 ...WINDSHIELD...WINDSHIELD
-
32CR-2832P-00-00 ...GRAPHIC, 18...GRAPHIC, 18
-
490179-05523-00 ...NUT...NUT
-
52CR-28333-00-00 ...BOLT...BOLT
-
690202-05088-00 ...WASHER, PLATE...WASHER, PLATE
-
790183-05076-00 ...NUT, SPRING...NUT, SPRING
-
899246-00100-00 ...EMBLEM, YAMAHA...EMBLEM, YAMAHA
-
92KS-2834X-00-00 ...GRAPHIC SET 1, COWLING...GRAPHIC SET 1, COWLING
-
104B5-2815K-00-00 ...LABEL, NOTICE WINDSHIELD 1...LABEL, NOTICE WINDSHIELD 1
-
1190111-05045-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
122CR-2835H-00-00 BODY, FRONT UPPER 2BODY, FRONT UPPER 2
-
1390480-10003-00 GROMMETGROMMET
-
1490164-05001-00 SCREW, TAPPINGSCREW, TAPPING
-
152C0-28247-00-00 DAMPER 4DAMPER 4
-
162CR-84301-00-00 PILOT LIGHT ASSY 1PILOT LIGHT ASSY 1
-
1797702-50014-00 SCREW, TAPPINGSCREW, TAPPING
-
1890183-05076-00 NUT, SPRINGNUT, SPRING
-
192CR-84302-00-00 PILOT LIGHT ASSY 2PILOT LIGHT ASSY 2
-
2097702-50014-00 SCREW, TAPPINGSCREW, TAPPING
-
2190183-05076-00 NUT, SPRINGNUT, SPRING
-
2290464-25160-00 CLAMPCLAMP
-
232CR-28320-00-00 LEG SHIELD STAY SETLEG SHIELD STAY SET
-
242CR-28356-00-00 ...STAY 1...STAY 1
-
2590183-060A1-00 ...NUT, SPRING...NUT, SPRING
-
264XV-83513-00-00 ...DAMPER...DAMPER
-
274C8-26298-00-00 ...PLATE, MIRROR FITTING 1...PLATE, MIRROR FITTING 1
-
282CR-22873-00-00 ...SEAL 1...SEAL 1
-
2990445-086J3-00 HOSE (L320)HOSE (L320)
-
305PS-14568-00-00 JOINTJOINT
-
3190111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3290111-06071-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
332CR-26280-10-00 REAR VIEW MIRROR ASSY (LEFT)REAR VIEW MIRROR ASSY (LEFT)
-
3490176-06055-00 NUT, CROWNNUT, CROWN
-
352CR-26290-10-00 REAR VIEW MIRROR ASSY (RIGHT)REAR VIEW MIRROR ASSY (RIGHT)
-
3690176-06055-00 NUT, CROWNNUT, CROWN
-
372CR-2836J-00-00 BRACKET 6BRACKET 6
-
3892012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
3990387-06184-00 COLLARCOLLAR
-
402KS-28468-00-00 BRACKET 7BRACKET 7
-
4190387-06184-00 COLLARCOLLAR
-
4292012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
438GE-21852-00-00 DAMPERDAMPER
