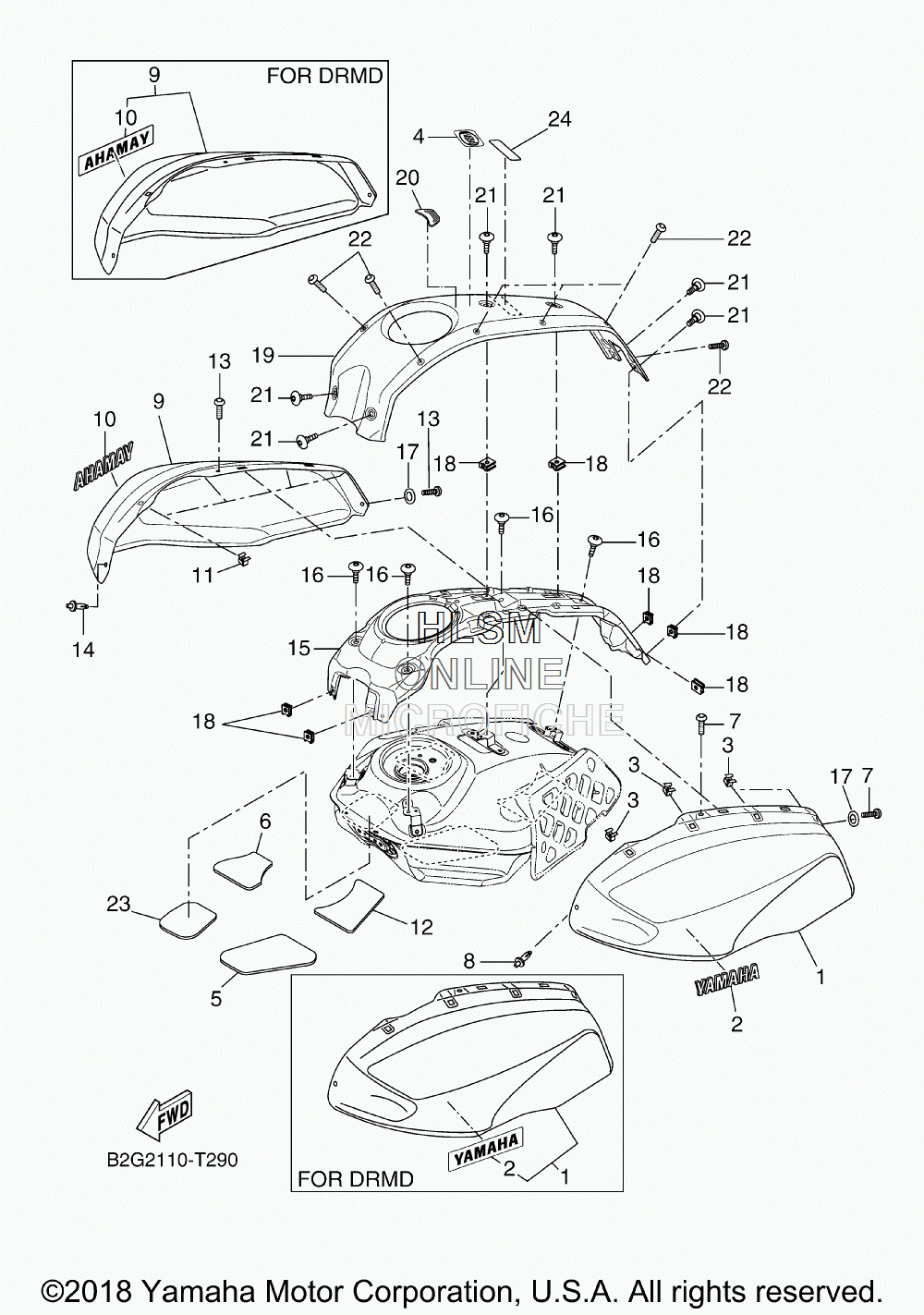

FUEL TANK SIDE COVERS для Yamaha XSR 700 - 2018 года выпуска`
-
№АртикулНазвание
-
1B2G-24129-00-1X COVER, SIDE 1 (MNM3 - MAT GRAY)COVER, SIDE 1 (MNM3 - MAT GRAY)
-
1B2G-Y24HA-20-01 COVER, TANK SIDE 1 ASSY (DRMD - DULL RED)COVER, TANK SIDE 1 ASSY (DRMD - DULL RED)
-
299221-00120-00 ...EMBLEM, YAMAHA (DRMD - DULL RED)...EMBLEM, YAMAHA (DRMD - DULL RED)
-
25KM-2173B-00-00 EMBLEM 3D (MNM3 - MAT GRAY)EMBLEM 3D (MNM3 - MAT GRAY)
-
390183-05X08-00 NUT, SPRINGNUT, SPRING
-
4B90-2416B-01-00 EMBLEMEMBLEM
-
5B2G-2315J-00-00 PROTECTOR 2PROTECTOR 2
-
6B2G-24595-00-00 PROTECTORPROTECTOR
-
790111-05012-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
890269-06008-00 RIVETRIVET
-
9B2G-Y24JA-20-01 COVER, TANK SIDE 2 ASSY (DRMD - DULL RED)COVER, TANK SIDE 2 ASSY (DRMD - DULL RED)
-
9B2G-24139-00-1X COVER, SIDE 2 (MNM3 - MAT GRAY)COVER, SIDE 2 (MNM3 - MAT GRAY)
-
1099221-00120-00 ...EMBLEM, YAMAHA (DRMD - DULL RED)...EMBLEM, YAMAHA (DRMD - DULL RED)
-
105KM-2173B-00-00 EMBLEM 3D (MNM3 - MAT GRAY)EMBLEM 3D (MNM3 - MAT GRAY)
-
1190183-05X08-00 NUT, SPRINGNUT, SPRING
-
12B2G-24193-00-00 SEAT, TANK PROTECTORSEAT, TANK PROTECTOR
-
1390111-05012-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1490269-06008-00 RIVETRIVET
-
15B34-F41B1-00-00 COVER, TANKCOVER, TANK
-
1690111-05011-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
1790201-05725-00 WASHER, PLATEWASHER, PLATE
-
1890183-05X04-00 NUT, SPRINGNUT, SPRING
-
19B2G-2411A-00-P1 OUTER PANEL 1 (DRMD - DULL RED)OUTER PANEL 1 (DRMD - DULL RED)
-
19B2G-2411A-00-P0 OUTER PANEL 1 (MNM3 - MAT GRAY)OUTER PANEL 1 (MNM3 - MAT GRAY)
-
20B34-F4141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
2190111-05011-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
2290111-05012-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
23B2G-2315H-00-00 PROTECTOR 1PROTECTOR 1
-
241TP-2118K-A1-00 LABEL, CAUTIONLABEL, CAUTION
