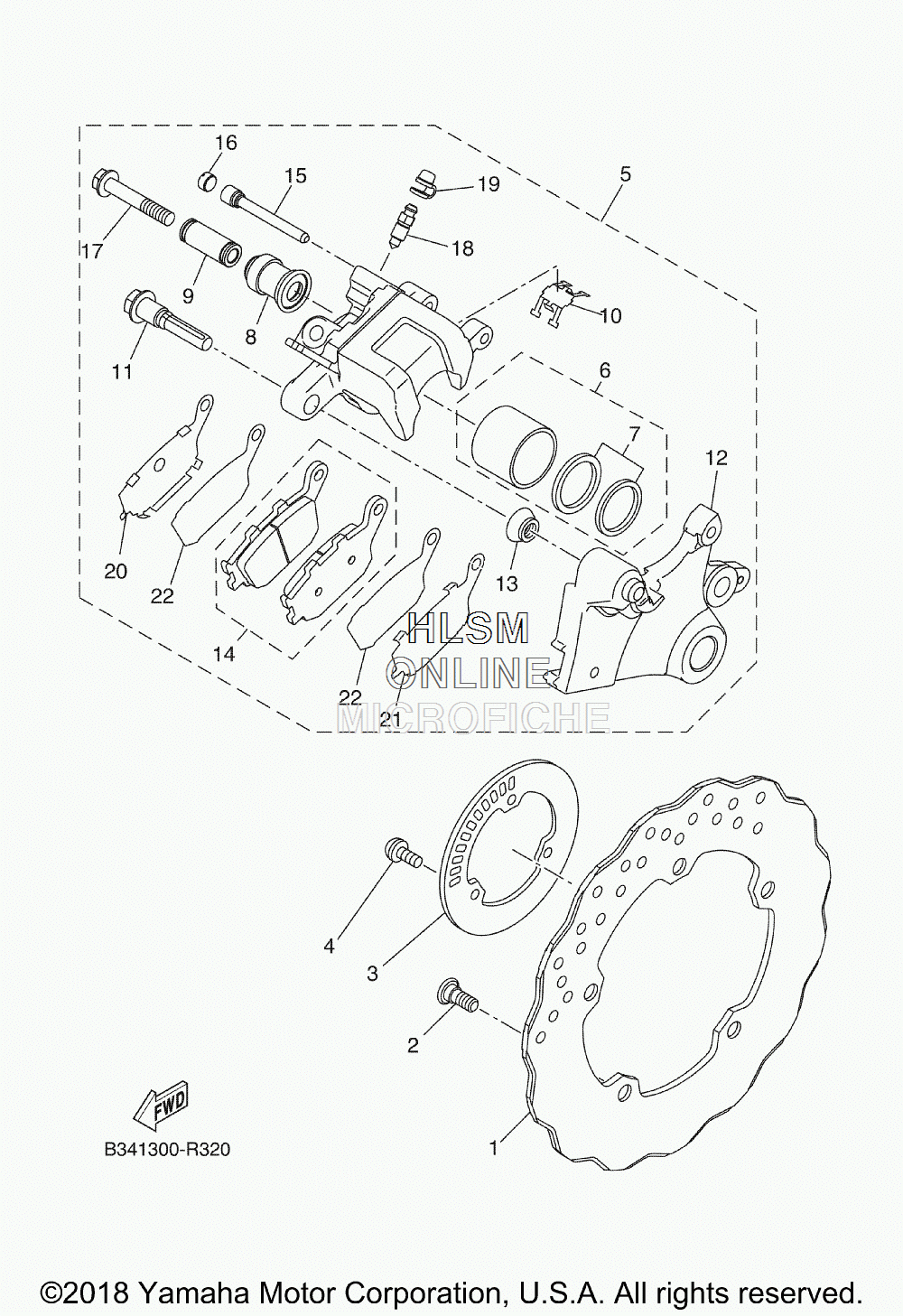

BRAKE - REAR CALIPER для Yamaha XSR 700 - 2018 года выпуска`
-
№АртикулНазвание
-
11WS-2582W-00-00 DISC, REAR BRAKE 2DISC, REAR BRAKE 2
-
290109-08045-00 BOLTBOLT
-
32DR-2517G-00-00 ROTOR, SENSORROTOR, SENSOR
-
490149-05029-00 SCREWSCREW
-
52DR-2580W-00-00 CALIPER ASSY, REAR 2CALIPER ASSY, REAR 2
-
65SL-25802-00-00 ...PISTON ASSY, CALIPER...PISTON ASSY, CALIPER
-
75SL-25803-00-00 ......CALIPER SEAL KIT......CALIPER SEAL KIT
-
85SL-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
95SL-25838-00-00 ...SLEEVE, CALIPER...SLEEVE, CALIPER
-
105SL-25919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
115SL-25914-00-00 ...PIN, SLIDE...PIN, SLIDE
-
122DR-25921-50-00 ...BRACKET, SUPPORT...BRACKET, SUPPORT
-
133JD-25917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
145VX-25806-00-00 ...BRAKE PAD KIT 2...BRAKE PAD KIT 2
-
158CR-25924-00-00 ...PIN, PAD...PIN, PAD
-
165DH-25916-00-00 ...PLUG...PLUG
-
171RC-25926-00-00 ...BOLT...BOLT
-
188CR-25824-00-00 ...SCREW, BLEED...SCREW, BLEED
-
191UY-25825-51-00 ...CAP...CAP
-
205SL-25827-00-00 ...SHIM, CALIPER...SHIM, CALIPER
-
215SL-25827-10-00 ...SHIM, CALIPER...SHIM, CALIPER
-
225SL-25828-01-00 ...SHIM, CALIPER...SHIM, CALIPER
