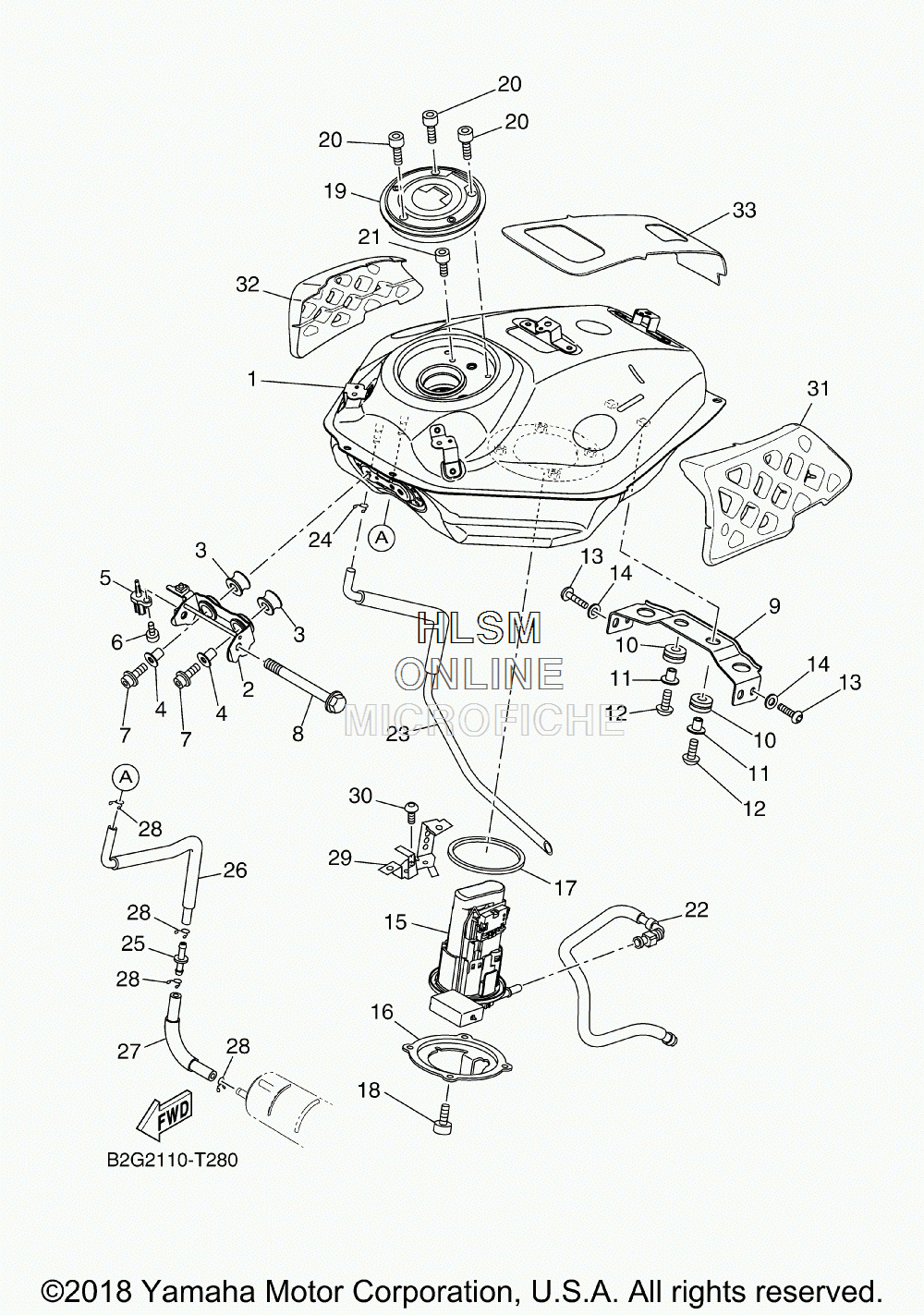

FUEL TANK (CALIF ONLY) для Yamaha XSR 700 - 2018 года выпуска`
-
№АртикулНазвание
-
1B2G-24110-00-00 FUEL TANK COMP.FUEL TANK COMP.
-
21WS-2412Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
33D7-24339-00-00 GROMMETGROMMET
-
490387-06136-00 COLLARCOLLAR
-
55YU-85886-00-00 SENSOR, AIR TEMPERATURESENSOR, AIR TEMPERATURE
-
698502-05012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
790110-06172-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
895817-08100-00 BOLT, FLANGEBOLT, FLANGE
-
9B2G-2413Y-00-00 BRACKET, TANK FITTINGBRACKET, TANK FITTING
-
1090480-16003-00 GROMMETGROMMET
-
1190387-06287-00 COLLARCOLLAR
-
1290111-06084-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1392012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1492902-06200-00 WASHERWASHER
-
151WS-13907-00-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
161WS-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
171RC-24486-00-00 O-RINGO-RING
-
1891312-05010-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
191WS-24602-00-00 CAP ASSYCAP ASSY
-
2090110-05112-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2191317-05010-00 BOLT, HEX. SOCKET HEADBOLT, HEX. SOCKET HEAD
-
221WS-13971-00-00 PIPE, FUEL 1PIPE, FUEL 1
-
232RC-24318-00-00 PIPE, OVERFLOWPIPE, OVERFLOW
-
2490467-090A2-00 CLIPCLIP
-
254XY-14568-00-00 JOINTJOINT
-
26B2G-24321-00-00 PIPE 10PIPE 10
-
27B2G-24322-00-00 PIPE 11PIPE 11
-
2890467-090A2-00 CLIPCLIP
-
292RC-2419F-00-00 BRACKET, CANISTORBRACKET, CANISTOR
-
3090111-06119-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
31B34-F414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
32B34-F414J-00-00 DAMPER, PLATE 2DAMPER, PLATE 2
-
33B34-F414K-00-00 DAMPER, PLATE 3DAMPER, PLATE 3
