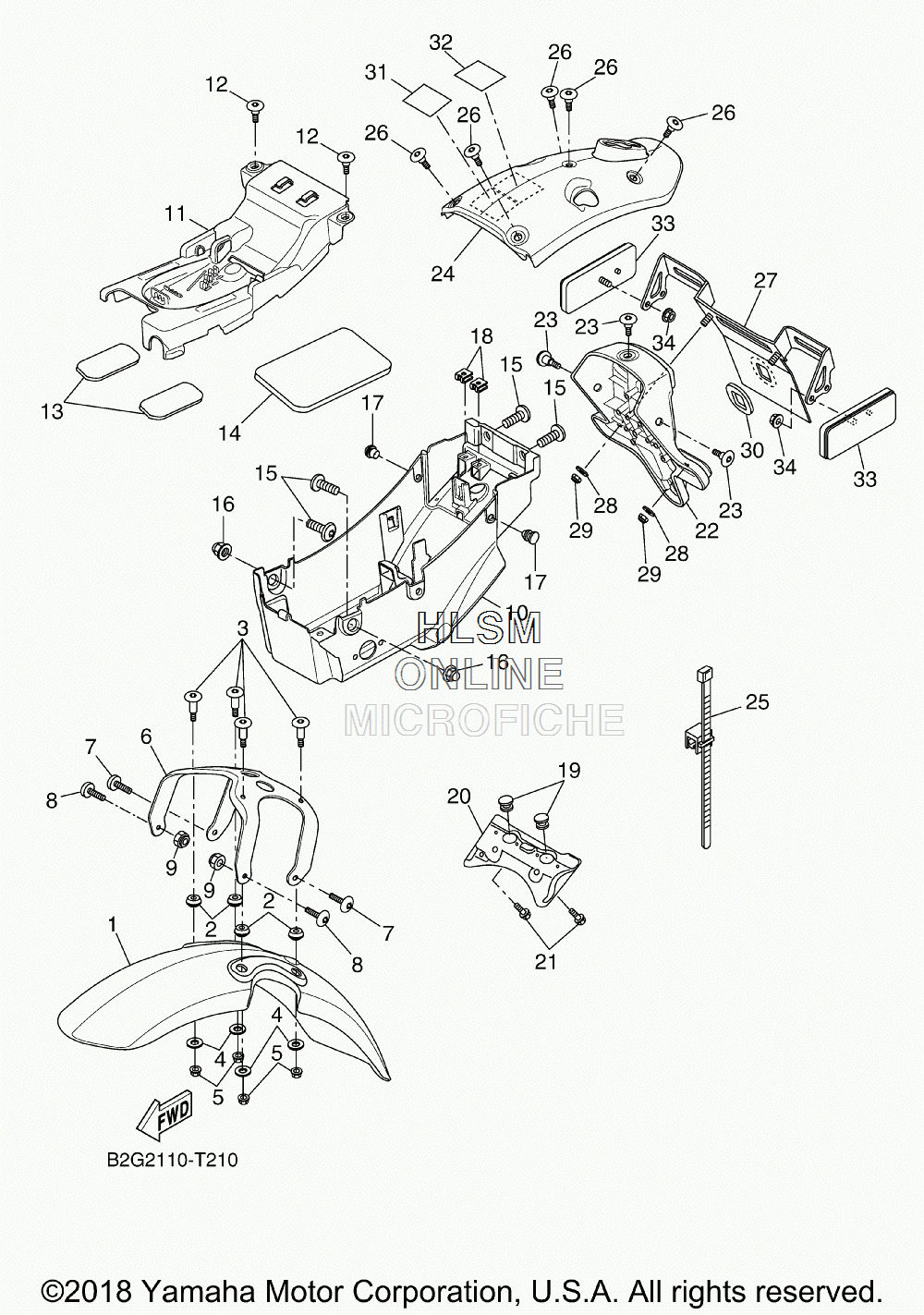

FENDER - FRONT / REAR для Yamaha XSR 700 - 2018 года выпуска`
-
№АртикулНазвание
-
1B2G-21511-00-P0 FENDER, FRONT (MNM3 - MAT GRAY)FENDER, FRONT (MNM3 - MAT GRAY)
-
1B2G-21511-00-P1 FENDER, FRONT (MS1 - SILVER FOR DRMD - DULL RED)FENDER, FRONT (MS1 - SILVER FOR DRMD - DULL RED)
-
2B2G-21544-00-00 COLLAR 1COLLAR 1
-
390111-06123-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
490201-06072-00 WASHER, PLATEWASHER, PLATE
-
595604-06200-00 NUT, U FLANGENUT, U FLANGE
-
6B34-F1512-00-00 BRACKET, FENDERBRACKET, FENDER
-
790111-06038-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
890149-06302-00 SCREWSCREW
-
990185-06M07-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
10B34-H212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
11B34-H2129-00-00 COVER, BATTERYCOVER, BATTERY
-
1290111-05011-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
13B2G-21649-00-00 DAMPERDAMPER
-
141WS-21639-00-00 DAMPER 2DAMPER 2
-
1590109-06323-00 BOLTBOLT
-
1690176-06008-00 NUT, CROWNNUT, CROWN
-
1790338-06018-00 PLUGPLUG
-
1890183-04039-00 NUT, SPRINGNUT, SPRING
-
1990480-14100-00 GROMMETGROMMET
-
201WS-21642-00-00 GUARD, FLAPGUARD, FLAP
-
2190269-06002-00 RIVETRIVET
-
22B34-F1685-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
2390111-05011-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
24B2G-21651-00-P1 COVER, REAR FENDER (MS1 - SILVER FOR DRMD - DULL RED)COVER, REAR FENDER (MS1 - SILVER FOR DRMD - DULL RED)
-
24B2G-21651-00-P0 COVER, REAR FENDER (MNM3 - MAT GRAY)COVER, REAR FENDER (MNM3 - MAT GRAY)
-
2590464-45005-00 CLAMPCLAMP
-
2690111-05011-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
27B2G-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
2892902-06600-00 WASHER, PLATEWASHER, PLATE
-
2995602-06100-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
30B2G-21639-00-00 DAMPER 2DAMPER 2
-
3134B-21684-00-00 PLATE, ROUTINGPLATE, ROUTING
-
324B5-21686-00-00 PLATE, ROUTING 2PLATE, ROUTING 2
-
333Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
3495702-05500-00 NUT, FLANGENUT, FLANGE
