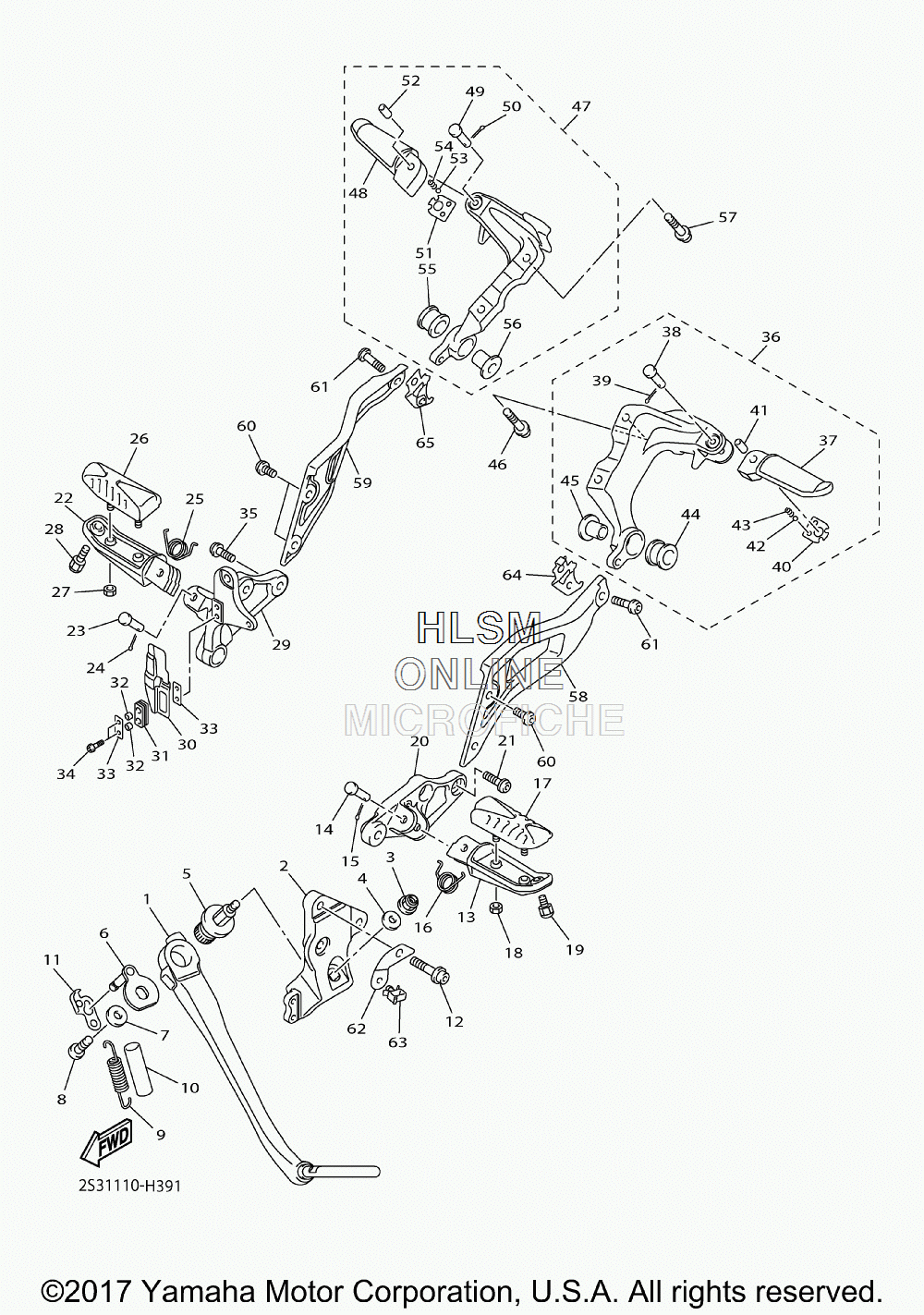

STAND W/ FOOTREST - BRAKE PEDAL для Yamaha V MAX - 2018 года выпуска
-
№АртикулНазвание
-
12S3-27311-00-00 STAND, SIDESTAND, SIDE
-
22S3-27321-00-00 BRACKET, SIDE STANDBRACKET, SIDE STAND
-
395604-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
490201-101J1-00 WASHER, PLATEWASHER, PLATE
-
52S3-27351-00-00 GUIDE, SIDE STANDGUIDE, SIDE STAND
-
62S3-27352-00-00 HOOK, SIDE STANDHOOK, SIDE STAND
-
790201-081R9-00 WASHER, PLATEWASHER, PLATE
-
890111-08064-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
92S3-27116-00-00 SPRING, MAIN STANDSPRING, MAIN STAND
-
1090445-197J2-00 HOSE (L60)HOSE (L60)
-
112S3-27315-00-00 LINK, SIDE STANDLINK, SIDE STAND
-
1290110-08089-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
132S3-27451-00-00 FOOTRESTFOOTREST
-
1491701-08040-00 PINPIN
-
1591401-25015-00 PIN, COTTERPIN, COTTER
-
1690508-20572-00 SPRING, TORSIONSPRING, TORSION
-
172S3-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
1895604-05100-00 NUT, UNUT, U
-
192S3-27317-00-00 BOLTBOLT
-
202S3-27442-10-00 BRACKET 2BRACKET 2
-
2190109-085G6-00 BOLTBOLT
-
222S3-27461-00-00 FOOTRESTFOOTREST
-
2391701-08040-00 PINPIN
-
2491401-25015-00 PIN, COTTERPIN, COTTER
-
2590508-20572-00 SPRING, TORSIONSPRING, TORSION
-
262S3-27413-00-00 COVER, FOOTRESTCOVER, FOOTREST
-
2795604-05100-00 NUT, UNUT, U
-
282S3-27317-00-00 BOLTBOLT
-
292S3-27443-10-00 BRACKET 3BRACKET 3
-
302S3-2144G-00-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
312S3-28187-00-00 GROMMETGROMMET
-
3290387-05046-00 COLLARCOLLAR
-
332S3-27415-00-00 PLATE, FOOTRESTPLATE, FOOTREST
-
3490111-05036-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
3590109-085G6-00 BOLTBOLT
-
362S3-27430-00-00 REAR FOOTREST ASSY 1REAR FOOTREST ASSY 1
-
375JJ-27431-10-00 ...FOOTREST, REAR 1...FOOTREST, REAR 1
-
3891701-06032-00 ...PIN...PIN
-
3991401-20012-00 ...PIN, COTTER...PIN, COTTER
-
405JJ-27437-01-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
4190387-06697-00 ...COLLAR...COLLAR
-
4293501-04011-00 ...BALL...BALL
-
4390501-12743-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
444XV-27424-00-00 ...DAMPER, MUFFLER...DAMPER, MUFFLER
-
4590387-08005-00 ...COLLAR...COLLAR
-
4690110-08199-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
472S3-27440-00-00 REAR FOOTREST ASSY 2REAR FOOTREST ASSY 2
-
485JJ-27441-10-00 ...FOOTREST, REAR 2...FOOTREST, REAR 2
-
4991701-06032-00 ...PIN...PIN
-
5091401-20012-00 ...PIN, COTTER...PIN, COTTER
-
515JJ-27437-01-00 ...WASHER, SPECIAL...WASHER, SPECIAL
-
5290387-06697-00 ...COLLAR...COLLAR
-
5393501-04011-00 ...BALL...BALL
-
5490501-12743-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
554XV-27424-00-00 ...DAMPER, MUFFLER...DAMPER, MUFFLER
-
5690387-08005-00 ...COLLAR...COLLAR
-
5790110-08199-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
582S3-27445-00-00 PLATE 1PLATE 1
-
592S3-27446-00-00 PLATE 2PLATE 2
-
6090149-06298-00 SCREWSCREW
-
6190149-06302-00 SCREWSCREW
-
622S3-2787A-00-00 BRACKET 1BRACKET 1
-
6390464-16021-00 CLAMPCLAMP
-
642S3-2172K-00-00 BRACKET 1BRACKET 1
-
652S3-2172L-00-00 BRACKET 2BRACKET 2
