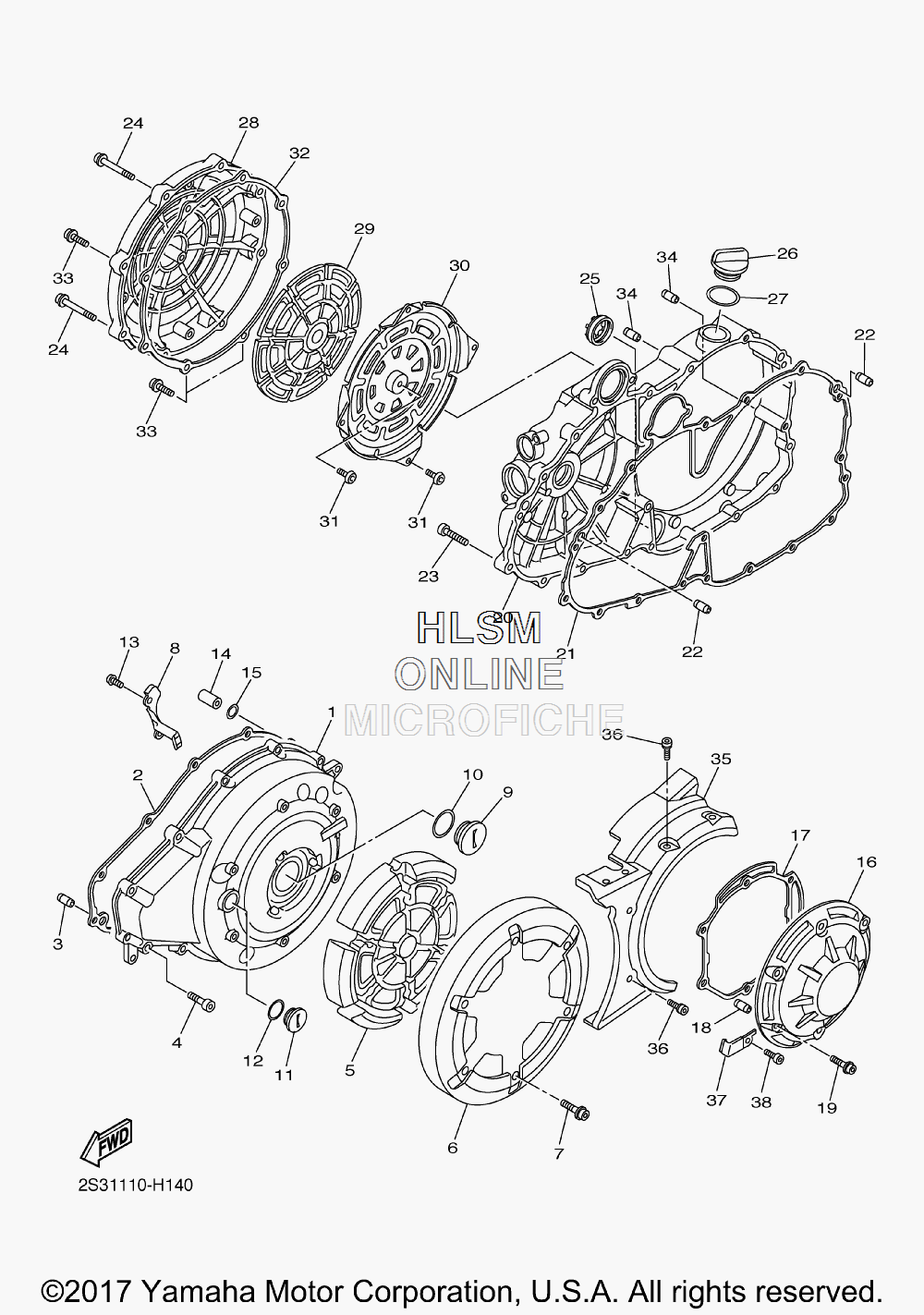

CRANKCASE COVER для Yamaha V MAX - 2018 года выпуска`
-
№АртикулНазвание
-
12S3-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
22S3-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
399530-10114-00 PIN, DOWELPIN, DOWEL
-
490110-06295-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
52S3-15326-00-00 DAMPER 2DAMPER 2
-
62S3-15427-10-00 COVER, CAP 2COVER, CAP 2
-
790110-06387-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
82S3-15484-00-00 CLAMP 2CLAMP 2
-
990340-32080-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1093210-32172-00 O-RINGO-RING
-
1190340-14117-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1293210-14369-00 O-RINGO-RING
-
1390149-06082-00 SCREWSCREW
-
142S3-15138-00-00 NOZZLE 1NOZZLE 1
-
1593210-100A9-00 O-RINGO-RING
-
162S3-15421-10-00 COVER, CRANKCASE 2COVER, CRANKCASE 2
-
172S3-15461-00-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
1899530-08012-00 PIN, DOWELPIN, DOWEL
-
1990110-06388-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
202S3-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
212S3-15462-00-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
2299530-10114-00 PIN, DOWELPIN, DOWEL
-
2390110-06322-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
2490110-06262-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
252H7-15361-00-00 GAUGE, LEVELGAUGE, LEVEL
-
262S3-15363-00-00 PLUG, OILPLUG, OIL
-
2793210-27370-00 O-RINGO-RING
-
282S3-15414-10-00 COVER, 1COVER, 1
-
292S3-15316-00-00 DAMPER 1DAMPER 1
-
302S3-15492-00-00 COVERCOVER
-
3190149-06069-00 SCREWSCREW
-
322S3-15453-00-00 GASKETGASKET
-
3390110-06387-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3499530-08012-00 PIN, DOWELPIN, DOWEL
-
352S3-15415-00-00 COVER, 1COVER, 1
-
3690110-06247-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3790462-10047-00 CLAMPCLAMP
-
3890110-06193-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
