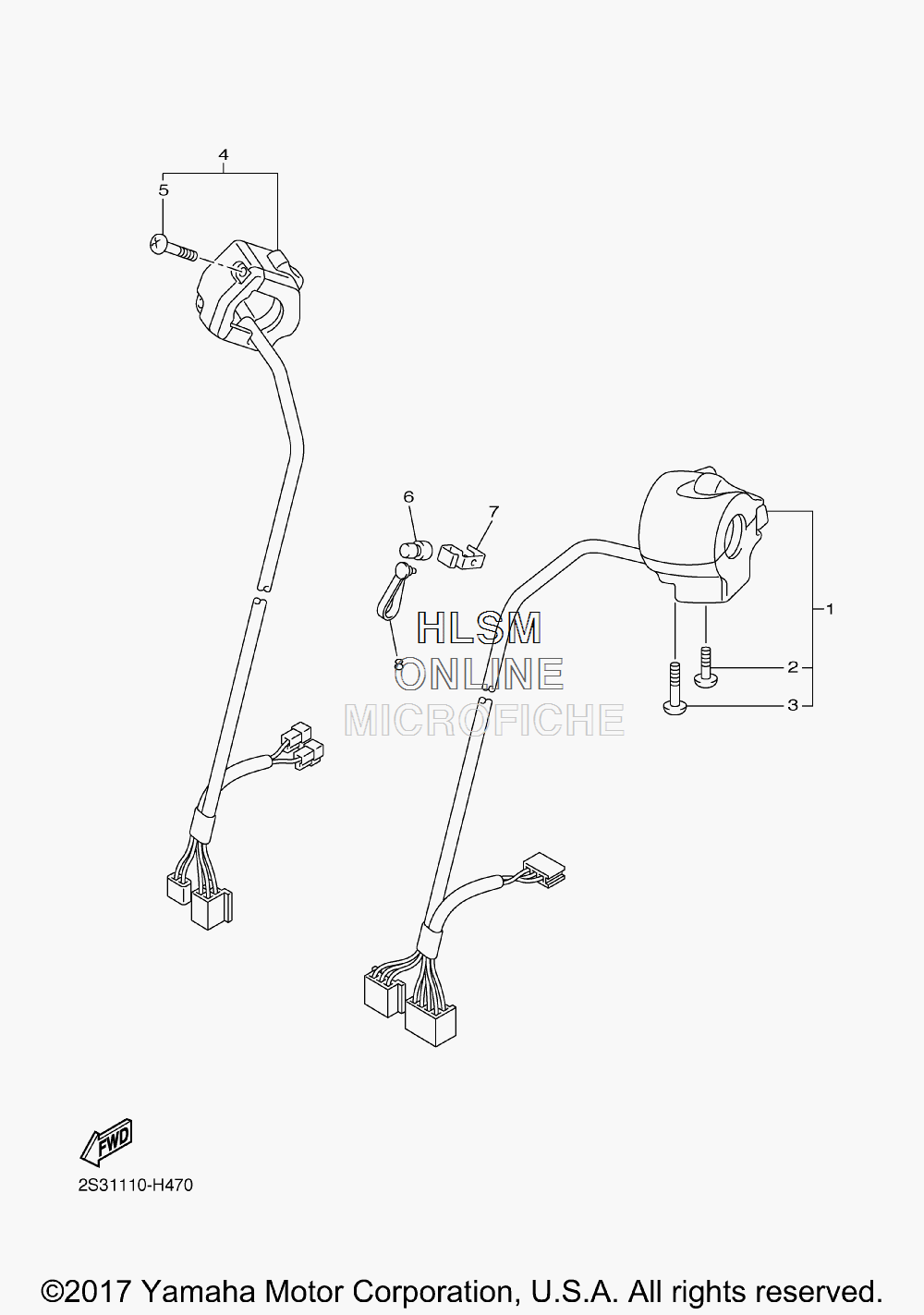

HANDLEBAR W/ SWITCHES - LEVERS для Yamaha V MAX - 2018 года выпуска`
-
№АртикулНазвание
-
12S3-83972-00-00 SWITCH, HANDLE 4SWITCH, HANDLE 4
-
298507-05030-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
398507-05045-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
42S3-83975-00-00 SWITCH, HANDLE 2SWITCH, HANDLE 2
-
598507-05022-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
690338-06007-00 PLUGPLUG
-
72S3-2331E-00-00 GUIDE, CABLEGUIDE, CABLE
-
890464-14009-00 CLAMPCLAMP
