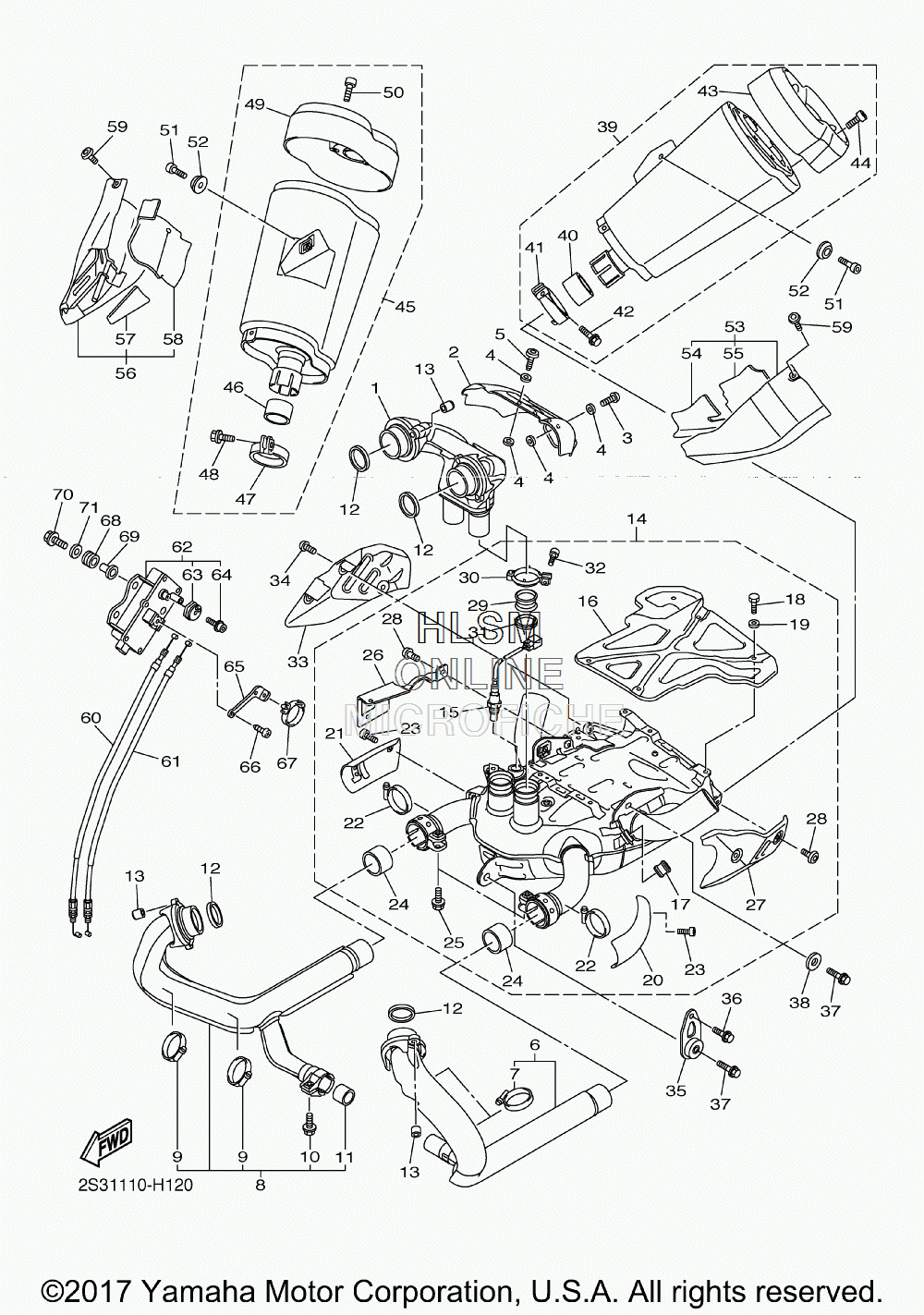

EXHAUST для Yamaha V MAX - 2018 года выпуска
-
№АртикулНазвание
-
12S3-14602-01-00 EXHAUST PIPE COMP.EXHAUST PIPE COMP.
-
22S3-14624-00-00 COVER, EXHAUSTCOVER, EXHAUST
-
392014-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
490201-05015-00 WASHER, PLATEWASHER, PLATE
-
590111-06128-00 BOLT, HEX. SOCKET BUTTONBOLT, HEX. SOCKET BUTTON
-
62S3-14620-10-00 EXHAUST PIPE ASSY 2EXHAUST PIPE ASSY 2
-
790450-45001-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
82S3-14650-10-00 EXHAUST PIPE ASSY 4EXHAUST PIPE ASSY 4
-
990450-45001-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
1095024-08020-00 ...BOLT, FLANGE (SMALL HEAD)...BOLT, FLANGE (SMALL HEAD)
-
112S3-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
122S3-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
1390179-08442-00 NUTNUT
-
142S3-14701-50-00 MUFFLER COMP.MUFFLER COMP.
-
152S3-8592A-00-00 ...SENSOR, OXYGEN...SENSOR, OXYGEN
-
162S3-1479H-00-00 ...COVER, 1...COVER, 1
-
172S3-14737-00-00 ...DAMPER, MUFFLER...DAMPER, MUFFLER
-
1897013-06012-00 ...BOLT...BOLT
-
1992903-06600-00 ...WASHER, PLATE...WASHER, PLATE
-
202S3-1479J-10-00 ...COVER 2...COVER 2
-
212S3-1479K-10-00 ...COVER, 3...COVER, 3
-
2290450-45001-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
2391314-06010-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
245YU-14755-10-00 ...GASKET, SILENCER...GASKET, SILENCER
-
2595024-08040-00 ......BOLT, FLANGE (SMALL HEAD)......BOLT, FLANGE (SMALL HEAD)
-
262S3-1479L-00-00 ...COVER 4...COVER 4
-
272S3-14718-00-00 ...PROTECTOR, MUFFLER 1...PROTECTOR, MUFFLER 1
-
2890111-06101-00 ...BOLT,HEX. SOCKET BUTTON...BOLT,HEX. SOCKET BUTTON
-
292S3-14618-00-00 ...RING, STOPPER...RING, STOPPER
-
302S3-14725-00-00 ...BAND, MUFFLER...BAND, MUFFLER
-
312S3-14623-00-00 ...GASKET, EXHAUST PIPE...GASKET, EXHAUST PIPE
-
3290110-06344-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
332S3-14826-00-00 PROTECTOR, EXHAUSTPROTECTOR, EXHAUST
-
3490111-06101-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
352S3-2144F-00-00 STAY, MUFFLER 3STAY, MUFFLER 3
-
3695024-08020-00 BOLT, FLANGE (SMALL HEAD)BOLT, FLANGE (SMALL HEAD)
-
3795024-08035-00 ...BOLT, FLG.(SMALL HEAD)...BOLT, FLG.(SMALL HEAD)
-
3890201-087G2-00 WASHER, PLATEWASHER, PLATE
-
392S3-14710-21-00 MUFFLER ASSY 1MUFFLER ASSY 1
-
405VY-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
413D8-14715-00-00 ...BAND, MUFFLER...BAND, MUFFLER
-
4295024-08035-00 ......BOLT, FLG.(SMALL HEAD)......BOLT, FLG.(SMALL HEAD)
-
432S3-14787-11-00 ...CAP, SILENCER...CAP, SILENCER
-
4490110-06274-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
452S3-14720-21-00 MUFFLER ASSY 2MUFFLER ASSY 2
-
465VY-14714-00-00 ...GASKET, MUFFLER...GASKET, MUFFLER
-
475VY-14715-00-00 ...BAND, MUFFLER...BAND, MUFFLER
-
4895024-08035-00 ......BOLT, FLG.(SMALL HEAD)......BOLT, FLG.(SMALL HEAD)
-
492S3-14787-11-00 ...CAP, SILENCER...CAP, SILENCER
-
5090110-06274-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
5191314-08040-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
522S3-27417-00-00 WASHER, FOOTRESTWASHER, FOOTREST
-
532S3-1473A-10-00 BODY, 3-1BODY, 3-1
-
542S3-1475P-00-00 ...SEAT...SEAT
-
552S3-1476P-00-00 ...SEAT...SEAT
-
562S3-1474A-10-00 BODY, 4-1BODY, 4-1
-
572S3-1477P-00-00 ...SEAT...SEAT
-
582S3-1478P-00-00 ...SEAT...SEAT
-
5992014-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
602S3-1133E-00-00 CABLE, PULLEY 1CABLE, PULLEY 1
-
612S3-1133F-00-00 CABLE, PULLEY 2CABLE, PULLEY 2
-
622C0-85820-00-00 SERVO MOTOR ASSYSERVO MOTOR ASSY
-
632C0-85821-00-00 ...PULLEY, DRIVE...PULLEY, DRIVE
-
6490110-05028-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
652S3-21637-00-00 CLAMP, WIRECLAMP, WIRE
-
6697702-50514-00 SCREW, TAPPINGSCREW, TAPPING
-
6790464-07209-00 CLAMPCLAMP
-
6890480-14005-00 GROMMETGROMMET
-
6990387-063E6-00 COLLARCOLLAR
-
7095022-06025-00 BOLT, FLANGEBOLT, FLANGE
-
7190201-06M31-00 WASHER, PLATEWASHER, PLATE
