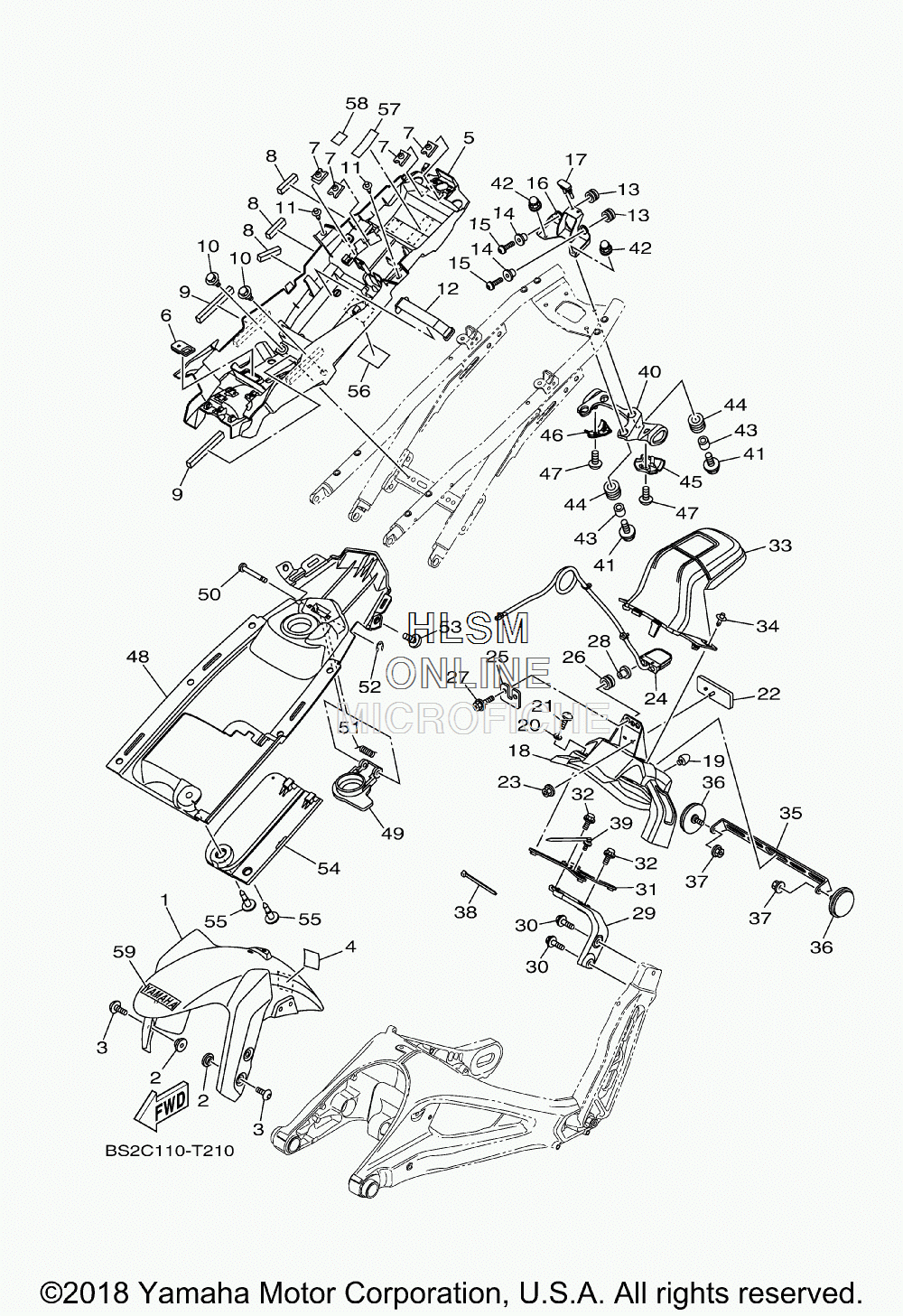

FENDER - FRONT / REAR для Yamaha MT09 - 2018 года выпуска`
-
№АртикулНазвание
-
11RC-21511-00-P2 FENDER, FRONT (VRC1 - VIVID RED)FENDER, FRONT (VRC1 - VIVID RED)
-
11RC-21511-00-P4 FENDER, FRONT (MNM3 - MAT GRAY)FENDER, FRONT (MNM3 - MAT GRAY)
-
11RC-21511-00-PA FENDER, FRONT (MDNM6 - MAT DARK GRAY)FENDER, FRONT (MDNM6 - MAT DARK GRAY)
-
290387-06153-00 COLLARCOLLAR
-
390110-06200-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
45UY-21269-00-00 SEALSEAL
-
5BS2-8212B-00-00 BOX, BATTERY 1BOX, BATTERY 1
-
62DR-26199-00-00 PLUG, BLINDPLUG, BLIND
-
790183-06069-00 NUT, SPRINGNUT, SPRING
-
85PS-28372-00-00 DAMPERDAMPER
-
932D-84553-00-00 DAMPERDAMPER
-
1090109-06202-00 BOLTBOLT
-
1190269-07007-00 RIVETRIVET
-
121RC-82137-00-00 BAND, BATTERYBAND, BATTERY
-
1390480-14052-00 GROMMETGROMMET
-
1490387-06288-00 COLLARCOLLAR
-
1592012-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
16BS2-2117E-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
17682-44532-00-00 STOPPER, UPPER MOUNTSTOPPER, UPPER MOUNT
-
18BS2-21629-01-00 GUARD, MUDGUARD, MUD
-
192MG-21639-00-00 DAMPER 2DAMPER 2
-
2090387-06372-00 COLLARCOLLAR
-
2190111-06061-00 BOLT,H EX. SOCKET BUTTONBOLT,H EX. SOCKET BUTTON
-
223Y6-85130-02-00 REAR REFLECTOR ASSYREAR REFLECTOR ASSY
-
2395602-05200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
24BS2-84745-00-00 LICENSE LIGHT UNIT ASSYLICENSE LIGHT UNIT ASSY
-
25BS2-21681-00-00 PLATE, LICENSEPLATE, LICENSE
-
2690480-11009-00 GROMMETGROMMET
-
2790159-05035-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
2890387-05003-00 COLLARCOLLAR
-
29BS2-21613-00-00 STAY, FENDER 1STAY, FENDER 1
-
3095817-08025-00 BOLT, FLANGEBOLT, FLANGE
-
31BS2-21614-00-00 STAY, FENDER 2STAY, FENDER 2
-
3295812-06014-00 BOLT, FLANGEBOLT, FLANGE
-
33BS2-2163A-00-00 COVER, REAR FENDER 1COVER, REAR FENDER 1
-
3490269-06008-00 RIVETRIVET
-
35BS2-84751-00-00 BRACKET, LICENSEBRACKET, LICENSE
-
36449-85131-02-00 REFLECTOR, REAR 1REFLECTOR, REAR 1
-
3795707-05500-00 NUT, FLANGENUT, FLANGE
-
3890464-16061-00 CLAMPCLAMP
-
3990464-30011-00 CLAMPCLAMP
-
40BS2-83318-00-00 STAY, FLASHER 1STAY, FLASHER 1
-
4190105-06169-00 BOLT, FLANGEBOLT, FLANGE
-
4290176-06016-00 NUT, CAPNUT, CAP
-
4390387-06260-00 COLLARCOLLAR
-
4490480-14003-00 GROMMETGROMMET
-
45BS2-283D3-00-00 COVER, FLASHER 1COVER, FLASHER 1
-
46BS2-283D4-00-00 COVER, FLASHER 2COVER, FLASHER 2
-
4797707-40012-00 SCREW, TAPPINGSCREW, TAPPING
-
48BS2-21651-00-00 COVER, REAR FENDERCOVER, REAR FENDER
-
491RC-2465B-00-00 CAP, ROTORCAP, ROTOR
-
5090249-03002-00 PINPIN
-
5190508-09007-00 SPRING, TORSIONSPRING, TORSION
-
5293430-02001-00 CIRCLIPCIRCLIP
-
5390167-05079-00 SCREW, TAPPINGSCREW, TAPPING
-
54BS2-2177E-00-00 LIDLID
-
5590269-07007-00 RIVETRIVET
-
5614B-21668-00-00 LABEL, TIRELABEL, TIRE
-
573JJ-28446-A1-00 LABEL, CAUTIONLABEL, CAUTION
-
583TB-24877-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
5999244-00080-00 EMBLEM, YAMAHA (VRC1 - VIVID RED)EMBLEM, YAMAHA (VRC1 - VIVID RED)
-
5999244-00080-00 EMBLEM, YAMAHA (MNM3 - MAT GRAY)EMBLEM, YAMAHA (MNM3 - MAT GRAY)
-
5999247-00080-00 EMBLEM, YAMAHA (MDNM6 - MAT DARK GRAY)EMBLEM, YAMAHA (MDNM6 - MAT DARK GRAY)
