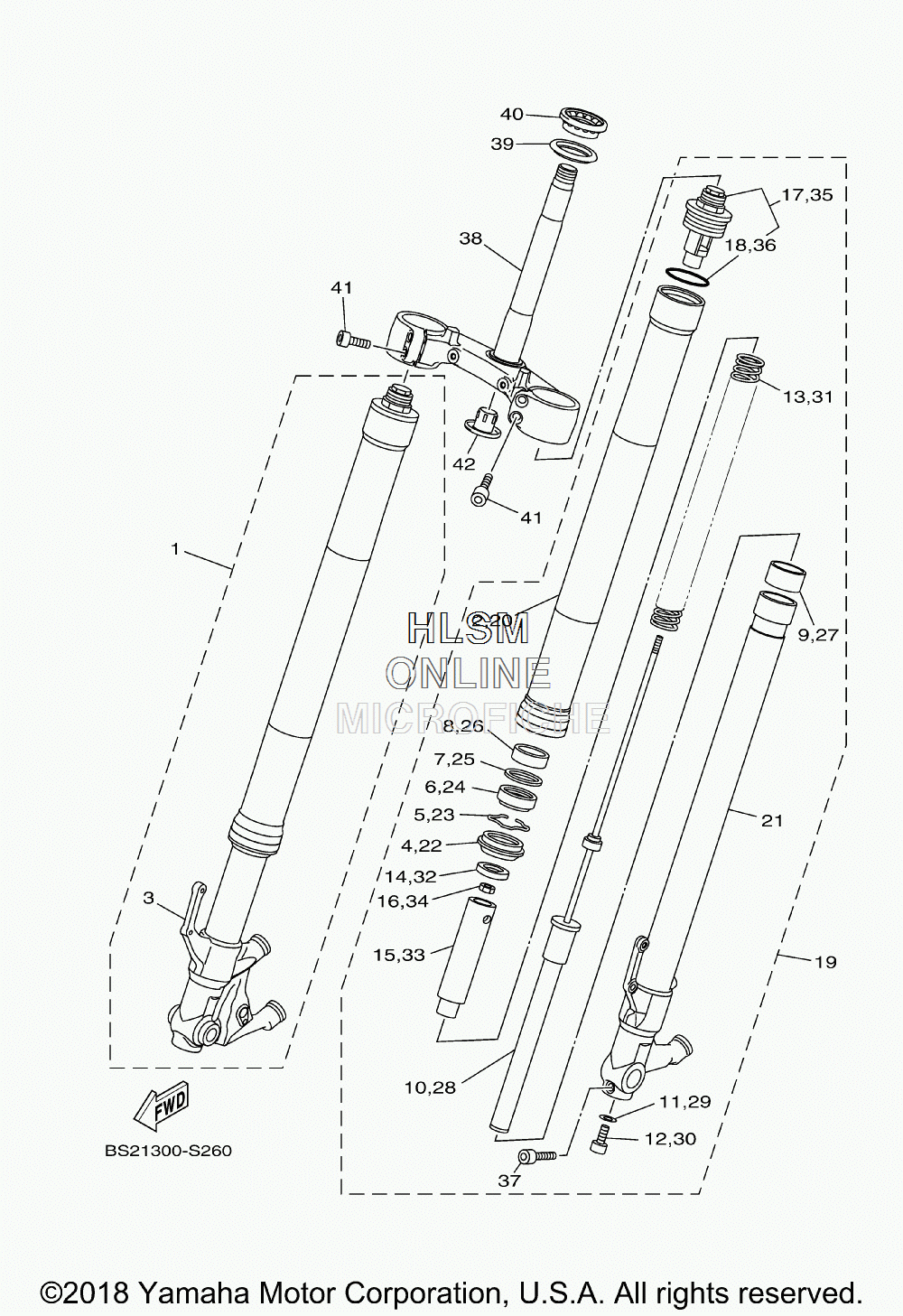

SUSPENSION - FRONT FORK для Yamaha MT09 - 2018 года выпуска`
-
№АртикулНазвание
-
1BS2-23103-00-00 FRONT FORK ASSY (R.H)FRONT FORK ASSY (R.H)
-
21RC-23126-40-00 ...TUBE, OUTER (L.H)...TUBE, OUTER (L.H)
-
3BS2-23120-00-00 ......INNER TUBE COMP. 2......INNER TUBE COMP. 2
-
44EB-23144-00-00 ...SEAL, DUST (INCL. IN FORK SEAL KIT)...SEAL, DUST (INCL. IN FORK SEAL KIT)
-
526H-23156-00-00 ...RING, SNAP...RING, SNAP
-
64EB-23145-01-00 ...OIL SEAL (INCL. IN FORK SEAL KIT)...OIL SEAL (INCL. IN FORK SEAL KIT)
-
736Y-23146-10-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
81RC-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
94FM-23171-40-00 ...METAL, SLIDE...METAL, SLIDE
-
10BS2-23170-10-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
11509-23158-L0-00 ...GASKET...GASKET
-
12278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
131RC-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
145VY-12277-00-00 ...WASHER...WASHER
-
151RC-23118-00-00 ...SPACER...SPACER
-
163LC-23357-00-00 ...NUT...NUT
-
17BS2-23111-10-00 ...BOLT, CAP...BOLT, CAP
-
183XJ-23147-L0-00 ......O-RING......O-RING
-
19BS2-23102-00-00 FRONT FORK ASSY (L.H)FRONT FORK ASSY (L.H)
-
201RC-23126-40-00 ...TUBE, OUTER (L.H)...TUBE, OUTER (L.H)
-
21BS2-23110-00-00 ......INNER TUBE COMP. 1......INNER TUBE COMP. 1
-
224EB-23144-00-00 ...SEAL, DUST (INCL. IN FORK SEAL KIT)...SEAL, DUST (INCL. IN FORK SEAL KIT)
-
2326H-23156-00-00 ...RING, SNAP...RING, SNAP
-
244EB-23145-01-00 ...OIL SEAL (INCL. IN FORK SEAL KIT)...OIL SEAL (INCL. IN FORK SEAL KIT)
-
2536Y-23146-10-00 ...WASHER, OIL SEAL...WASHER, OIL SEAL
-
261RC-23125-00-00 ...METAL, SLIDE 1...METAL, SLIDE 1
-
274FM-23171-40-00 ...METAL, SLIDE...METAL, SLIDE
-
28BS2-23170-00-00 ...CYLINDER COMP., FRONT FORK...CYLINDER COMP., FRONT FORK
-
29509-23158-L0-00 ...GASKET...GASKET
-
30278-23181-50-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
311RC-23141-00-00 ...SPRING, FRONT FORK...SPRING, FRONT FORK
-
325VY-12277-00-00 ...WASHER...WASHER
-
331RC-23118-00-00 ...SPACER...SPACER
-
343LC-23357-00-00 ...NUT...NUT
-
35BS2-23111-00-00 ...BOLT, CAP...BOLT, CAP
-
363XJ-23147-L0-00 ......O-RING......O-RING
-
3791314-08035-00 ...BOLT, HEXAGON SOCKET HEAD...BOLT, HEXAGON SOCKET HEAD
-
381RC-23340-11-00 UNDER BRACKET COMP.UNDER BRACKET COMP.
-
393FV-23462-00-00 SEAL, STEERINGSEAL, STEERING
-
4093399-99932-00 BEARINGBEARING
-
4191314-08030-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
424KM-23123-01-00 COVER, UNDER 1COVER, UNDER 1
-
434EB-W003B-00-00 FORK SEAL KITFORK SEAL KIT
