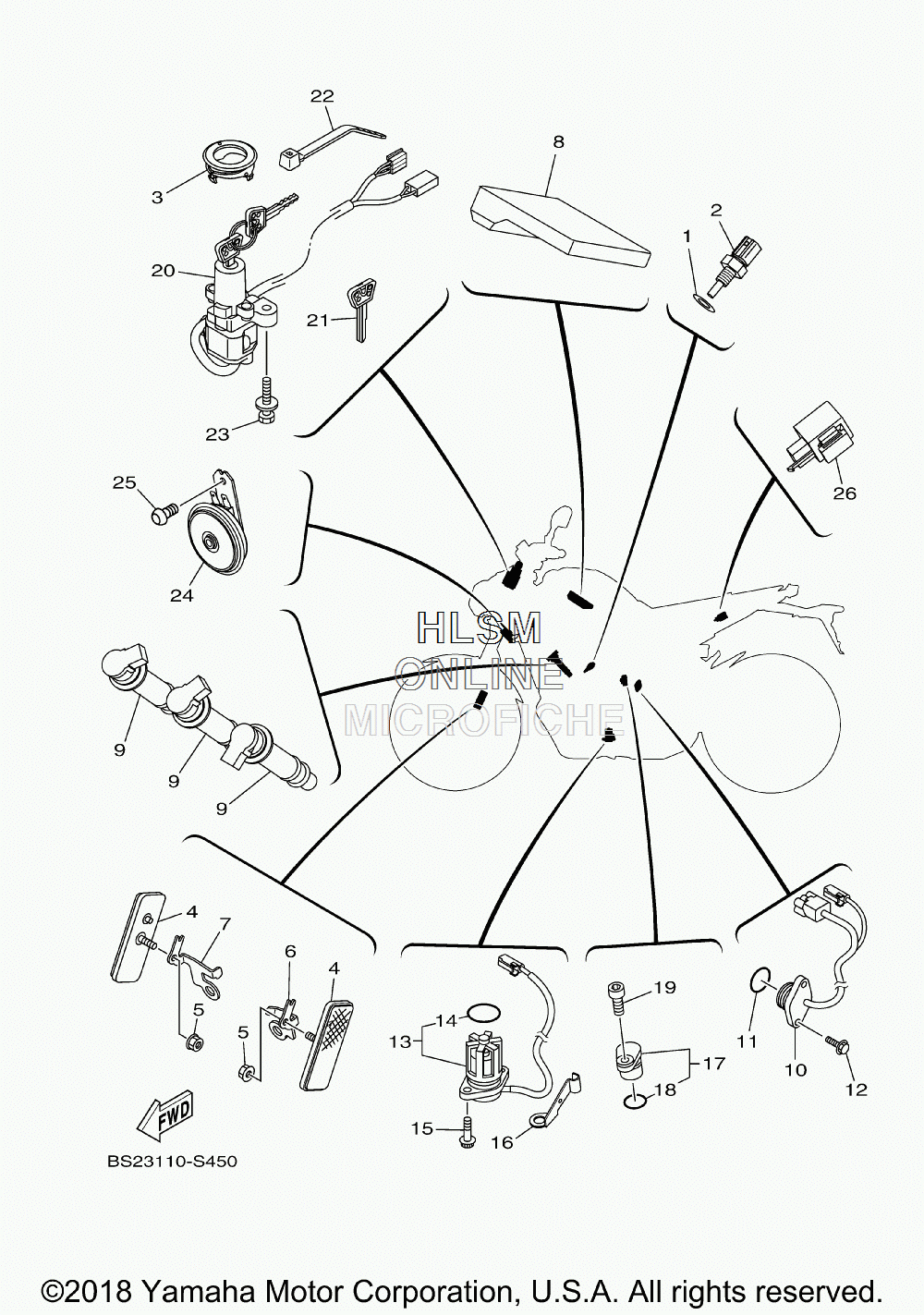

ELECTRICAL 2 для Yamaha MT09 - 2018 года выпуска`
-
№АртикулНазвание
-
190430-10004-00 GASKETGASKET
-
24P9-83591-00-00 THERMO UNITTHERMO UNIT
-
3B90-82552-00-00 CAP, SWITCHCAP, SWITCH
-
411H-85110-01-00 REFLECTOR ASSYREFLECTOR ASSY
-
595702-05500-00 NUT, FLANGENUT, FLANGE
-
61RC-85112-00-00 BRACKET, REFLECTOR 1BRACKET, REFLECTOR 1
-
71RC-85122-00-00 BRACKET, REFLECTOR 2BRACKET, REFLECTOR 2
-
8BS2-8591A-10-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
91RC-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
101RC-82540-00-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1193210-21001-00 O-RINGO-RING
-
1290110-05067-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
135S7-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
145VY-8A8E0-00-00 ...O-RING...O-RING
-
1595022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
1690465-08053-00 CLAMPCLAMP
-
173P6-15399-00-00 PLUG, BLINDPLUG, BLIND
-
1893210-15566-00 ...O-RING...O-RING
-
1990110-06161-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
20B90-82501-00-00 MAIN SWITCH STEERING LOCKMAIN SWITCH STEERING LOCK
-
214BH-82511-09-00 BLANK KEY (OPT)BLANK KEY (OPT)
-
2290464-14010-00 CLAMPCLAMP
-
2390109-08195-00 BOLTBOLT
-
24BS2-83371-00-00 HORNHORN
-
2592017-06010-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
264C8-83350-10-00 FLASHER RELAY ASSYFLASHER RELAY ASSY
