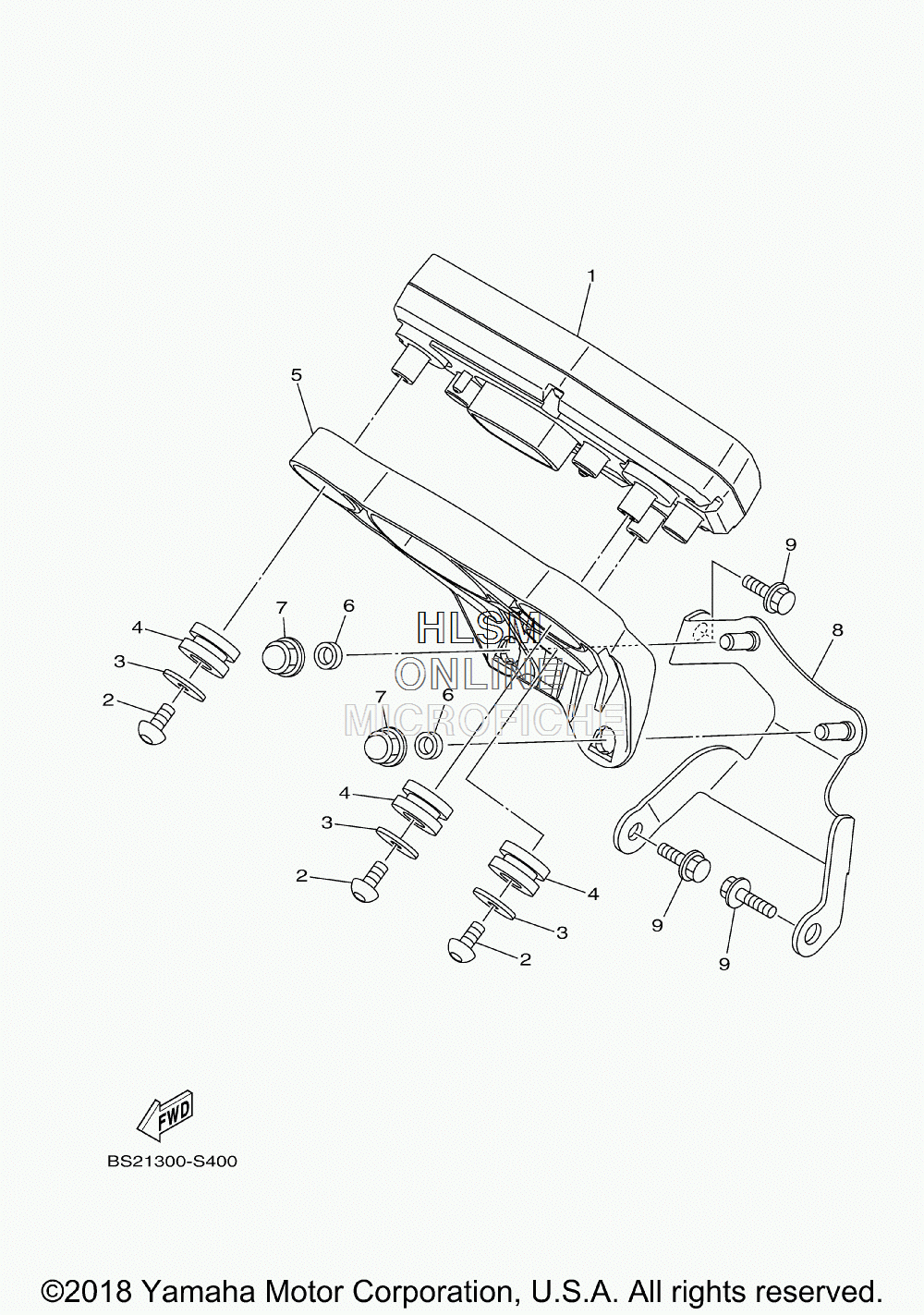

INSTRUMENT PANEL для Yamaha MT09 - 2018 года выпуска`
-
№АртикулНазвание
-
1BS2-83500-20-00 METER ASSYMETER ASSY
-
290160-05017-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
390201-05036-00 WASHER, PLATEWASHER, PLATE
-
44XV-83513-00-00 DAMPERDAMPER
-
5BS2-83559-00-00 COVER, METERCOVER, METER
-
690387-07015-00 COLLARCOLLAR
-
790176-06009-00 NUT, CROWNNUT, CROWN
-
8BS2-83519-00-00 BRACKET, METERBRACKET, METER
-
995027-06010-00 BOLT, FLANGEBOLT, FLANGE
